SRV1KI-E

SRV1KI-E
SRV1KI-E
SRV1KI-E
SRV1KI-E
SRV1KI-E
SRV1KI-E
SRV1KI-E
SRV1KI-E
SRV1KI-E
514.15€
Ex Tax: 424.92€
  • Stock: 2
  • Model: SRV1KI-E
  • UPC: 073130443685
  • JAN: 0731304436850
  • MPN: SRV1KI-E

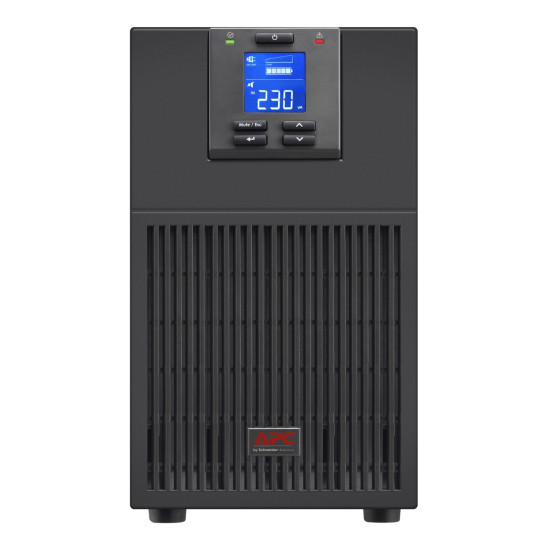

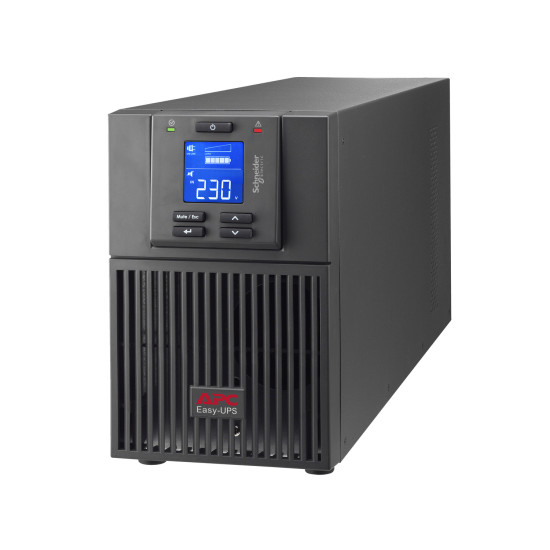

his APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV203. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Battery
Battery voltage 24 V
Battery technology Sealed Lead Acid (VRLA)
Battery life (max) 5 year(s)
Battery recharge time 4 h
Certificates
Certification CE UKCA TISI
Features
UPS topology Double-conversion (Online)
Output power capacity 1 kVA
Output power 900 W
Waveform Sine
Input operation voltage (min) 110 V
Input operation voltage (max) 285 V
Input frequency 40 - 70 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Output frequency 50/60 Hz
Efficiency 88%
Surge energy rating 945 J
Crest factor 3:1
Output voltage Total Harmonic Distortion (THD) 3%
ECO mode Yes
Noise level 50 dB
Heat dissipation 380 BTU/h
Surge protection Yes
Audible alarm(s) Yes
Audible alarm modes Low battery alarm, Overload alarm
Detachable power cord Yes
Power source type AC
Operational conditions
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -20 - 50 °C
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m

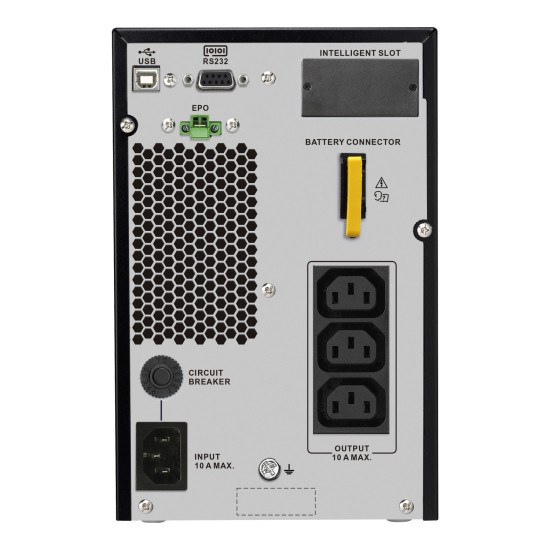

Ports & interfaces
Emergency Power Off (EPO) connector Yes
AC outlet types C13 coupler
RS-232 ports 1
Power plug C14 coupler
AC outlets quantity 3 AC outlet(s)
USB port Yes
USB port type USB Type-B
Weight & dimensions
Width 145 mm
Depth 288 mm
Height 223 mm
Weight 9.6 kg
Design
International Protection (IP) code IP20
Cable length 1.5 m
Form factor Tower
Product colour Black
Display type LCD
LED indicators Status
Control type Buttons
Packaging content
Manual Yes
Cables included Input power cable, Output power cable, RS-232, USB cable
Rack mount kit No
Packaging data
Package width 235 mm
Package depth 365 mm
Package height 330 mm
Package weight 10.9 kg
