SRV3KI








SRV3KI
1,118.02€
Ex Tax: 923.98€
- Stock: 3
- Model: SRV3KI
- UPC: 073130433797
- JAN: 0731304337973
- MPN: SRV3KI

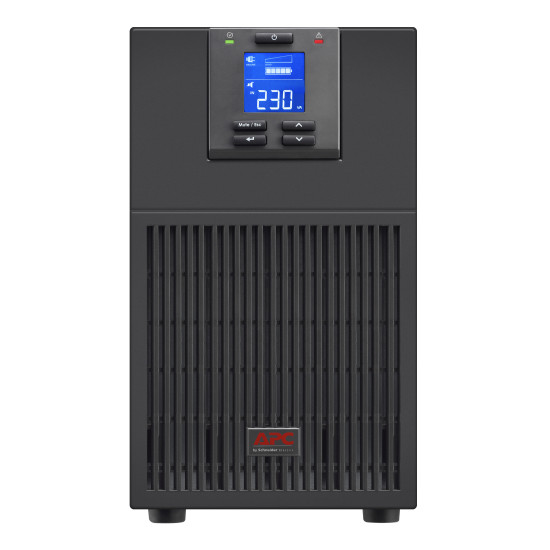

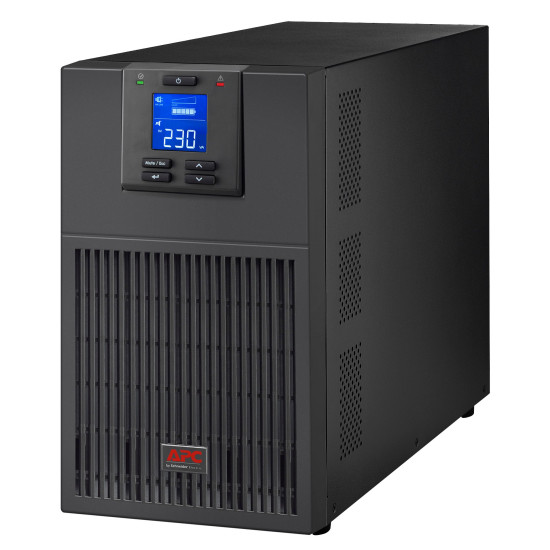

APC Easy UPS SRV 3000VA 230V
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Battery | |
Battery capacity | 9 Ah, 48 VAh |
Battery voltage | 12 V |
Number of batteries supported | 1 |
Battery recharge time | 4 h |
Features | |
UPS topology | Double-conversion (Online) |
Output power capacity | 3 kVA |
Output power | 2400 W |
Input operation voltage (min) | 110 V |
Input operation voltage (max) | 285 V |
Input frequency | 40 - 70 Hz |
Output operation voltage (min) | 220 V |
Output operation voltage (max) | 240 V |
Efficiency | 88% |
Emergency Power Off (EPO) | No |
Surge energy rating | 600 J |
Crest factor | 3:1 |
Socket circuit breaker | Yes |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -20 - 50 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 3000 m |
Non-operating altitude | 0 - 15000 m |

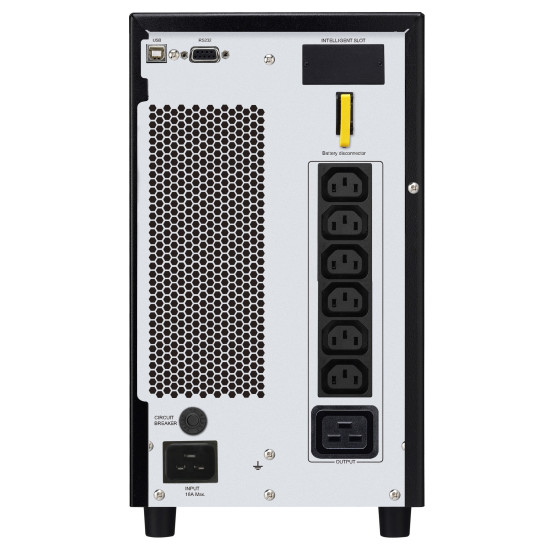

Ports & interfaces | |
AC outlet types | C13 coupler |
RS-232 ports | 1 |
Power plug | C19 coupler |
AC outlets quantity | 6 AC outlet(s) |
USB port | Yes |
Serial interface | Yes |
Serial interface type | RS-232 |
USB 2.0 ports quantity | 1 |
Weight & dimensions | |
Width | 190 mm |
Depth | 425 mm |
Height | 336 mm |
Weight | 26.8 kg |
Design | |
Form factor | Mini Tower |
Product colour | Black |
Display type | LCD |
Packaging content | |
Manual | Yes |
Cables included | Input power cable, Output power cable, RS-232, USB cable |
Packaging data | |
Package width | 325 mm |
Package depth | 565 mm |
Package height | 465 mm |
Package weight | 29 kg |
Warranty card | Yes |
Software CD | Yes |
Logistics data | |
Harmonized System (HS) code | 85078000 |
