Neomounts DS70-750BL1 Monitor arm 17-27" - gas spring

88.94€

Ex Tax: 73.50€

Stock: 2
Model: DS70-750BL1
UPC: 871737144919
JAN: 8717371449193
MPN: DS70-750BL1

Neomounts

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

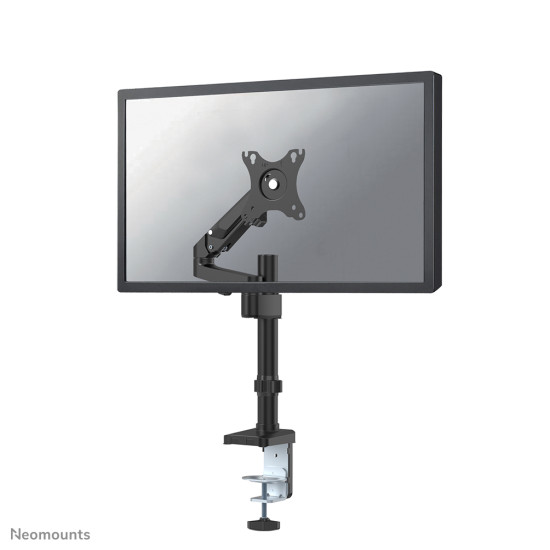

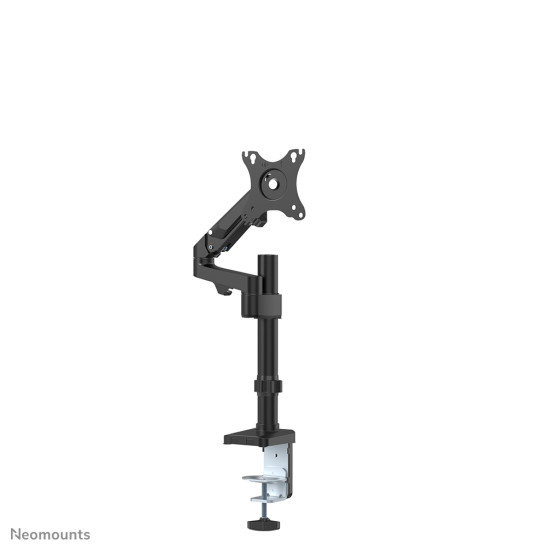

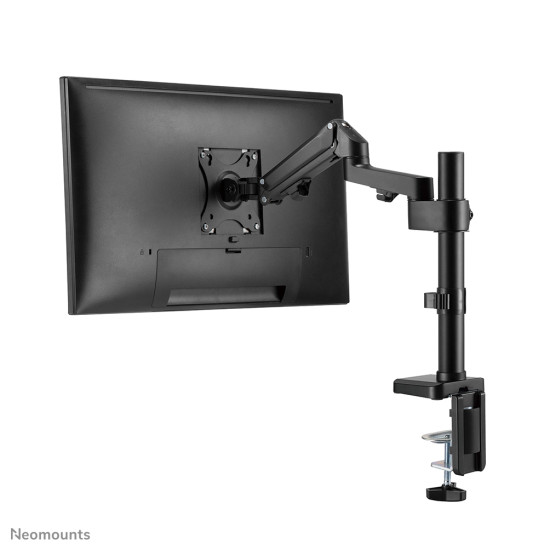

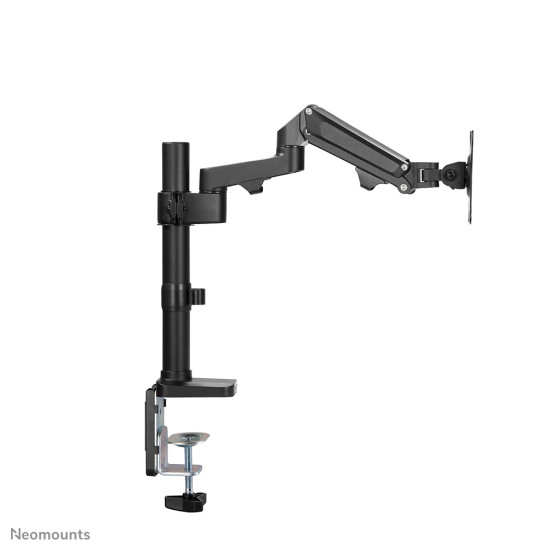

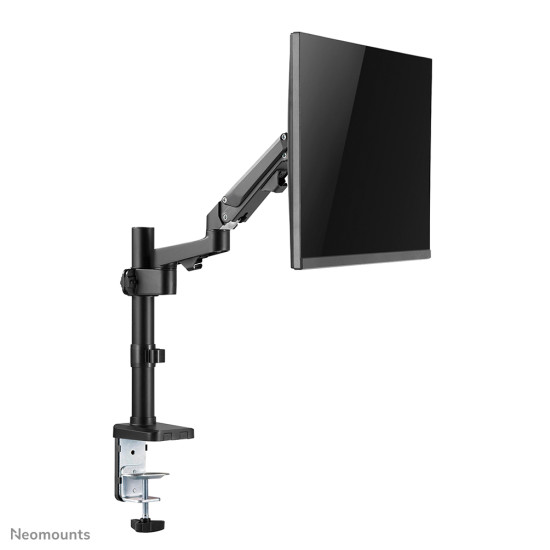

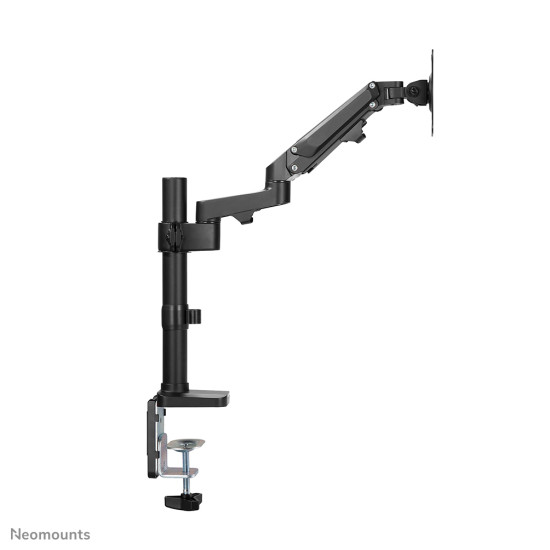

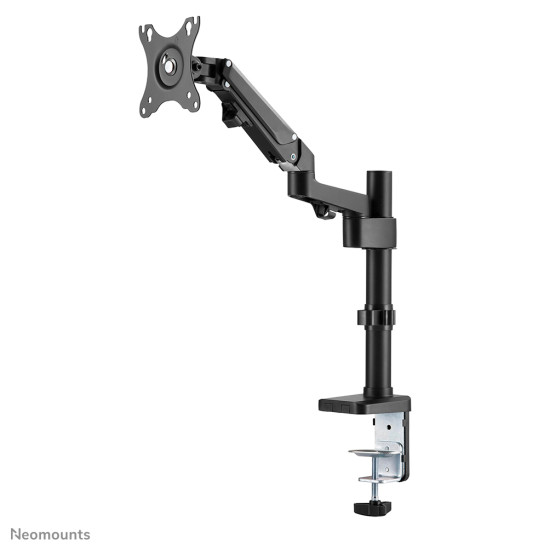

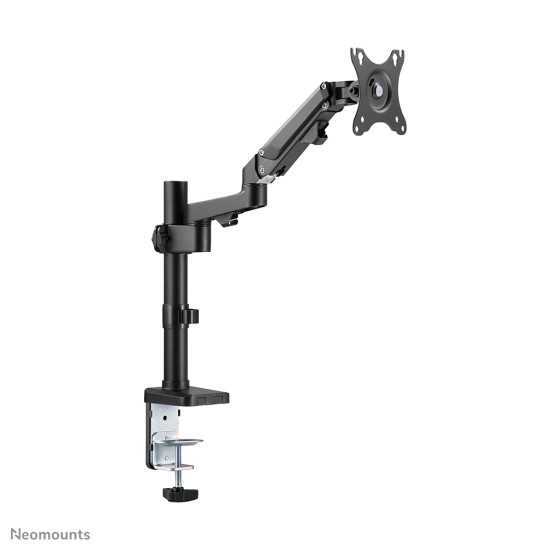

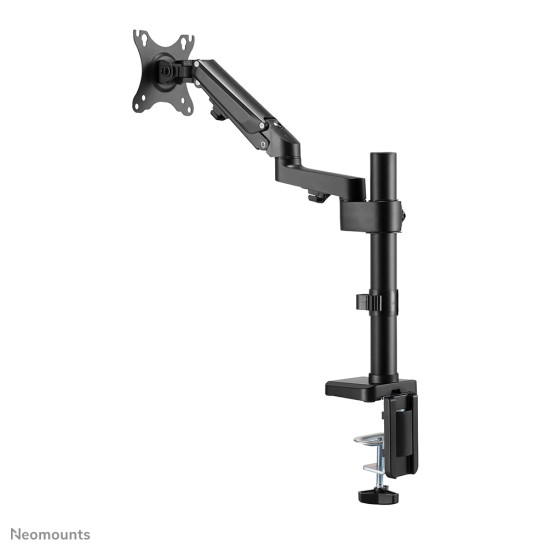

The Neomounts DS70-750BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (7,3-48,1 cm) and depth adjustment (0-37,8 cm), to create the perfect working position.

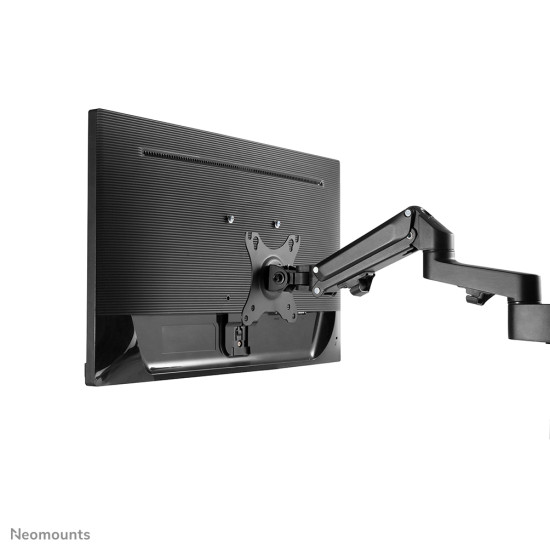

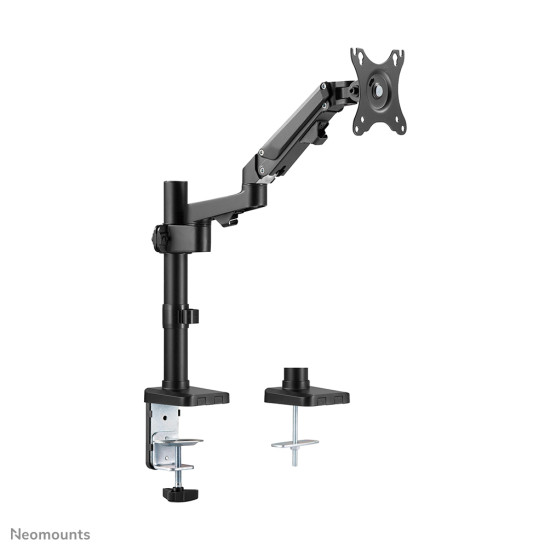

The DS70-750BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-750BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.

Mounting
Minimum screen size	43.2 cm (17")
Maximum weight capacity	7 kg
Maximum screen size	68.6 cm (27")
Maximum weight capacity (per curved/ultra-wide display)	7 kg

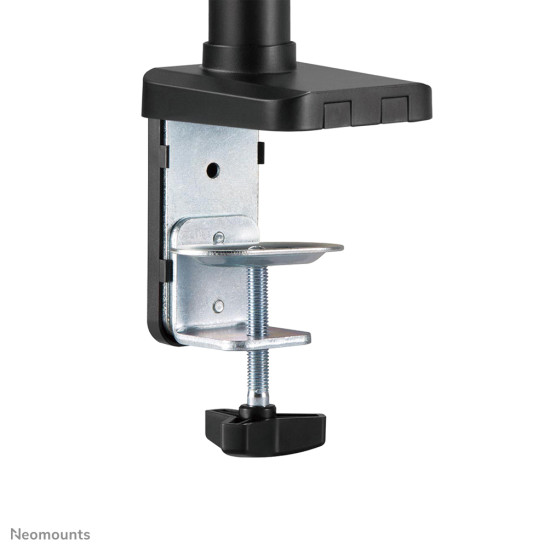

Mounting	Clamp/Grommet
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75,100 x 100 mm
Number of displays supported	1
Desk thickness (min)	1 cm
Mounting type	Desk
Desk thickness (max)	8.5 cm
Weight & dimensions
Width	117 mm
Depth	440 mm
Height	679 mm
Weight	2.54 kg
Design
Housing material	Steel
Orientation	Landscape/Portrait
Product colour	Black
Ergonomics
Height adjustment	Yes
Height adjustment type	Gas spring
Rotating	Yes
Height adjustment range	73 - 481 mm
Adjustable depth	Yes
Depth adjustment range	0 - 440 mm
Tilt angle range	-45 - 45°
Angle of rotation	360°

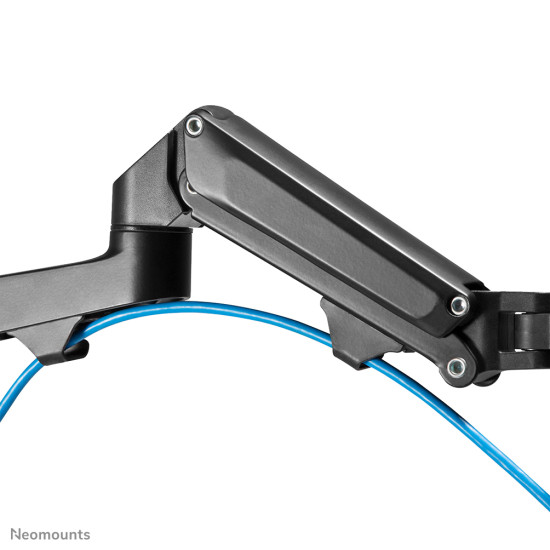

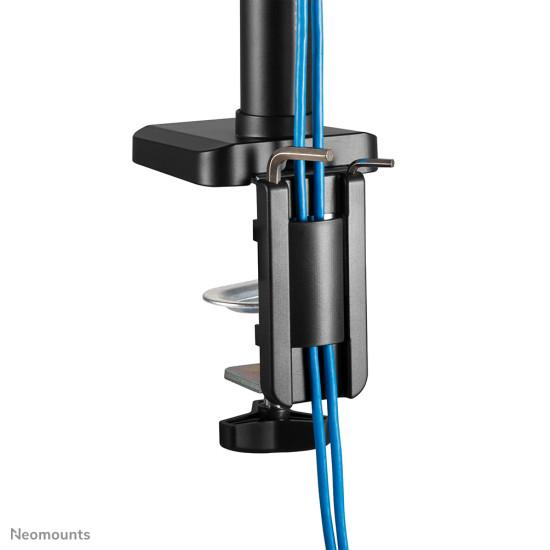

Cable management	Yes
Swivelling	Yes
Swivel angle range	-90 - 90°
Tilt adjustment	Yes
Packaging data
Package net weight	3.1 kg
Package width	240 mm
Package depth	116 mm
Package height	365 mm
Package weight	3.1 kg
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	7326909890
Master (outer) case net weight	15.2 kg
Master (outer) case width	495 mm
Master (outer) case length	380 mm
Master (outer) case height	365 mm
Master (outer) case gross weight	19.5 kg
Products per master (outer) case	6 pc(s)
Products per pallet (EU)	96 pc(s)
Country of origin	China
Other features
Width adjustment range	0 - 378 mm
Minimum weight	2 kg
