Neomounts FPMA-DTB200 Toolbar desk rail 10-24"






Neomounts FPMA-DTB200 Toolbar desk rail 10-24"
428.36€
Ex Tax: 354.02€
- Stock: 1
- Model: FPMA-DTB200
- UPC: 871737144227
- JAN: 8717371442279
- MPN: FPMA-DTB200

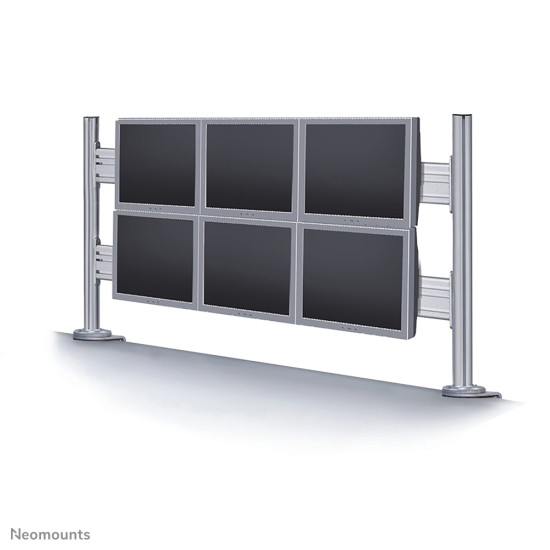

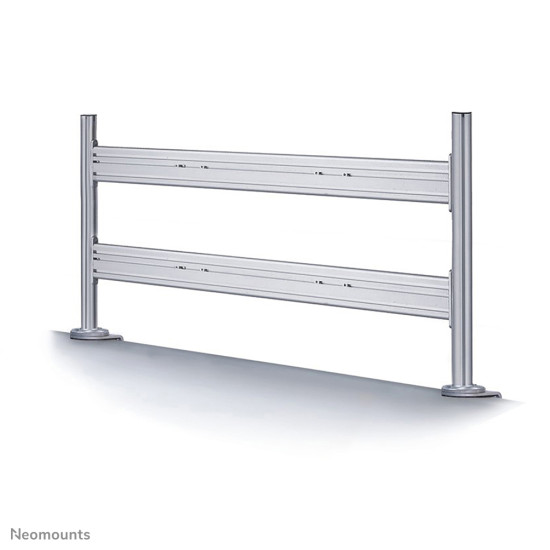

With the Neomounts FPMA-DTB200 toolbar desk rail, you can install up to 6 screens from 10-24" and maximum 10 kg per screen to the tabletop using a desk clamp. On the 130 cm wide toolbar, screens can easily be moved from left to right, utilizing the full functionality of the screens. The toolbar desk rail is supplied without monitor bracket; these should be ordered separately. Each screen requires one bracket.
There are various monitor brackets available that can be combined with the FPMA-DTB200 toolbar desk mount:
* The FPMA-DTBW100 monitor bracket is 8 cm deep and can both tilt and rotate. Its maximum capacity is 8 kg.
* The FPMA-DTBW200 monitor bracket is 12 cm deep and features a tilt, rotate and swivel option. The maximum capacity of this bracket is 10 kg.
Both monitor brackets are suitable for screens with a VESA hole pattern of 75x75 and 100x100 mm. FPMA-DTB200 toolbar desk mount features cable clips so cables can be easily and neatly routed.
There are various monitor brackets available that can be combined with the FPMA-DTB200 toolbar desk mount:
* The FPMA-DTBW100 monitor bracket is 8 cm deep and can both tilt and rotate. Its maximum capacity is 8 kg.
* The FPMA-DTBW200 monitor bracket is 12 cm deep and features a tilt, rotate and swivel option. The maximum capacity of this bracket is 10 kg.
Both monitor brackets are suitable for screens with a VESA hole pattern of 75x75 and 100x100 mm. FPMA-DTB200 toolbar desk mount features cable clips so cables can be easily and neatly routed.
Mounting | |
Minimum screen size | 25.4 cm (10") |
Maximum screen size | 61 cm (24") |
Maximum weight capacity (per display) | 10 kg |
Mounting | Clamp |
Minimum VESA mount | 75 x 75 mm |
Maximum VESA mount | 100 x 100 mm |
Panel mounting interface | 75 x 75,100 x 100 mm |
Number of displays supported | 6 |
Mounting type | Desk |
Weight & dimensions | |
Depth | 80 mm |
Height | 700 mm |
Weight | 9.8 kg |
Weight (max) | 10 kg |
Design | |
Housing material | Aluminium |
Product colour | Silver |
Ergonomics | |
Height adjustment | Yes |
Height adjustment type | Manual |
Height adjustment range | 0 - 700 mm |
Depth adjustment range | 0 - 80 mm |
Packaging data | |
Package width | 1360 mm |
Package depth | 170 mm |
Package height | 170 mm |
Package weight | 9.8 kg |
Logistics data | |
Harmonized System (HS) code | 83025000 |
Master (outer) case net weight | 9.8 kg |
Master (outer) case width | 1360 mm |
Master (outer) case length | 170 mm |
Master (outer) case height | 170 mm |
Master (outer) case gross weight | 10.8 kg |
Products per master (outer) case | 1 pc(s) |
Products per pallet (EU) | 20 pc(s) |
Country of origin | Taiwan |
Other features | |
Mounting interface | VESA 75x75 mm |
