Neomounts FPMA-HAW200 Medical monitor arm wall 10-27" - h 0-149 cm - gas spring

Neomounts FPMA-HAW200 Medical monitor arm wall 10-27" - h 0-149 cm - gas spring
Neomounts FPMA-HAW200 Medical monitor arm wall 10-27" - h 0-149 cm - gas spring
Neomounts FPMA-HAW200 Medical monitor arm wall 10-27" - h 0-149 cm - gas spring
Neomounts FPMA-HAW200 Medical monitor arm wall 10-27" - h 0-149 cm - gas spring
Neomounts FPMA-HAW200 Medical monitor arm wall 10-27" - h 0-149 cm - gas spring
Neomounts FPMA-HAW200 Medical monitor arm wall 10-27" - h 0-149 cm - gas spring
Neomounts FPMA-HAW200 Medical monitor arm wall 10-27" - h 0-149 cm - gas spring
Neomounts FPMA-HAW200 Medical monitor arm wall 10-27" - h 0-149 cm - gas spring
Neomounts FPMA-HAW200 Medical monitor arm wall 10-27" - h 0-149 cm - gas spring
931.47€
Ex Tax: 769.81€
  • Stock: 1
  • Model: FPMA-HAW200
  • UPC: 871737144431
  • JAN: 8717371444310
  • MPN: FPMA-HAW200

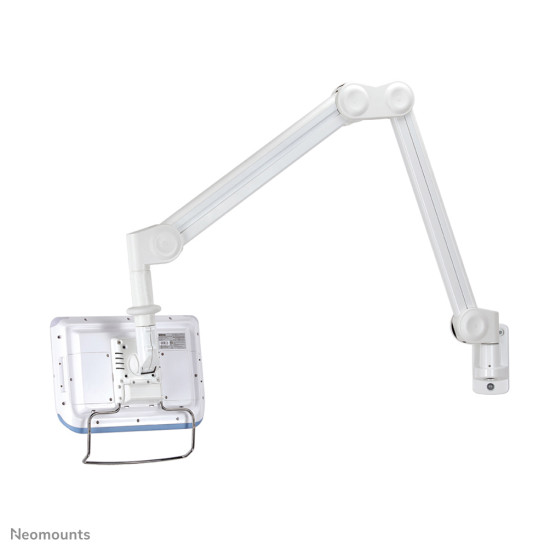

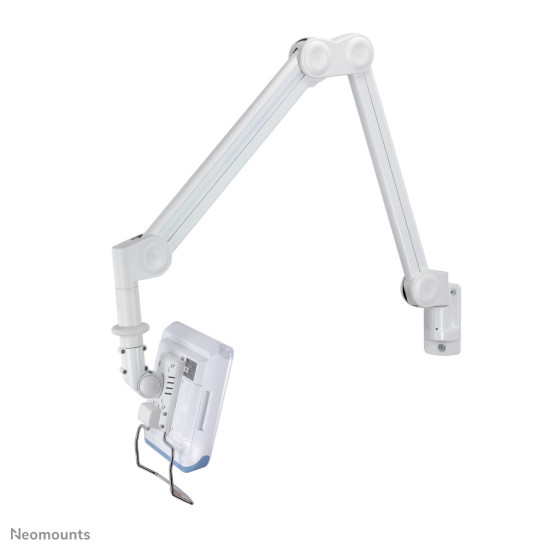

The Neomounts wall mount, model FPMA-HAW200 is a tilt- and swivel wall mount for medical flat screens up to 27". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.

Neomounts versatile tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 149 centimetres using a gas spring. Depth adjustable from 0 to 149 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-HAW200 has two pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 7 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

All installation material is included with the product.
Mounting
Minimum screen size 25.4 cm (10")
Maximum weight capacity 7 kg
Maximum screen size 68.6 cm (27")
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 100 x 100 mm
Panel mounting interface 75 x 75,100 x 100 mm
Distance to the wall (max) 149 cm
Number of displays supported 1
Distance to the wall (min) 0 mm
Mounting type Wall

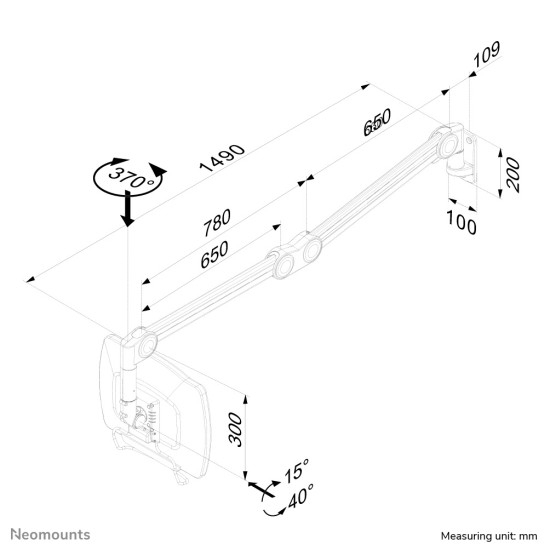

Weight & dimensions
Depth 1490 mm
Height 1490 mm
Weight 8.55 kg
Design
Housing material Aluminium
Product colour White
Ergonomics
Height adjustment Yes
Height adjustment type Gas spring
Rotating Yes
Height adjustment range 0 - 1490 mm
Depth adjustment range 0 - 1490 mm
Tilt angle range 0 - 55°
Swivel angle 370°
Cable management Yes
Swivelling Yes
Tilt adjustment Yes
Packaging data
Package net weight 8.55 kg
Package width 1150 mm
Package depth 160 mm
Package height 430 mm
Package weight 8.6 kg
Logistics data
Harmonized System (HS) code 83025000
Master (outer) case net weight 8.6 kg
Master (outer) case width 1150 mm
Master (outer) case length 160 mm
Master (outer) case height 430 mm
Master (outer) case gross weight 12.2 kg
Products per master (outer) case 1 pc(s)
Products per pallet (EU) 12 pc(s)
Country of origin Taiwan
Other features
Minimum weight 1 kg
