Neomounts FPMA-HAW050 Medical TV mount wall 10-40" - full motion

Neomounts FPMA-HAW050 Medical TV mount wall 10-40" - full motion
Neomounts FPMA-HAW050 Medical TV mount wall 10-40" - full motion
Neomounts FPMA-HAW050 Medical TV mount wall 10-40" - full motion
Neomounts FPMA-HAW050 Medical TV mount wall 10-40" - full motion
Neomounts FPMA-HAW050 Medical TV mount wall 10-40" - full motion
Neomounts FPMA-HAW050 Medical TV mount wall 10-40" - full motion
Neomounts FPMA-HAW050 Medical TV mount wall 10-40" - full motion
283.52€
Ex Tax: 234.31€
  • Stock: 2
  • Model: FPMA-HAW050
  • Dimensions: 0.00cm x 0.00cm x 10.00cm
  • UPC: 871737144692
  • JAN: 8717371446925
  • MPN: FPMA-HAW050

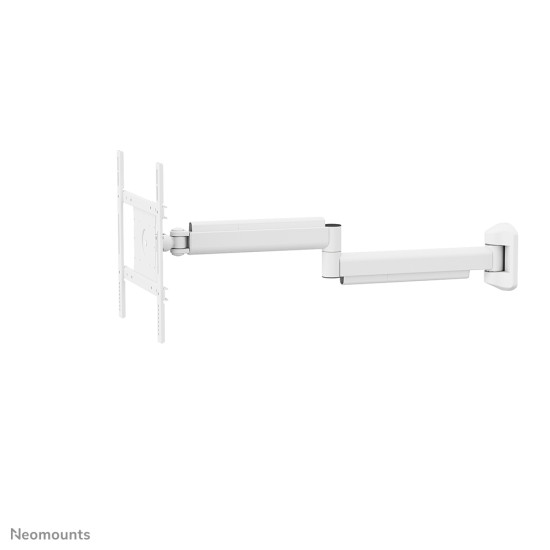

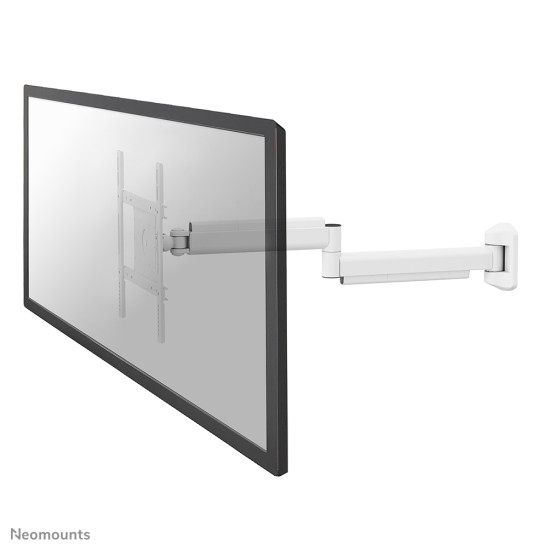

The Neomounts wall mount, model FPMA-HAW050 is a tilt-, turn- and swivel wall mount for medical flat screens up to 40". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.

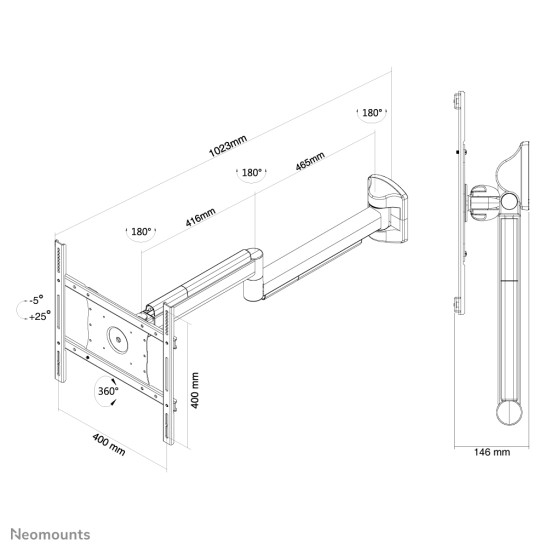

Neomounts' unique tilt (30°), turn (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily depth adjustable from 15 to 102 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-HAW050 has three pivot points and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 10 kg. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

All installation material is included with the product.
Mounting
Minimum screen size 25.4 cm (10")
Maximum weight capacity 10 kg
Maximum screen size 101.6 cm (40")
Minimum VESA mount 100 x 100 mm
Maximum VESA mount 400 x 400 mm
Depth (min) 15 cm
Panel mounting interface 100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400
Number of displays supported 1
Mounting type Wall
Weight & dimensions
Weight 8.97 kg
Design
Housing material Steel
Product colour White
Ergonomics
Rotating Yes
Adjustable depth Yes
Depth adjustment range 150 - 1020 mm
Number of pivot points 3
Tilt angle range 0 - 30°
Swivel angle 180°
Angle of rotation 360°
Cable management Yes
Swivelling Yes
Tilt adjustment Yes
Packaging data
Package net weight 10 kg
Package width 580 mm
Package depth 310 mm
Package height 200 mm
Package weight 10 kg
Logistics data
Harmonized System (HS) code 7326909890
Master (outer) case net weight 10 kg
Master (outer) case width 310 mm
Master (outer) case length 200 mm
Master (outer) case height 580 mm
Master (outer) case gross weight 10 kg
Products per master (outer) case 1 pc(s)
Products per pallet (EU) 50 pc(s)
Country of origin Taiwan
Other features
Depth (max) 102 cm
