Neomounts WL30S-910BL16 TV pillar mount 40-75" - fixed - lockable - diam. 25-100 cm - portrait

145.72€

Ex Tax: 120.43€

Stock: 10
Model: WL30S-910BL16
UPC: 871737144952
JAN: 8717371449520
MPN: WL30S-910BL16

Neomounts

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

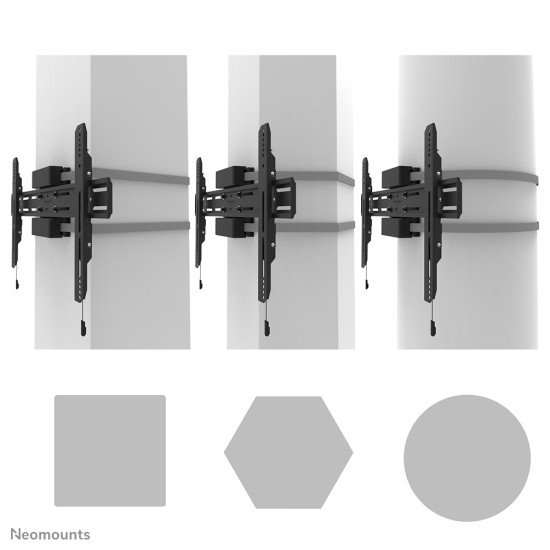

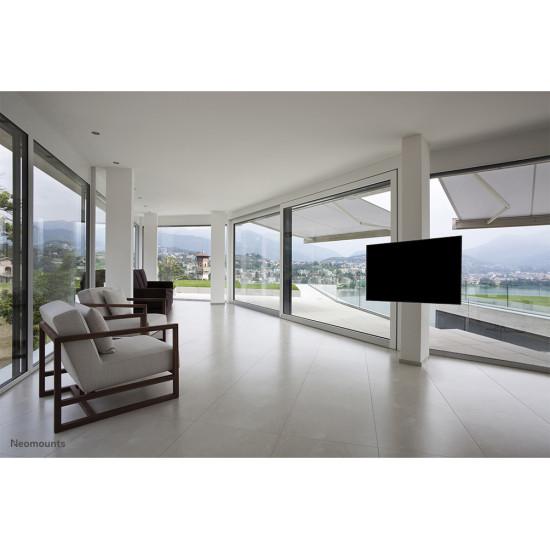

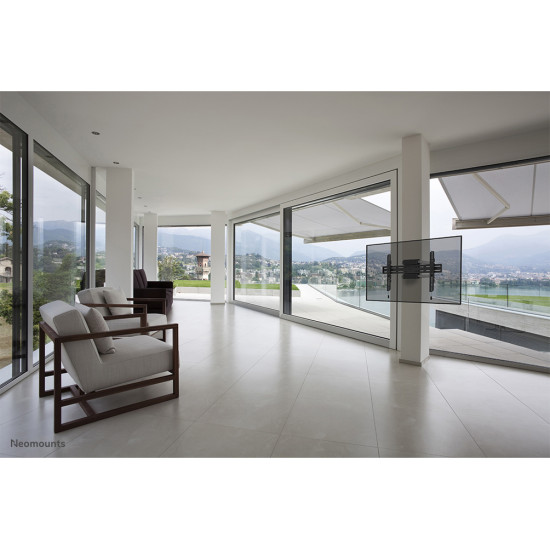

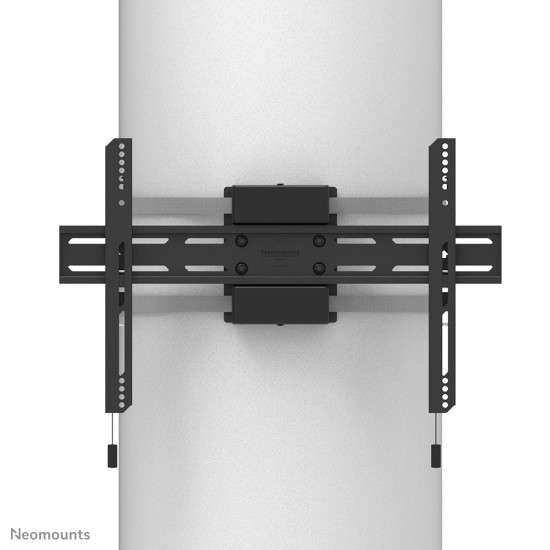

The Neomounts WL30S-910BL16 is a fixed pillar mount for screens up to 75" with a maximum weight capacity of 50 kg. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Individual bracket height and level adjustment are available for the perfect installation.

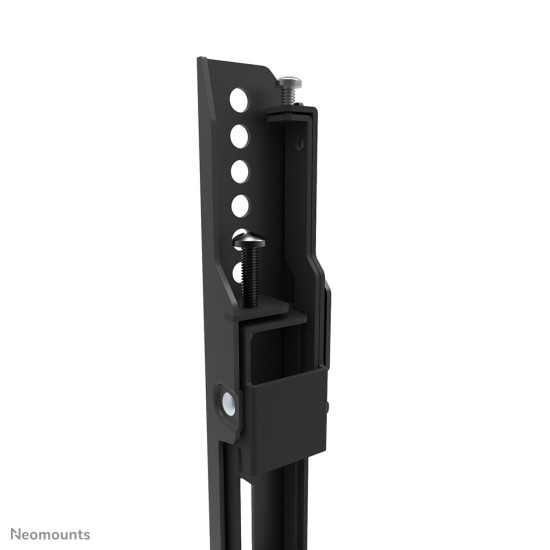

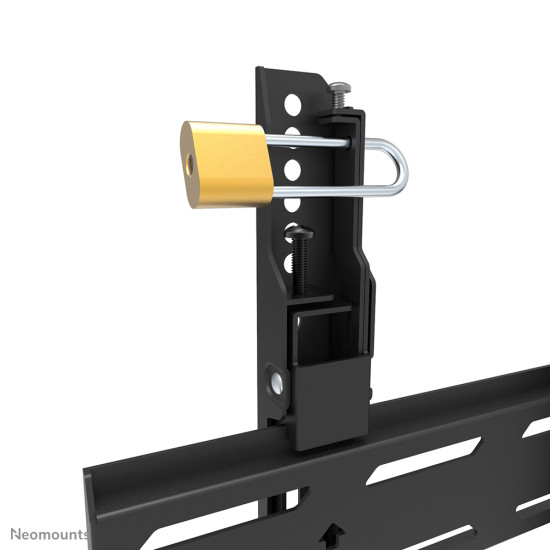

The WL30S-910BL16 has a depth of 6,7 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm and can be locked if required with the anti-theft screw provided or with a padlock (not included).

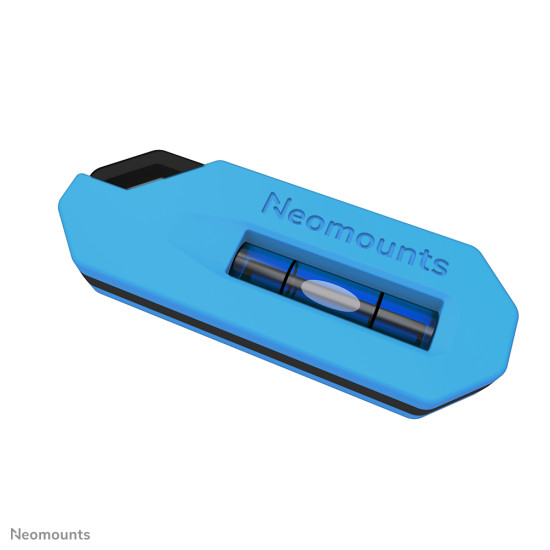

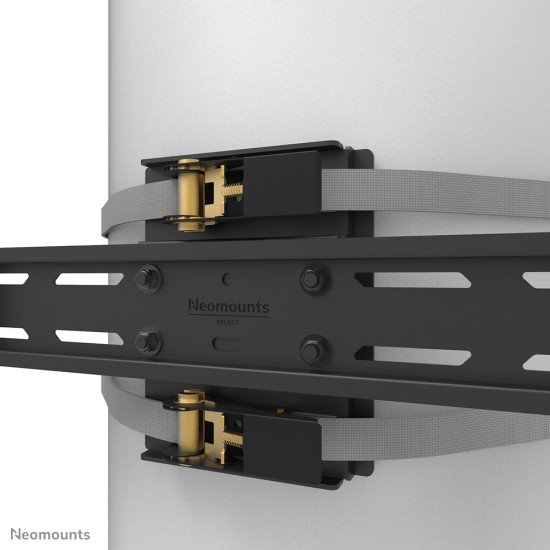

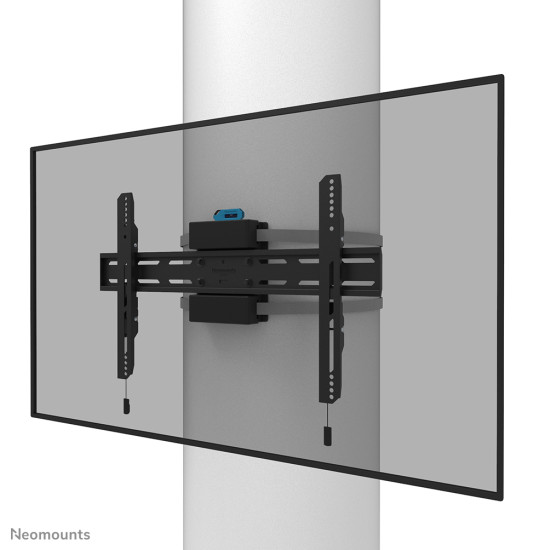

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.

Mounting
Minimum screen size	101.6 cm (40")
Maximum weight capacity	50 kg
Maximum screen size	190.5 cm (75")
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	400 x 400,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,300 x 100,350 x 350,400 x 200
Number of displays supported	1
Mounting type	Pole
Technical details
Country of origin	China
Warranty period	5 year(s)
Compatible pole diameter (min)	25 cm
Package net weight	5.3 kg
Compatible pole diameter (max)	100 cm
Lockable	Security screw included
Weight & dimensions

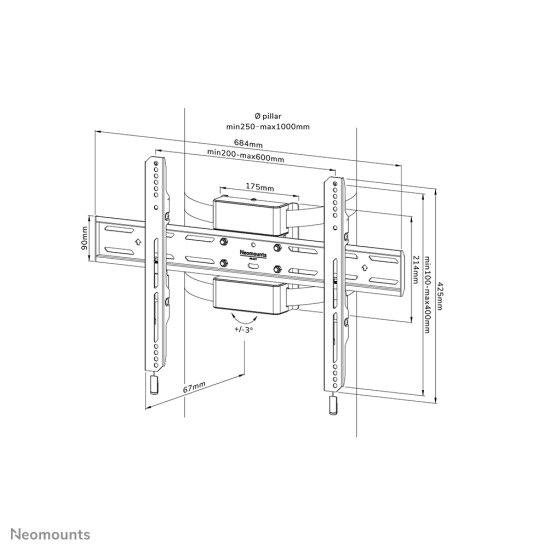

Width	684 mm
Depth	67 mm
Height	425 mm
Weight	4.2 kg
Design
Housing material	Steel
Accepts padlock	Yes
Product colour	Black
Ergonomics
Distance to the wall (max)	6.7 cm
Type	Fixed
Angle of rotation	6°
Cable management	No

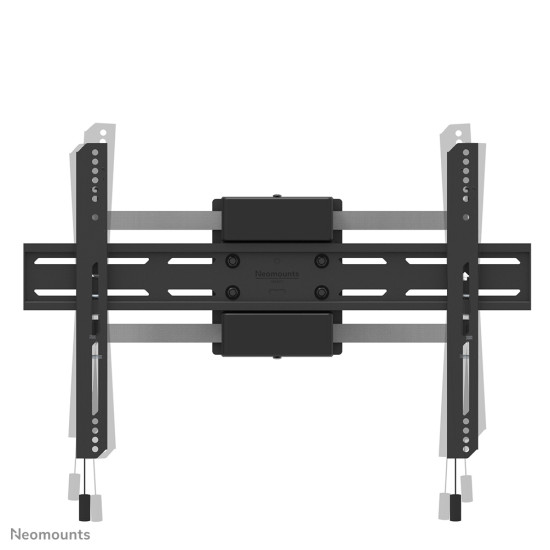

Pivot angle	-3 - 3°
Packaging data
Package width	238 mm
Package depth	74 mm
Package height	900 mm
Package weight	5.3 kg
Logistics data
Harmonized System (HS) code	7326909890
Master (outer) case net weight	16.8 kg
Master (outer) case width	315 mm
Master (outer) case length	258 mm
Master (outer) case height	920 mm
Master (outer) case gross weight	21.7 kg
Products per master (outer) case	4 pc(s)
Products per pallet (EU)	48 pc(s)
