Neomounts WL95-800BL1 Videowall wall mount 42-70" - pop-out - max 35 kg

150.86€

Ex Tax: 124.68€

Stock: 11
Model: WL95-800BL1
UPC: 871737144054
JAN: 8717371440541
MPN: WL95-800BL1

Neomounts

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

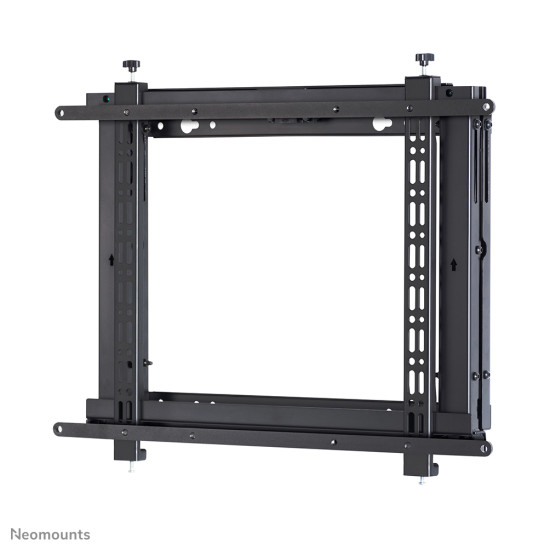

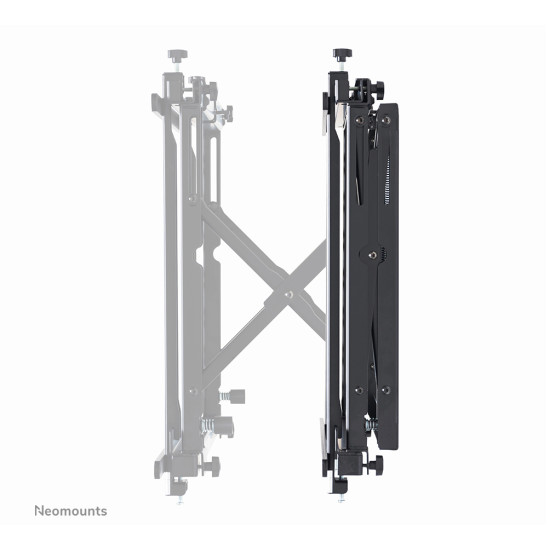

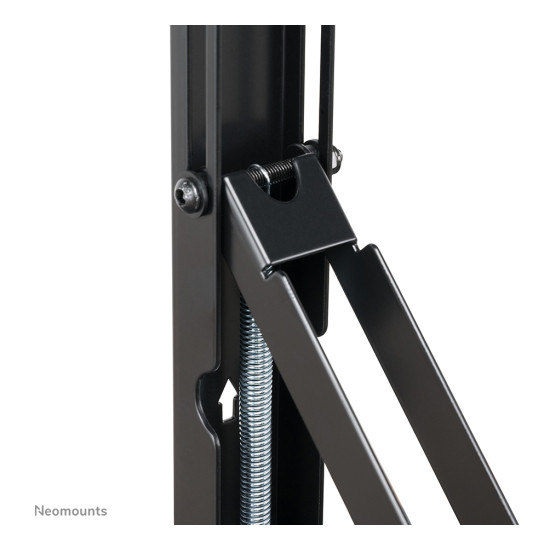

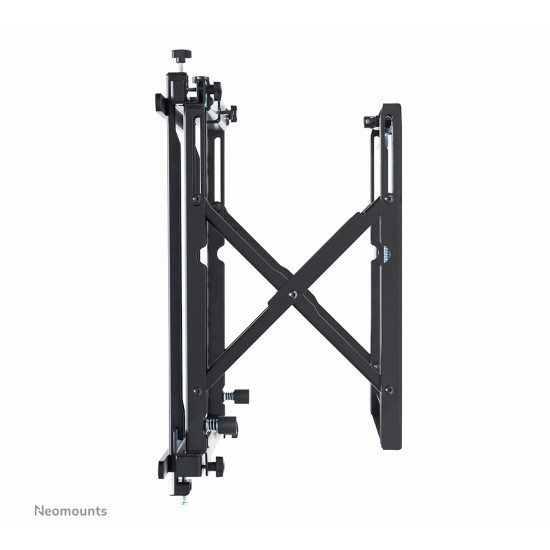

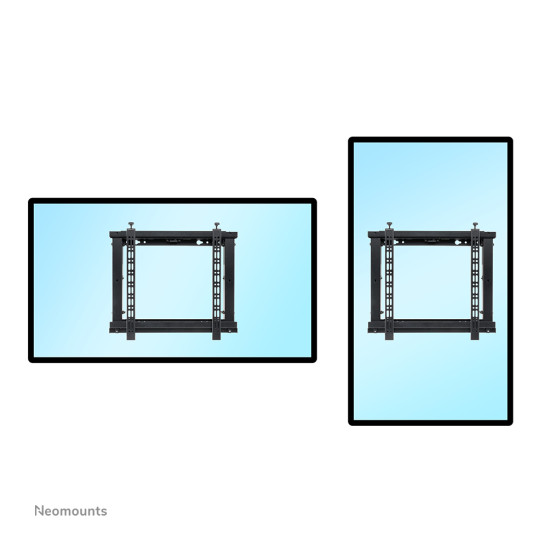

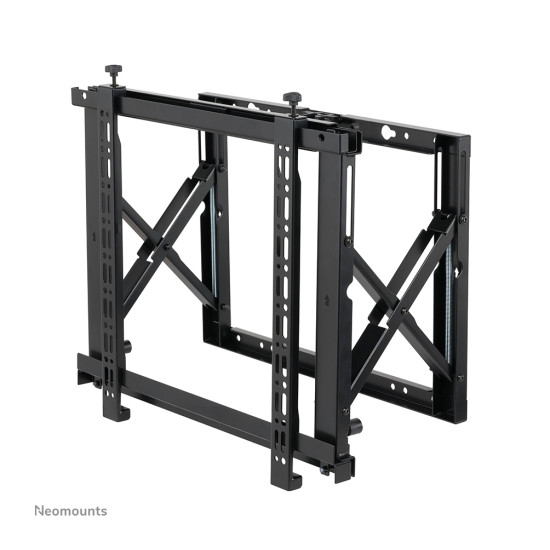

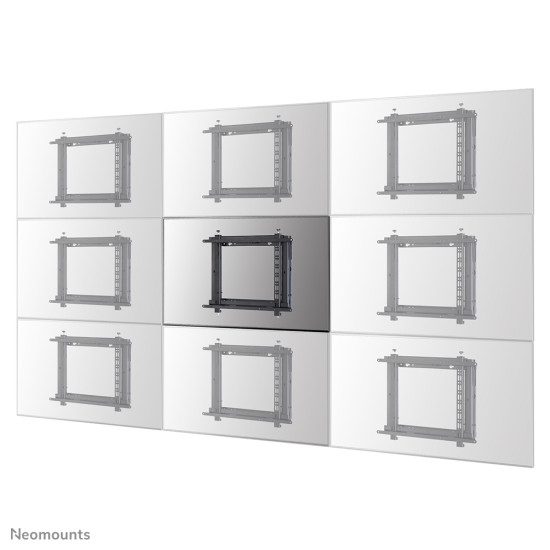

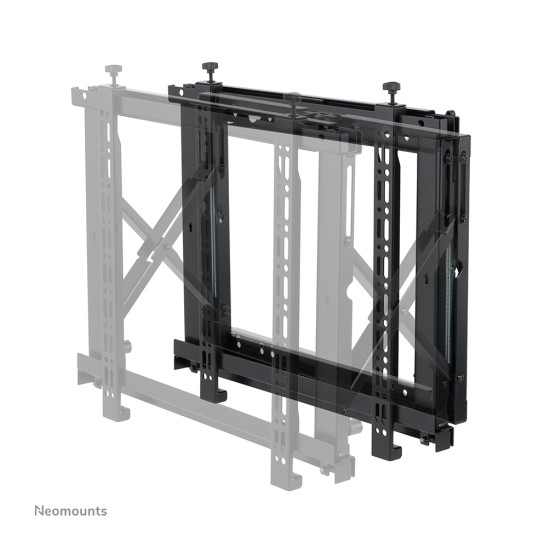

The Neomounts WL95-800BL1 is a push to pop out video wall mount for screens up to 70". The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.

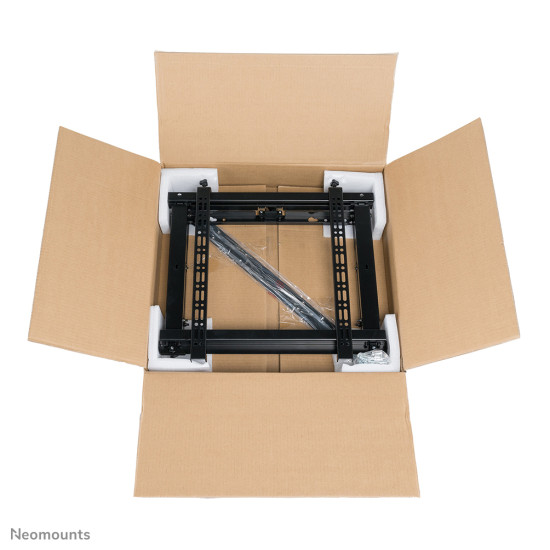

The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.

Mounting
Minimum screen size	106.7 cm (42")
Maximum weight capacity	35 kg
Maximum screen size	177.8 cm (70")
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 200,200 x 400,400 x 400,400 x 600,200 x 300,300 x 300,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,300 x 100,350 x 350,400 x 200
Number of displays supported	1
Mounting type	Wall
Technical details
Orientation	Landscape/Portrait
Warranty period	5 year(s)
Package net weight	9.8 kg
Easy to install	Yes

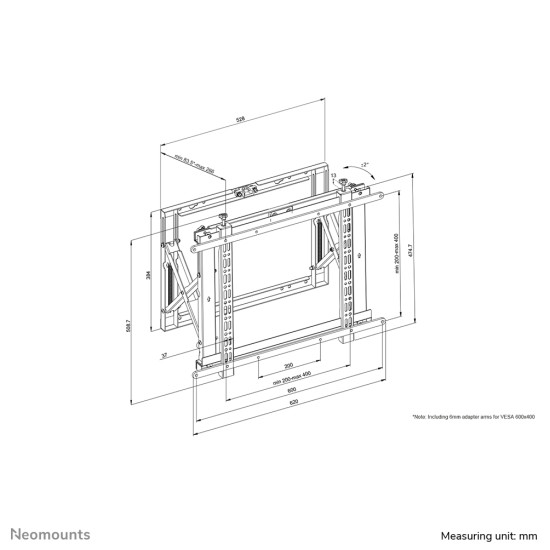

Weight & dimensions
Width	620 mm
Depth	84 mm
Height	510 mm
Weight	7.72 kg
Design
Housing material	Steel
Accepts padlock	No
Product colour	Black
Ergonomics
Distance to the wall (max)	17.2 cm
Distance to the wall (min)	7.8 cm
Height adjustment	Yes, 1.3 cm
Height adjustment type	Manual
Depth adjustment	4 mm
Cable management	No
Width adjustment	4 cm
Swivelling	Yes
Tilt adjustment	Yes
Packaging data
Package width	570 mm
Package depth	110 mm
Package height	620 mm
Package weight	9.8 kg
Package type	Box
Logistics data
Harmonized System (HS) code	7326909890
Master (outer) case net weight	8.5 kg
Master (outer) case width	570 mm
Master (outer) case length	110 mm
Master (outer) case height	620 mm
Master (outer) case gross weight	9.8 kg
Products per master (outer) case	1 pc(s)
Quantity per master (outer) case	1 pc(s)
Products per pallet (EU)	24 pc(s)
Other features
Country of origin	China

Tags: Signage Display Mounts
