Neomounts DS70S-950BL1 Monitor arm 17-49" - gas spring - Topfix - 180°-stop












































Neomounts DS70S-950BL1 Monitor arm 17-49" - gas spring - Topfix - 180°-stop
205.59€
Ex Tax: 169.91€
- Stock: 8
- Model: DS70S-950BL1
- UPC: 871737144121
- JAN: 8717371441210
- MPN: DS70S-950BL1

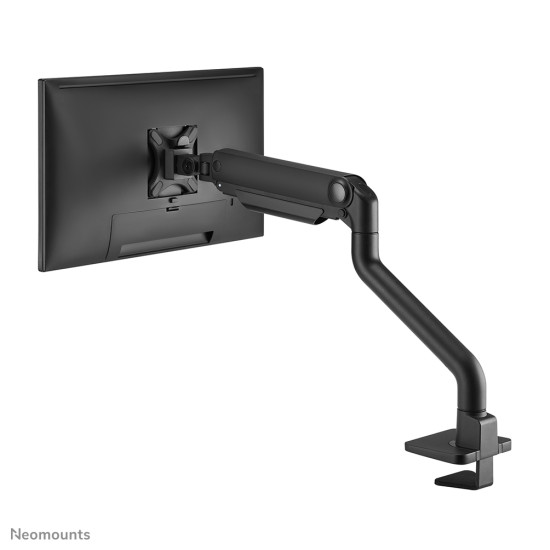

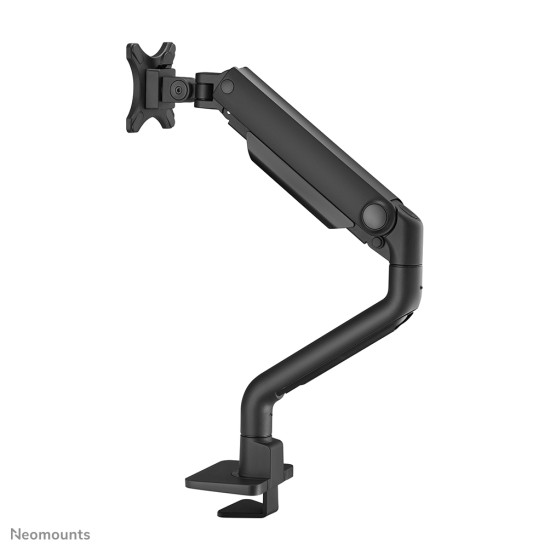

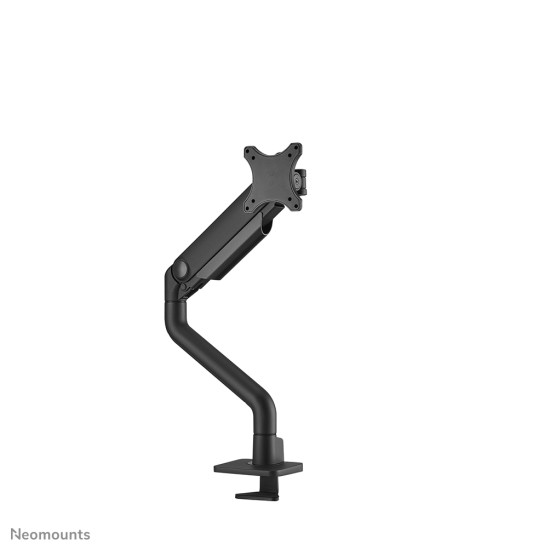

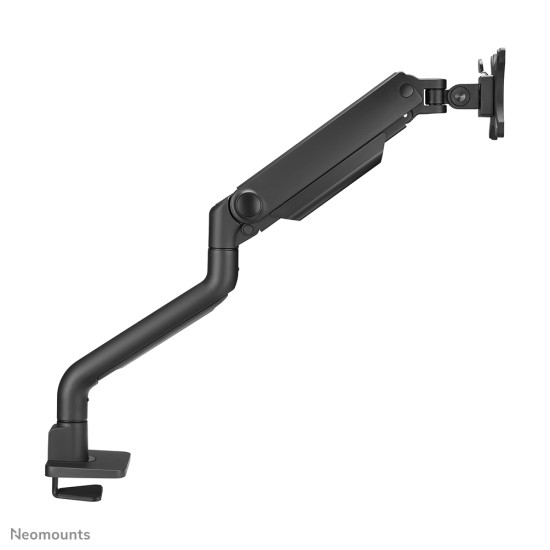

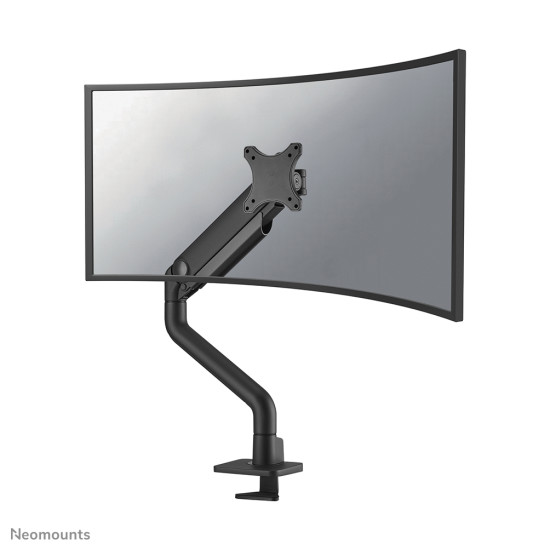

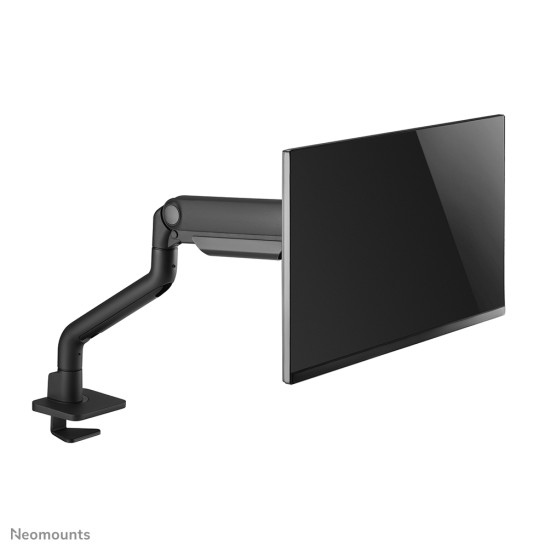

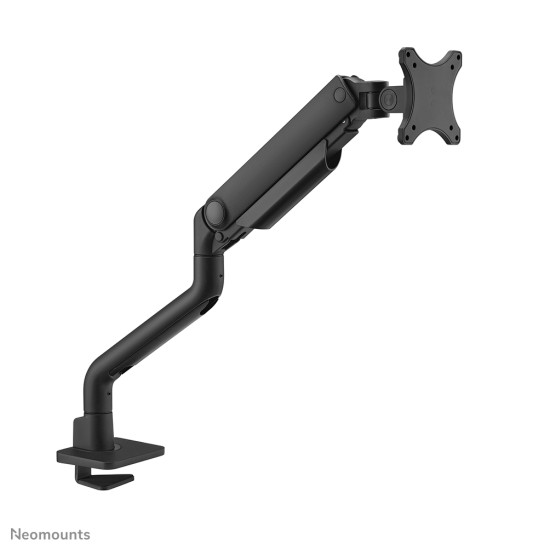

The Neomounts DS70S-950BL1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950BL1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

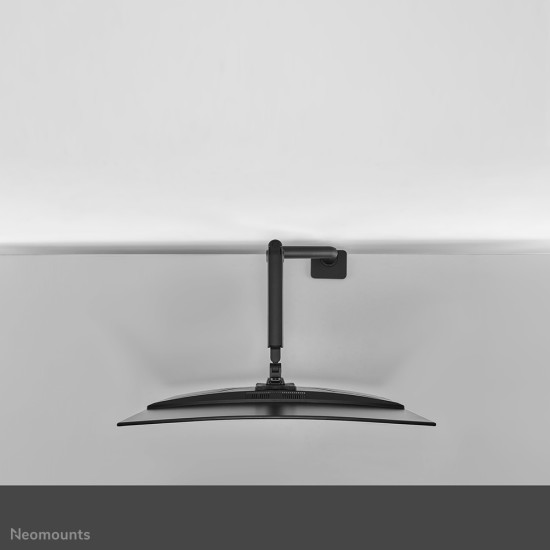

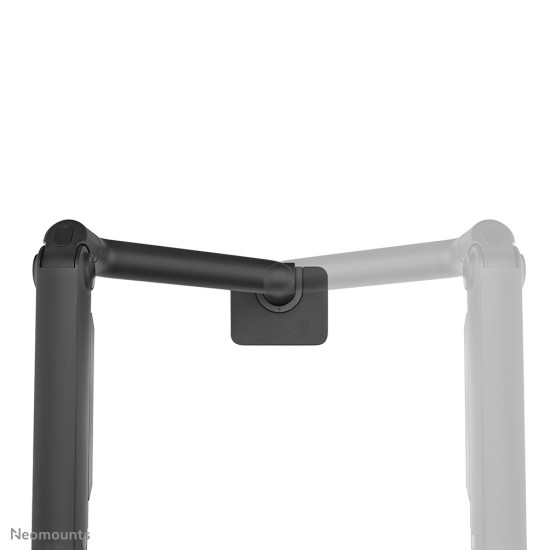

The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

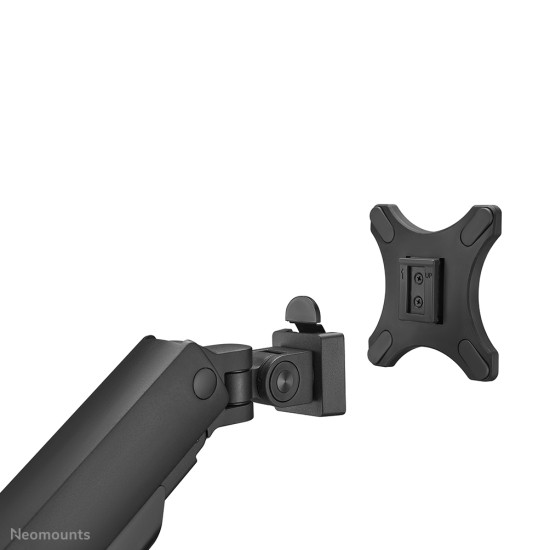

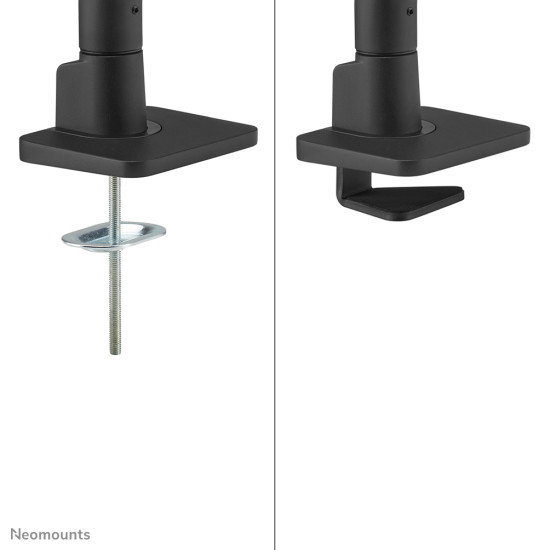

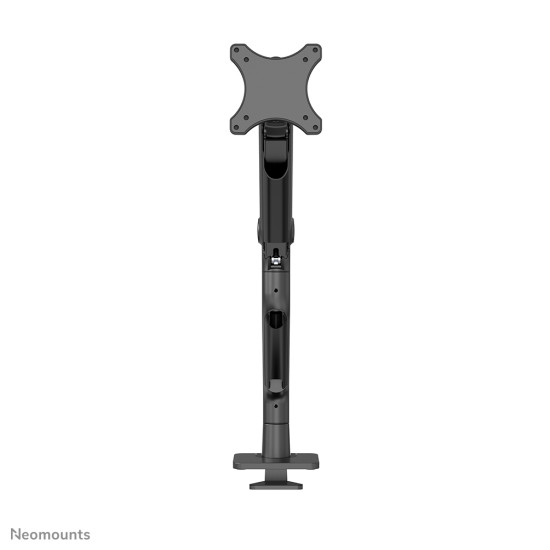

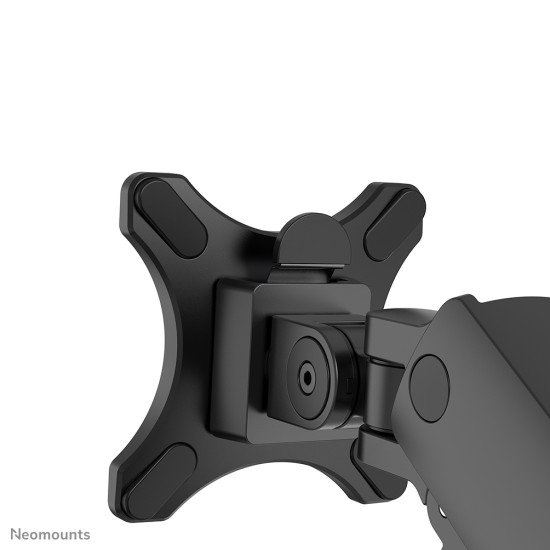

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

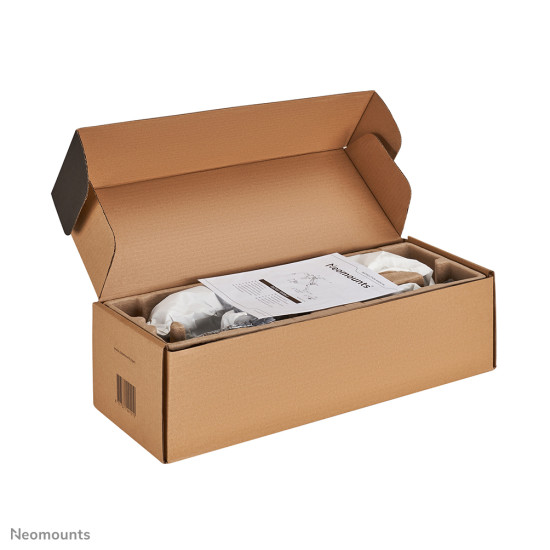

The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.
The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Mounting | |
Minimum screen size | 43.2 cm (17") |
Maximum weight capacity | 18 kg |
Maximum screen size | 124.5 cm (49") |
Maximum weight capacity (per curved/ultra-wide display) | 15 kg |
Mounting | Clamp/Grommet |
Minimum VESA mount | 75 x 75 mm |
Maximum VESA mount | 100 x 100 mm |
Panel mounting interface | 75 x 75,100 x 100 mm |
Distance to the wall (max) | 65.6 cm |
Grommet mount desk thickness (max) | 5.5 cm |
Number of displays supported | 1 |
Desk thickness (min) | 1 cm |
Distance to the wall (min) | 11.9 cm |
Mounting type | Desk |
Desk thickness (max) | 5.5 cm |
Clamp mount desk thickness (max) | 5 cm |
Weight & dimensions | |
Width | 135 mm |
Depth | 656 mm |
Height | 579 mm |
Weight | 3.72 kg |
Design | |
Housing material | Aluminium |
Easy to install | Yes |
Product colour | Black |
Ergonomics | |
Height adjustment | Yes |
Height adjustment type | Gas spring |
Rotating | Yes |
Height adjustment range | 200 - 520 mm |
Adjustable depth | Yes |
Depth adjustment range | 88 - 625 mm |
Tilt angle range | -90 - 90° |
Number of arms | 1 |
Angle of rotation | 360° |
Cable management | Yes |
Swivelling | Yes |
Swivel angle range | -90 - 90° |
Tilt adjustment | Yes |
Packaging data | |
Package net weight | 4.3 kg |
Package width | 333 mm |
Package depth | 122 mm |
Package height | 423 mm |
Package weight | 4.3 kg |
Package type | Box |
Logistics data | |
Harmonized System (HS) code | 7326909890 |
Master (outer) case net weight | 14.9 kg |
Master (outer) case width | 355 mm |
Master (outer) case length | 290 mm |
Master (outer) case height | 490 mm |
Master (outer) case gross weight | 17.9 kg |
Products per master (outer) case | 4 pc(s) |
Products per pallet (EU) | 80 pc(s) |
Country of origin | China |
Other features | |
Width adjustment range | 0 - 1074 mm |
Minimum weight | 1 kg |
Warranty period | 10 year(s) |
