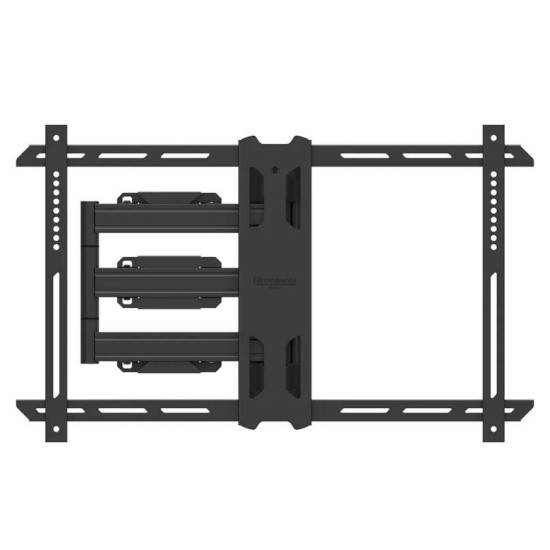

Neomounts WL40S-850BL16 TV mount wall 40-70" - full motion - fast installation

125.33€

Ex Tax: 103.58€

Stock: 2
Model: WL40S-850BL16
UPC: 871737144887
JAN: 8717371448875
MPN: WL40S-850BL16

Neomounts

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

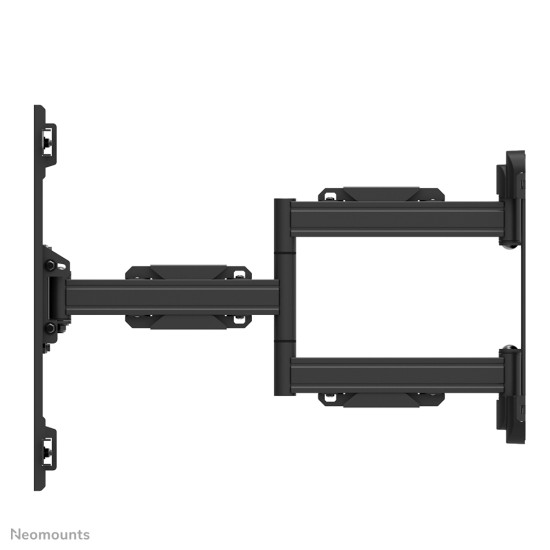

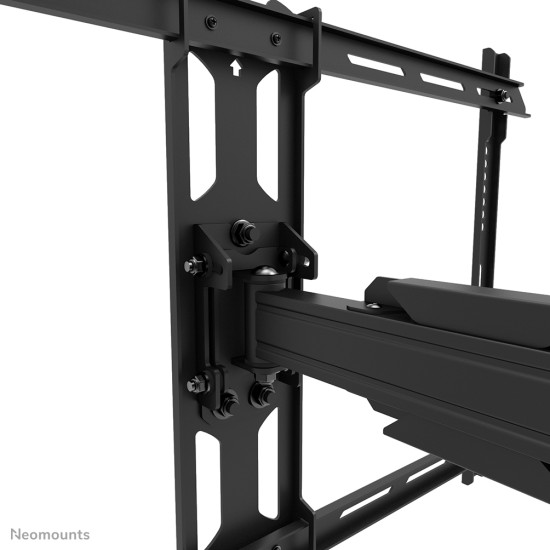

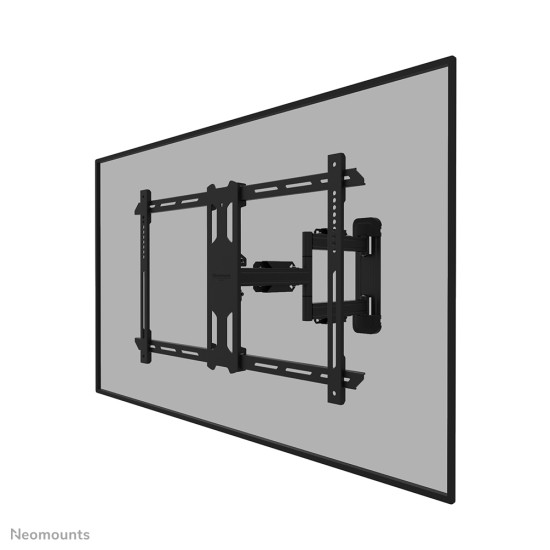

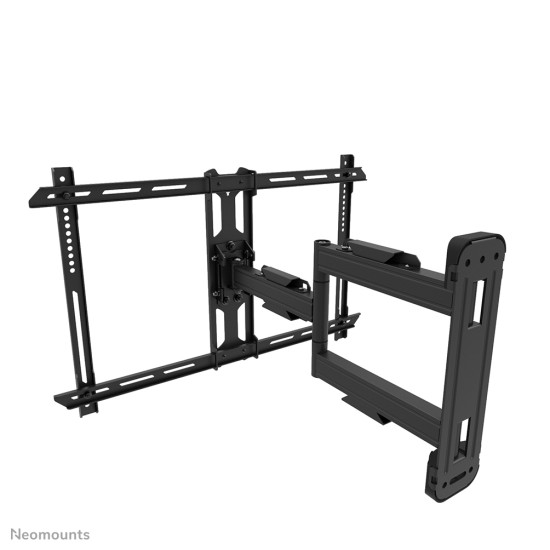

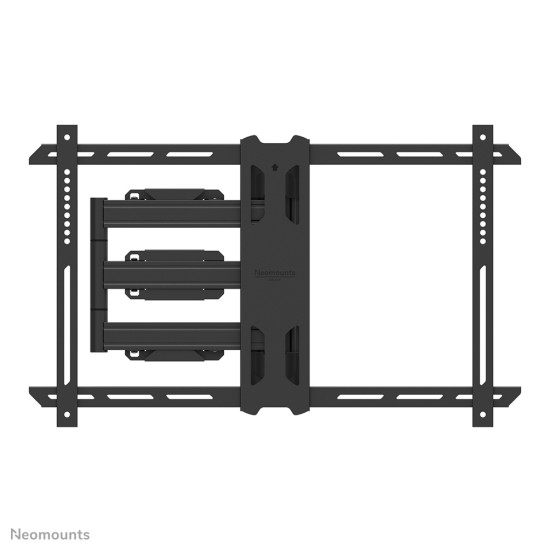

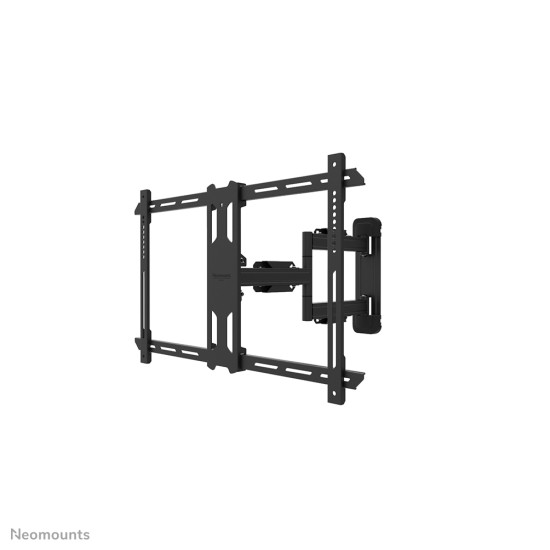

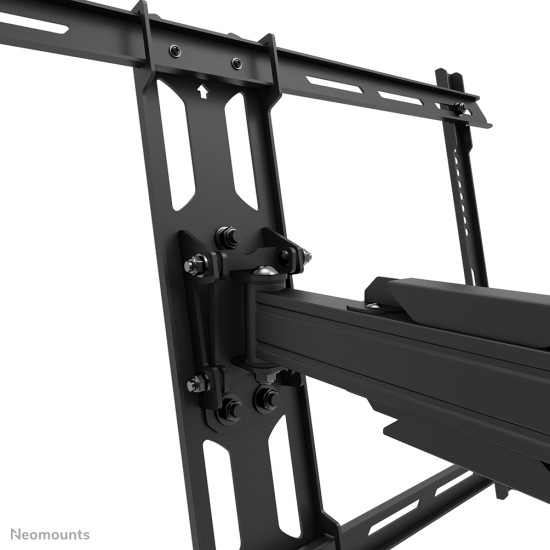

The Neomounts WL40S-850BL16 LEVEL is a full motion wall mount for flat screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (40°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

The LEVEL-850 wall mount has a depth of 4,7-55,5 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400mm.

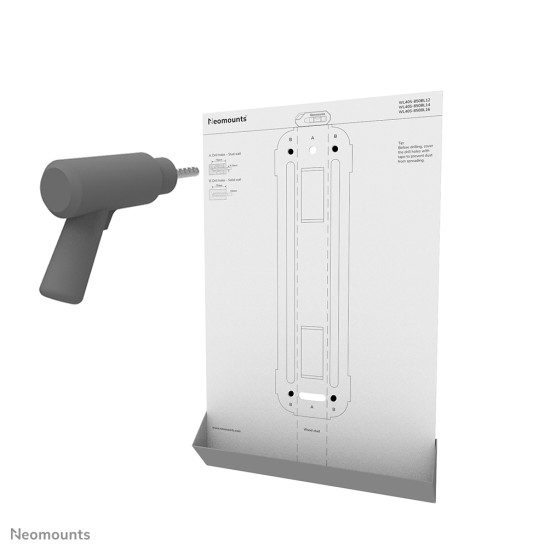

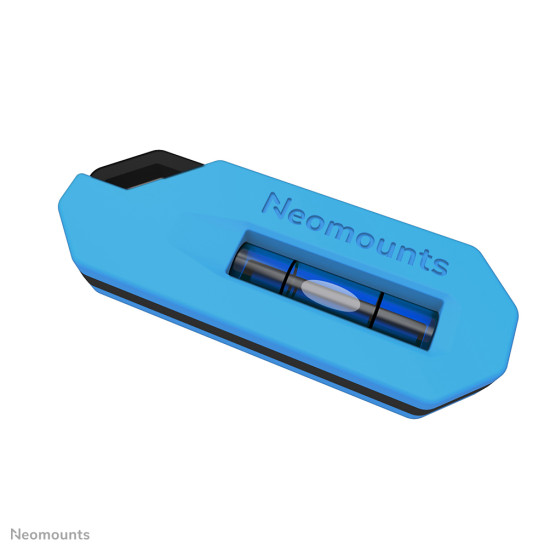

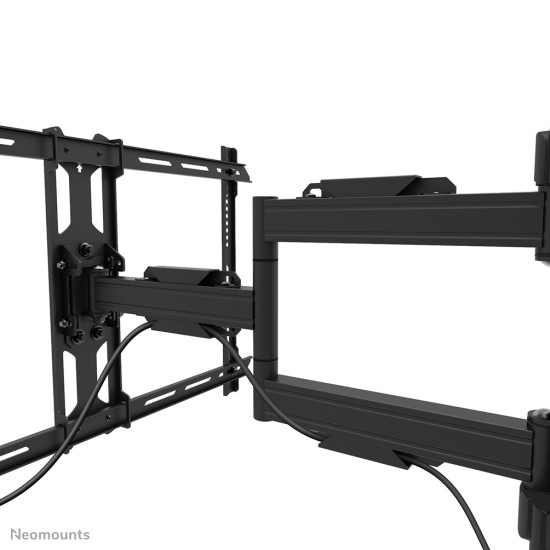

The WL40S-850BL16 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.

Mounting
Minimum screen size	101.6 cm (40")
Maximum weight capacity	45 kg
Maximum screen size	177.8 cm (70")
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,200 x 100,300 x 100,400 x 200
Number of displays supported	1
Mounting type	Wall
Technical details
Country of origin	China
Package net weight	7.8 kg
Lockable	Not lockable
Quantity per pack	1 pc(s)

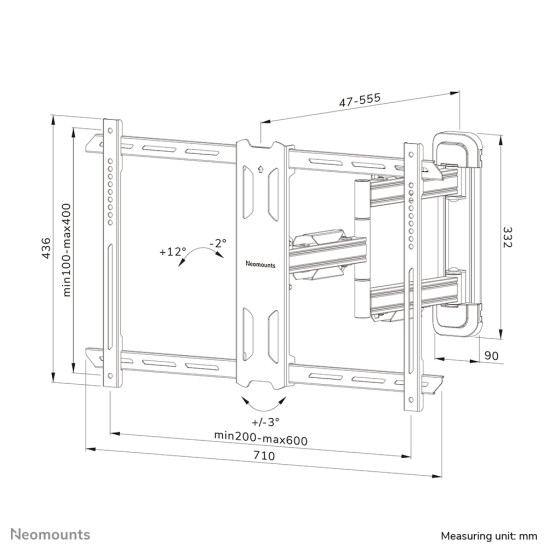

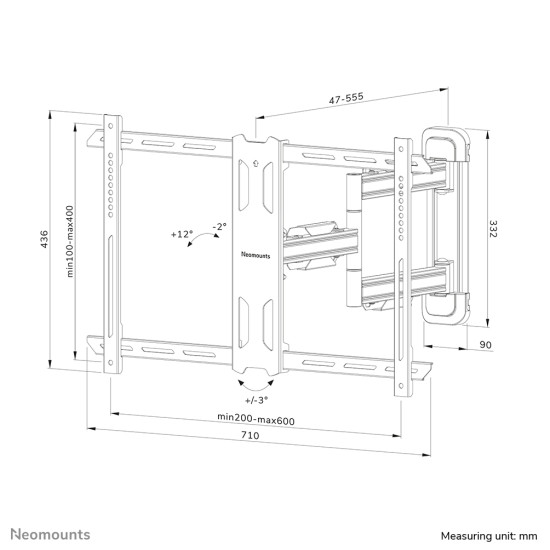

Weight & dimensions
Width	710 mm
Depth	47 mm
Height	436 mm
Weight	6.2 kg
Design
Housing material	Steel
Product colour	Black
Ergonomics
Distance to the wall (max)	55.5 cm
Distance to the wall (min)	4.7 cm
Height adjustment	No
Rotating	Yes
Type	Full motion
Tilt angle range	-2 - 12°
Swivel angle	40°
Angle of rotation	6°
Cable management	Yes
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt adjustment	Yes

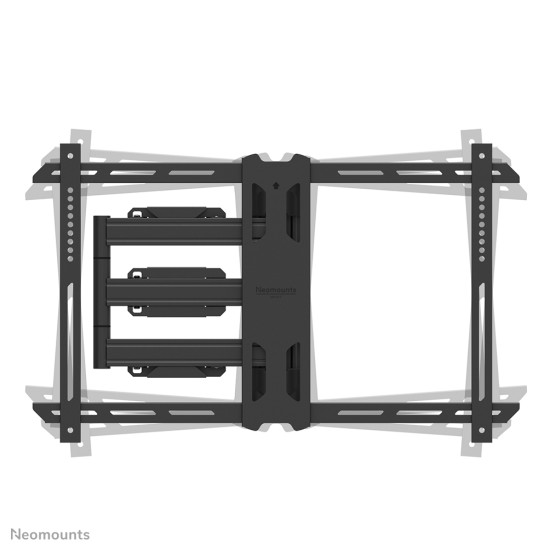

Pivot angle	-3 - 3°

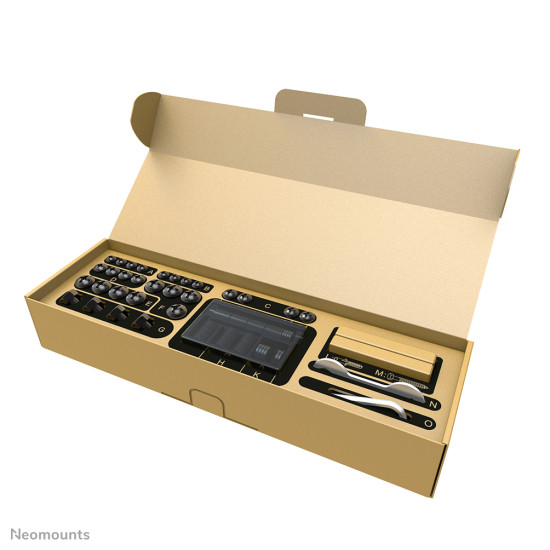

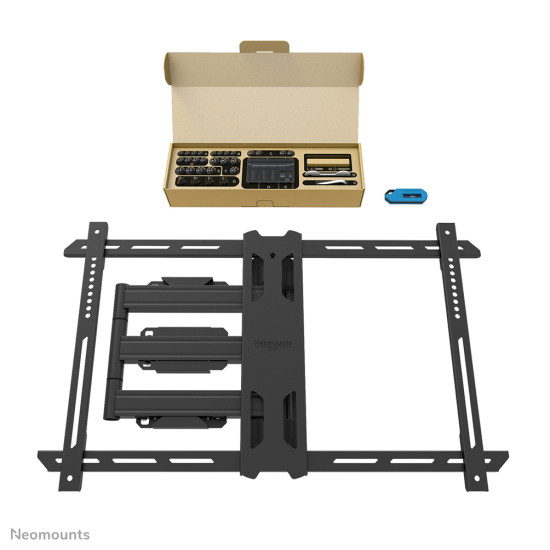

Packaging content
Mounting kit	Yes
Number of wrenches included	1
Hex key included	Yes
Packaging data
Package width	736 mm
Package depth	366 mm
Package height	60 mm
Package weight	7.8 kg
Logistics data
Harmonized System (HS) code	7326909890
Master (outer) case net weight	18.9 kg
Master (outer) case width	756 mm
Master (outer) case length	198 mm
Master (outer) case height	386 mm
Master (outer) case gross weight	24.1 kg
Products per master (outer) case	3 pc(s)
Products per pallet (EU)	60 pc(s)
