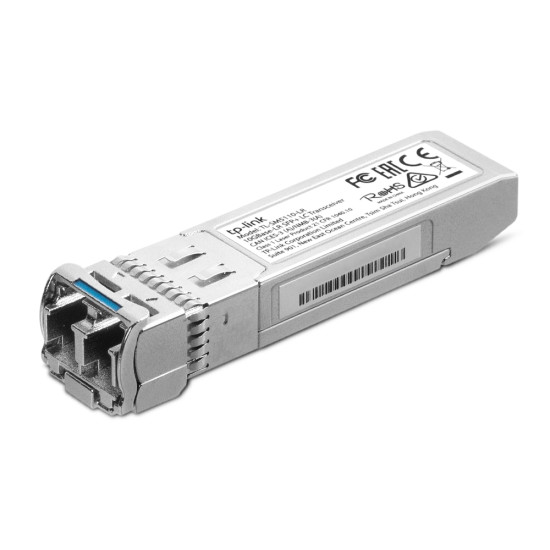

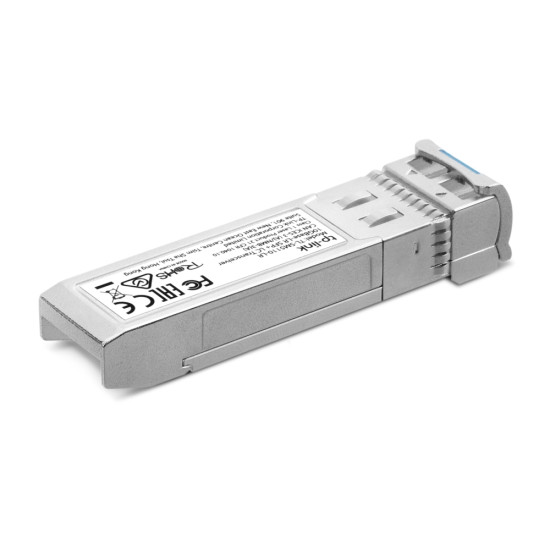

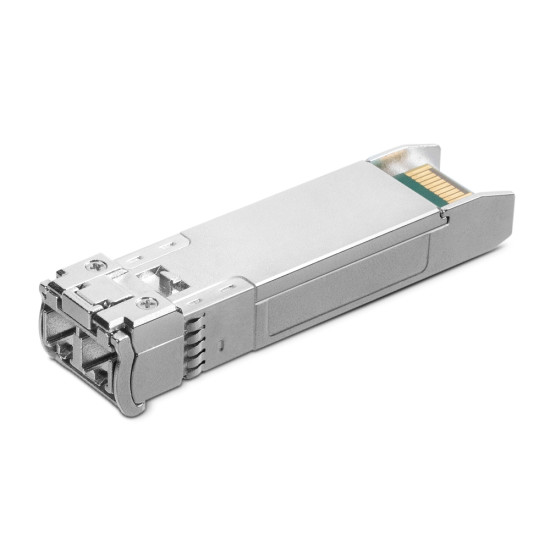

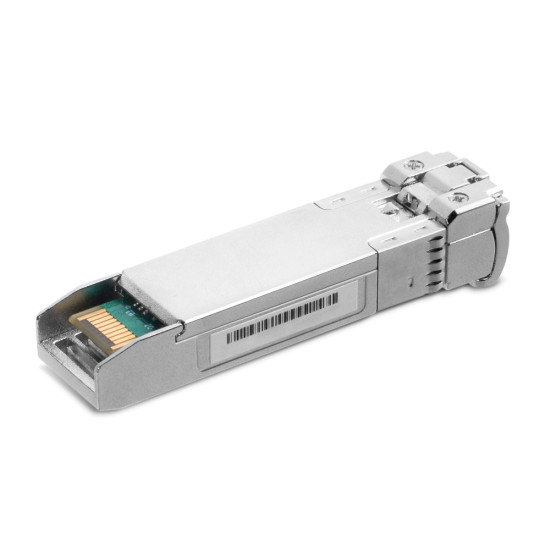

10GBase-LR SFP+ LC Transceiver

Name: 10GBase-LR SFP+ LC Transceiver
Brand: TP-LINK
Price: 41.53 EUR
Availability: InStock

10GBase-LR SFP+ LC Transceiver

41.53€

Ex Tax: 34.32€

Stock: 4
Model: TL-SM5110-LR
UPC: 489709868280
JAN: 4897098682807
MPN: TL-SM5110-LR

TP-LINK

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Certificates
Certification	FCC, CE
Features
Hot-Plug support	Yes
Compatible products	Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Brand compatibility	TP-Link
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	81.5 mm
Package depth	122.5 mm
Package height	38.5 mm
Package weight	60 g
Performance
Maximum data transfer rate	10000 Mbit/s
SFP transceiver type	Fiber optic
Maximum transfer distance	10000 m
Interface type	SFP+
Wavelength	1310 nm
Multi-mode fiber (MMF) supported	No
Single-mode fiber (SMF) supported	Yes
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	9/125 µm
SFP transceiver standard	LR
Networking standards	IEEE 802.3ae
Digital Diagnostics Monitoring (DDM)	Yes
Power
Input voltage	3.3 V
Logistics data
Harmonized System (HS) code	85369010
