Mainboard|ASUS|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|3xUSB 2.0|4xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|TUFGAMINGB850-EWIFI

Mainboard|ASUS|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|3xUSB 2.0|4xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|TUFGAMINGB850-EWIFI

217.87€

Ex Tax: 180.06€

Stock: 5

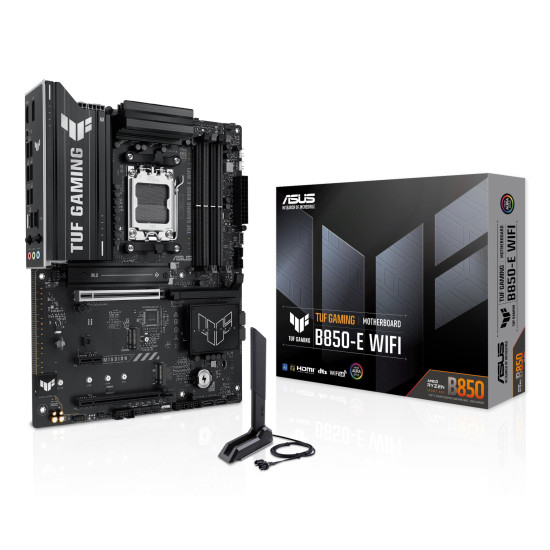

Model: TUF GAMING B850-E WIFI
UPC: 471138798754
JAN: 4711387987544
MPN: 90MB1L20-M0EAY0

ASUS

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Features
Component for	PC
Windows operating systems supported	Windows 10 x64, Windows 11
Product colour	Multicolour
Audio output channels	7.1 channels
Cooling type	Passive
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Motherboard chipset family	AMD
Processor
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer	AMD
Processor socket	Socket AM5
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
RAID support	Yes
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	48 mm
Internal I/O
USB 2.0 connectors	2
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2x2 connectors	1
Number of COM connectors	1
RGB LED pin header	Yes
Chassis intrusion connector	Yes
Number of water pump connectors	1
Number of chassis fan connectors	4
Number of CPU fan connectors	1
12V power connector	Yes
Number of RGB LED pin headers	3
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
ECC сompatibility	ECC & Non-ECC
Supported memory clock speed (max)	8000 MHz
Unbuffered memory	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	256 GB
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Packaging content
Antenna included	Yes
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	1.78 kg
Rear panel I/O ports
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPorts quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Microphone in	Yes
Line-in	Yes
WiFi-AP antenna jack	2
USB connector type	USB Type-A, USB Type-C
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Expansion slots
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	3
PCI Express x1 (Gen 4.x) slots	1
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
Other features
Weight	1.21 kg

Tags: Motherboards
