4 Port HDMI 18G Splitter










4 Port HDMI 18G Splitter
76.59€
Ex Tax: 63.30€
- Stock: 3
- Model: 38236
- UPC: 400288838236
- JAN: 4002888382366
- MPN: 38236

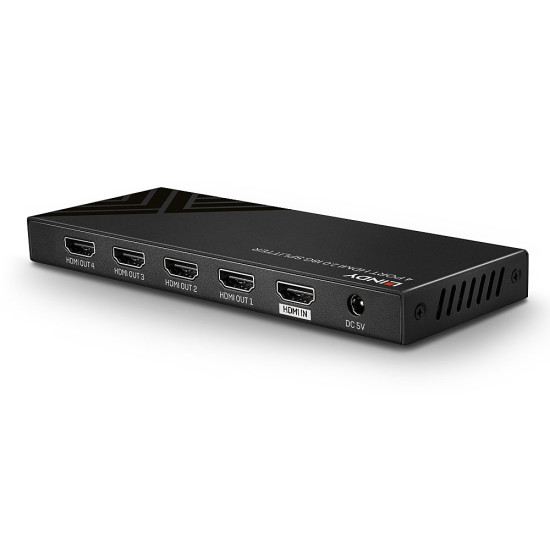

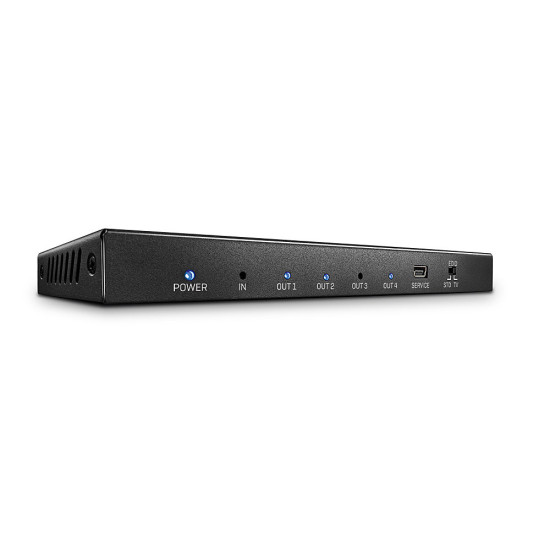

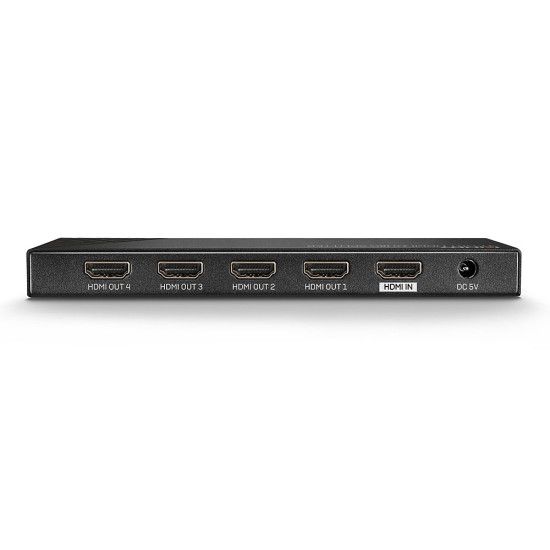

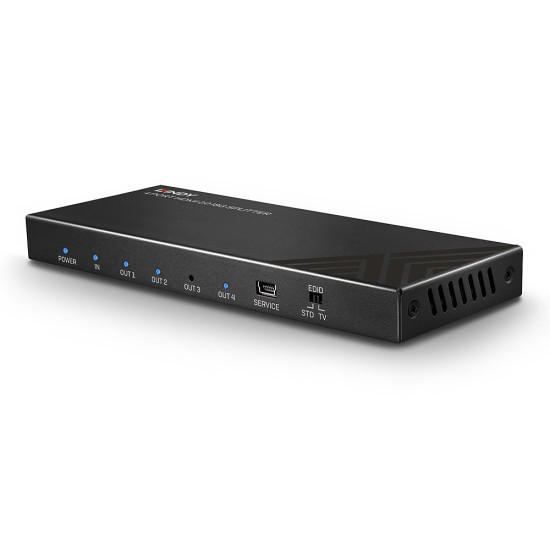

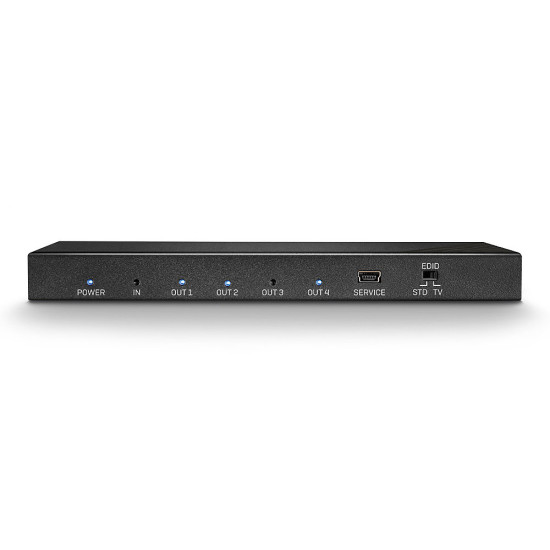

The Lindy 4 Port HDMI 2.0 18G Splitter is a compact, high quality solution for distributing HDMI 2.0 18G signals across multiple displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical facilities or ensuring audiences do not miss any of the action in dual display sports bars. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour.
HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display. The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen.
HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display. The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen.
Features | |
Certification | CE, FCC, REACH, California Proposition 65 |
Maximum resolution | 3840 x 2160 pixels |
Housing material | Metal |
LED indicators | Yes |
Maximum refresh rate | 60 Hz |
Product colour | Black |
HD type | 4K Ultra HD |
HDCP | Yes |
Operational conditions | |
Operating relative humidity (H-H) | 20 - 90% |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 0 - 40 °C |
Ports & interfaces | |
Video port type | HDMI |
Video ports quantity | 5 |
HDMI version | 2.0 |
Video out | 4x HDMI |
DC-in jack | Yes |
Technical details | |
Compliance certificates | RoHS |
Weight & dimensions | |
Width | 163 mm |
Depth | 63 mm |
Height | 16 mm |
Weight | 373 g |
Packaging content | |
Manual | Yes |
Packaging data | |
Package width | 248 mm |
Package depth | 55 mm |
Package height | 183 mm |
Package weight | 526 g |
Package type | Box |
Power | |
AC input voltage | 5 V |
Input current | 1 A |
Logistics data | |
Harmonized System (HS) code | 85176990 |
