Z890 GAMING PLUS WIFI

258.86€

Ex Tax: 213.93€

Stock: 6
Model: Z890GAMINGPLUSWIFI
UPC: 471137725771
JAN: 4711377257718
MPN: Z890 GAMING PLUS WIFI

MSI

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

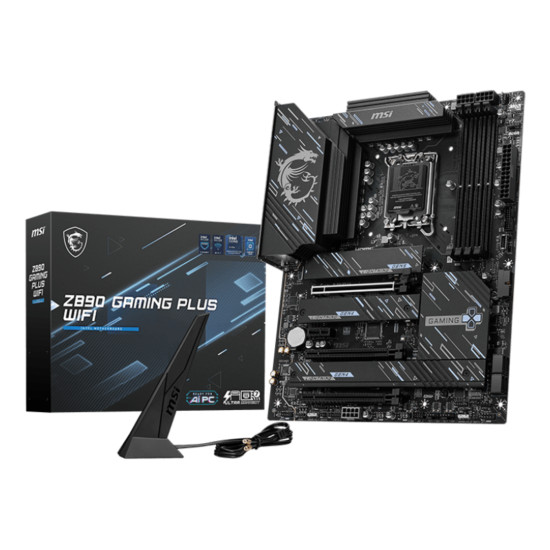

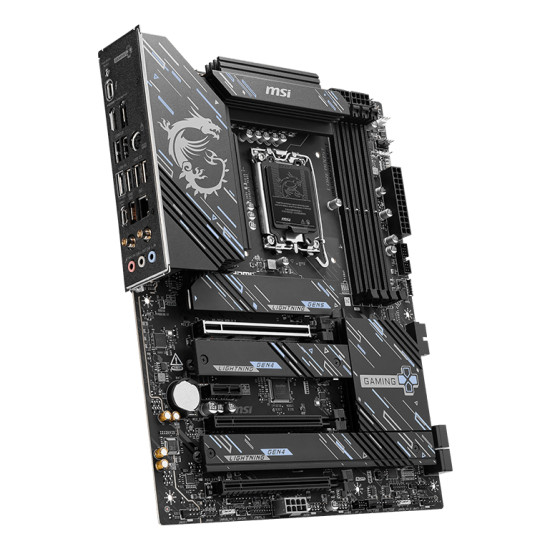

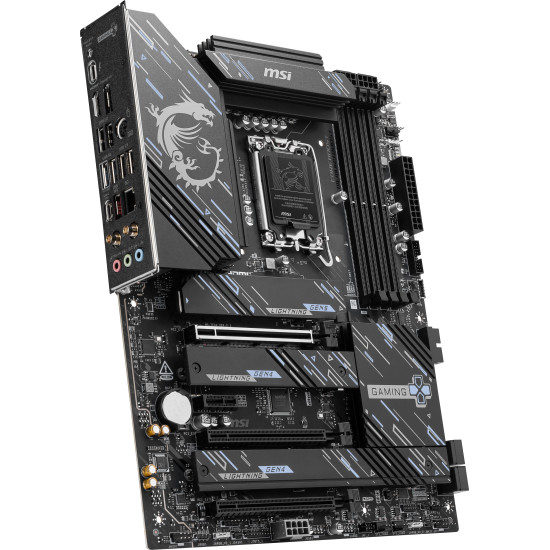

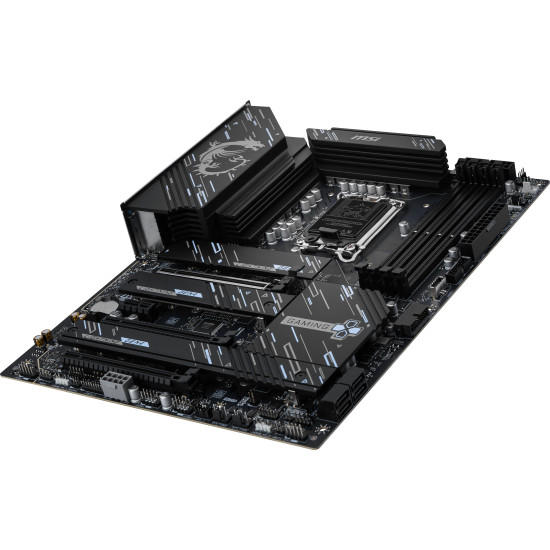

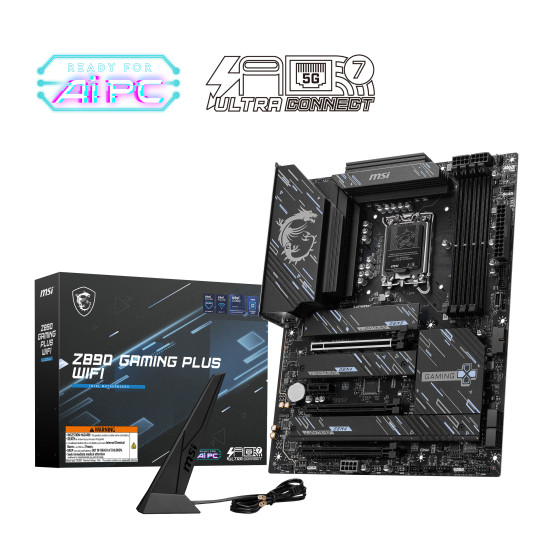

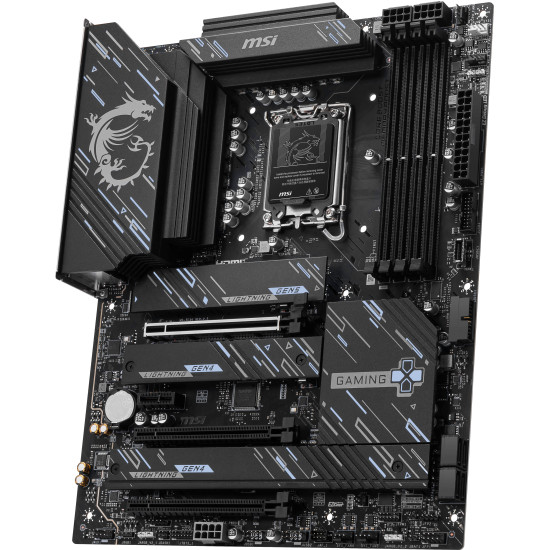

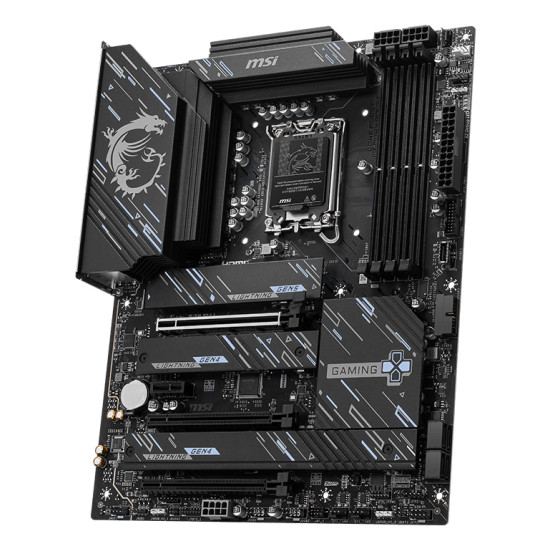

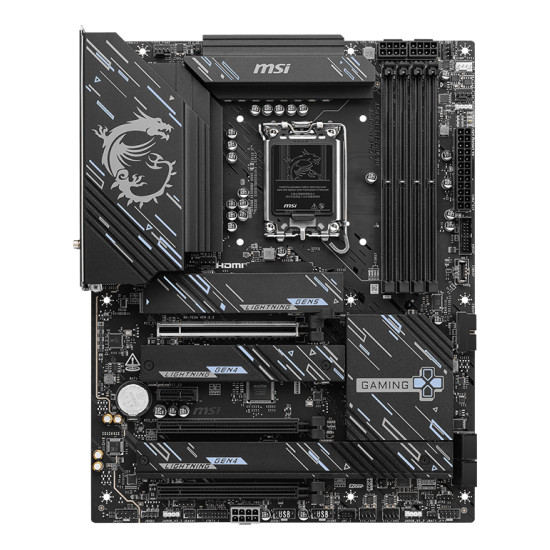

Z890 GAMING PLUS WIFI
Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

14+1+1+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, Z890 GAMING PLUS WIFI is ready for the challenge of high-end processors.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

Features
Component for	PC
Windows operating systems supported	Windows 11
Product colour	Black
Audio output channels	7.1 channels
Motherboard chipset	Intel Z890
Motherboard form factor	ATX
Motherboard chipset family	Intel
Audio chip	Realtek ALC897
Processor
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	Intel LGA1851
Processor manufacturer	Intel
Maximum internal memory supported by processor	256 GB
Processor socket	LGA 1851 (Socket V1)
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
RAID support	Yes
Number of HDDs supported	8
RAID levels	0, 1, 5, 10
Number of storage drives supported	4
Weight & dimensions
Width	243.8 mm
Depth	304.8 mm
Internal I/O
USB 2.0 connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
ATX Power connector (24-pin)	Yes
EPS power connector (8-pin)	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
Total number of SATA connectors	4
Number of EPS power connectors (8-pin)	1
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
ECC сompatibility	Non-ECC
Supported memory clock speeds	6400,9200 MHz
Supported memory clock speed (max)	9200 MHz
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	256 GB
Network
Ethernet LAN	Yes
Ethernet interface type	5 Gigabit Ethernet
Wi-Fi	Yes
Bluetooth	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Killer Wi-Fi 7 BE1750
Bluetooth version	5.4

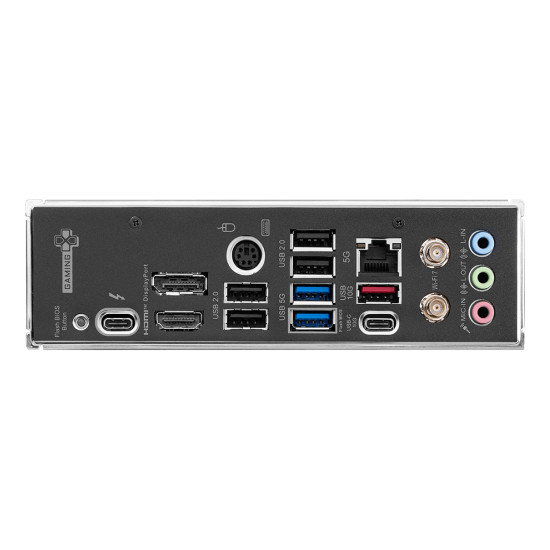

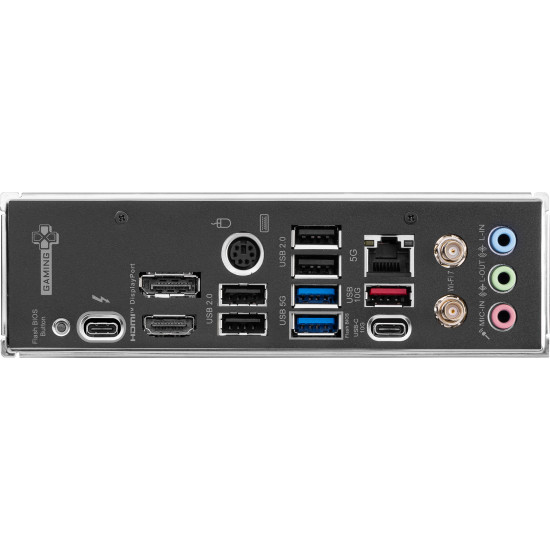

Rear panel I/O ports
DisplayPort version	1.4
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPorts quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Thunderbolt ports quantity	1
Graphics
On-board graphics card	No
Expansion slots
PCI Express x4 (Gen 4.x) slots	2
Number of M.2 (M) slots	4
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
