HMC-STND USB-C 5Gbps ALUMINUM STAND & HUB 7in1

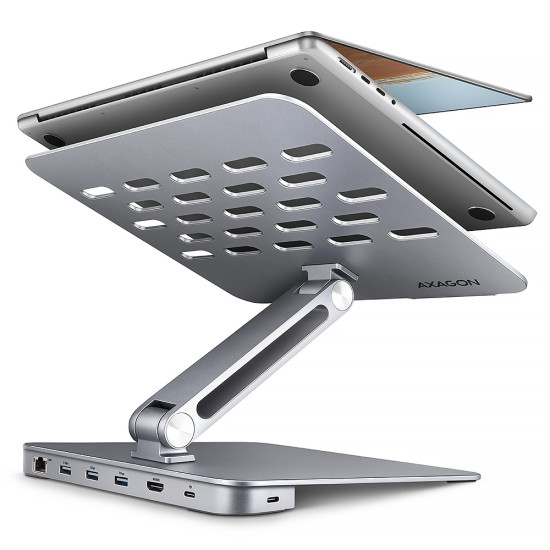

AXAGON HMC-STND 7in1 Hub & Stand is a unique multifunctional hub integrated into a laptop or tablet stand. This hub expands your laptop or tablet by an additional six ports. You will connect your laptop to the hub via USB-C <-> USB-C 60 cm long cable. In no time, you have connection for a monitor, three USB devices, an RJ-45 connector for Gigabit Ethernet network, and Power Delivery technology to power the laptop. The two-joint stand improves ergonomics and comfort while working and is suitable for devices from 10" to 16". It is ideal as a 7in1 docking station for Windows laptops and Apple MacBook Air or MacBook Pro.

Three USB-A 5Gbps outputs allow connection of external drives (up to 2 at the same time), flash drive, mouse, printer and other USB accessories. The USB ports also charge mobile phones and tablets with up to 7.5W of power. The Gigabit network card expands the computer with a fast and stable network connection, fills in the missing RJ-45 Ethernet connector, or adds an additional network card.

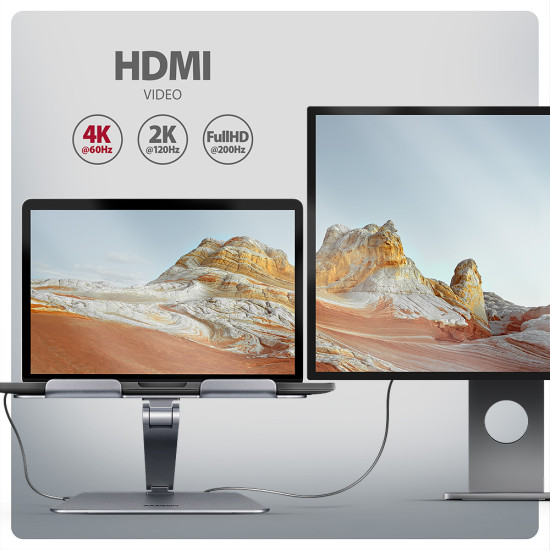

The HDMI output enables the connection of an external monitor, TV or projector with a resolution of up to 4K/60Hz Ultra HD, 2K/120Hz Quad HD or 1080p/200Hz Full HD and the transmission of multi-channel audio. Thanks to HDR support, you can enjoy a significantly expanded range of colours and contrasts without limitations.

The PD USB-C input is designed for a suitable Power Delivery charger. This allows your mobile device and the hub to be powered directly from the PD charger using Power Delivery 3.0 technology with up to 100W of power. Second USB-C connector is used to connect to the laptop with the included 60 cm long cable with a reversible USB-C connector on both ends.

Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is very simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running.

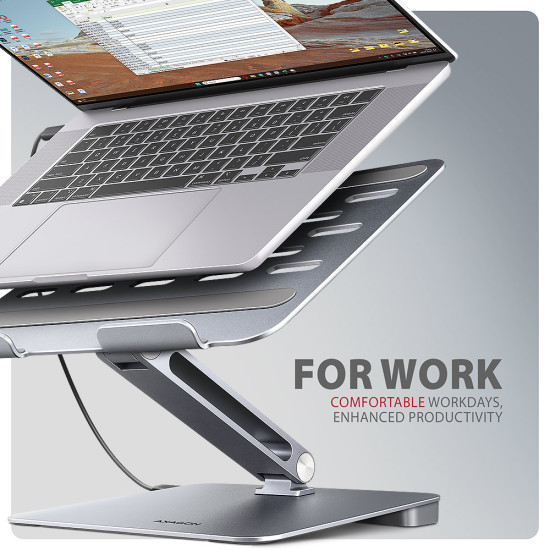

A great advantage of the stand is the clever double-hinge solution that allows to adjust the tilt angle and height of the laptop screen to be flush with the external monitor. This gives you an additional work place at the correct eye level, which greatly improves ergonomics and comfort at work and boosts your productivity.

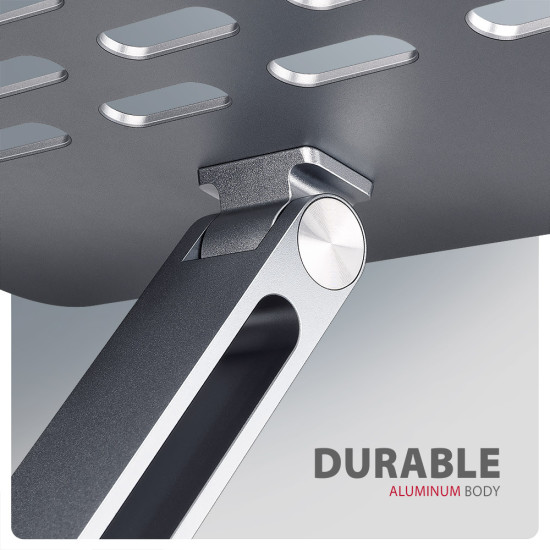

The elegant design of this stand not only complements your desk in style, but also offers practical functions. The base and hub cover are made of robust aluminum castings that provide passive cooling and guarantee long life and reliability of the stand and hub. In addition, the cutouts in the base optimize heat dissipation from the notebook, contributing to higher performance and longer life for your device.

Thanks to the non-slip finish, your device stays securely in place without the risk of unwanted movements, and without any damage to the surface of the laptop or the pad.

Input (computer or tablet connection):
• USB 5Gbps (USB 3.2 Gen 1 / USB 3.0), USB-C female connector.
• Compatible with USB 10Gbps, USB4, Thunderbolt 3/4/5.

Input (power supply):
• USB Power Delivery 3.0 - 100W port, USB-C female connector.
• Powering the mobile device from the mains adapter via the USB-C hub.
• PD power must be supported by both the mobile device and the mains charger.

USB outputs:
• 3x USB 5Gbps port, USB-A female connector.
• USB-C hub can handle the connection of several external drives at the same time.
• Charging of mobile devices (including iPad) with a current of up to 1.5A/5V from the USB-A and USB-C PD.

Video outputs:
• 1x HDMI port, HDMI A female connector.

Maximum supported resolution:
• 1 monitor - up to 4K/60Hz Ultra HD, 2K/120Hz Quad HD, 1080p/200Hz Full HD.

Video features:
• For Apple devices running macOS, the maximum refresh rate is usually limited to 60Hz.
• To achieve maximum resolution and frequency values on video outputs, the hub must be plugged into a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) version min. 1.4 or a USB-C port supporting min. Thunderbolt 3. A suitable updated OS and up-to-date graphics drivers are also required.
• HDR support (High dynamic range, 10-bit support) - realistic reproduction of light and dark details.
• HPD (Hot-Plug-Detect) support.
• TMDS (Transition Minimized Differential Signalling) support.
• HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection) full support.
• 8-channel LPCM audio, compressed audio (AC-3, DTS) and HBR audio format support.
• Supports sample rates up to 192 kHz and up to 24-bit audio - depends on the source and destination device, i.e. laptop/phone and TV/monitor/AV receiver.

RJ-45 output:
• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
• Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
• Supported IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T. specifications.
• 10/100/1000 Mb/s auto-detection.

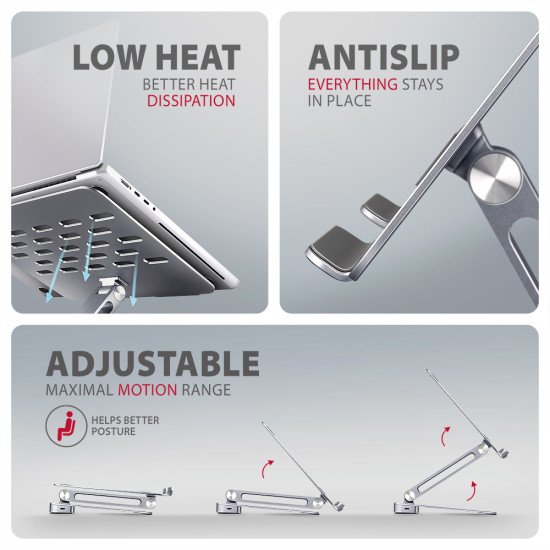

Stand features:
• Lightweight and strong metal construction.
• Anti-slip finish, which also protects the device from scratches.
• Suitable for 10" - 16" laptops or other devices.
• Adjustable height up to 205 mm.
• Many adjustable positions.
• Adjustable base tilt (180° - 90°).
• Arm tilt adjustment (180° - 90°).
• Compact and easy to fold.
• Better heat dissipation from the notebook.

Other features:
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• Standby mode support.
• Power supply via USB bus - USB bus power.
• Power supply via PD charger (not included).
• High quality shielded cable ensures fast communication speed and minimal unwanted interference.
• Dimensions 54 x 280 x 255 mm (H x W x D).
• Weight 1161 g (without cable).
• USB-C <-> USB-C cable 60 cm long for connecting the dock to a laptop.

Supported operating systems:
• Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
• Compatibility depends on the operating system and device manufacturer support.
• DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (notebook, tablet, phone).
• Graphics card drivers may also affect the correct operation of the product. We recommend downloading the latest version of drivers.

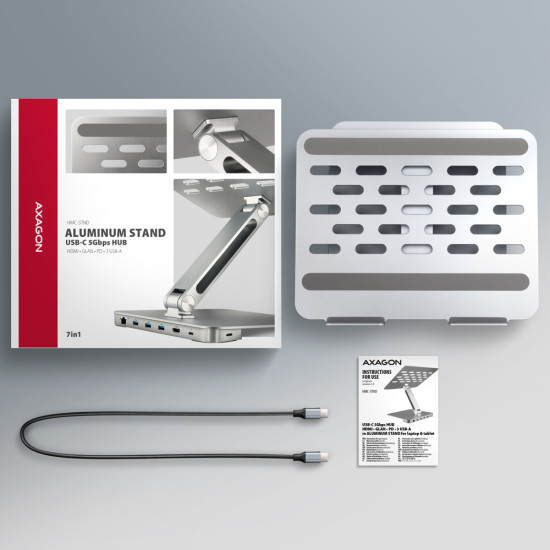

Package contains:
• USB-C hub and stand,
• USB-C cable 60 cm long,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
• packed in a cardboard box.
