847.70€
Ex Tax: 700.58€
  • Stock: 1
  • Model: TD4750TNWBZ1
  • UPC: 497776680040
  • JAN: 4977766800402
  • MPN: TD-4750TNWB

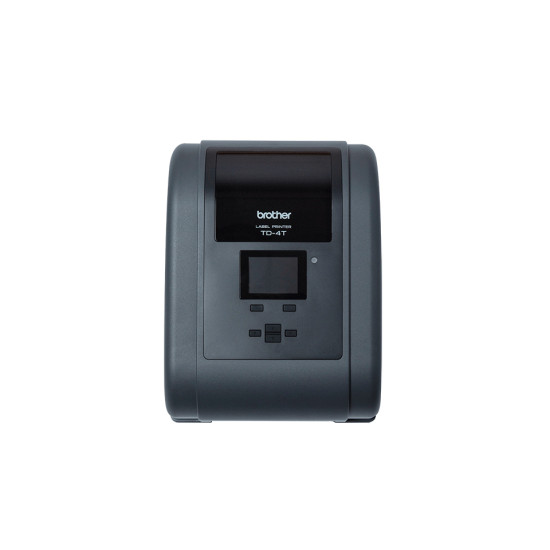

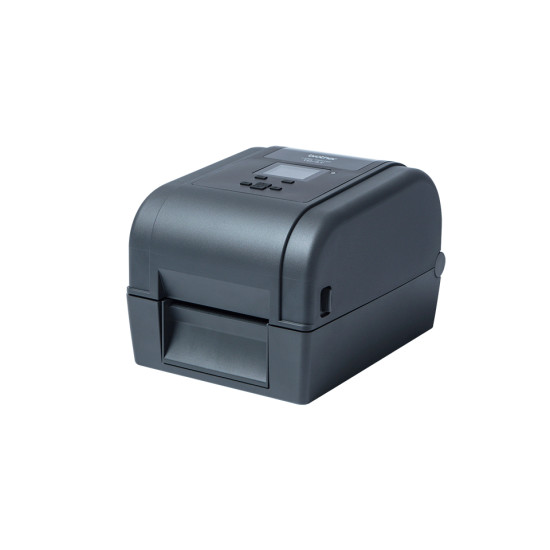

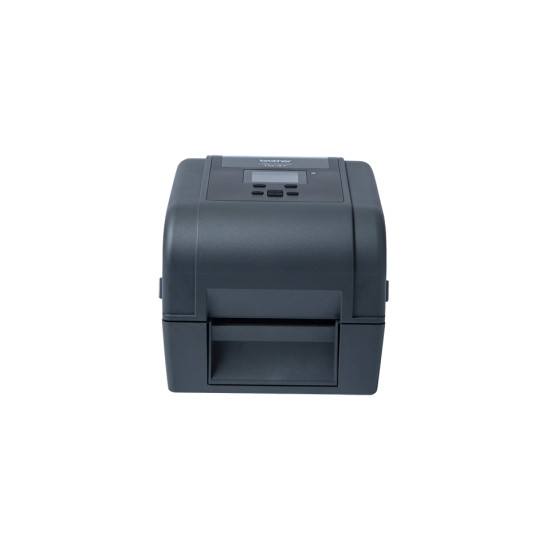

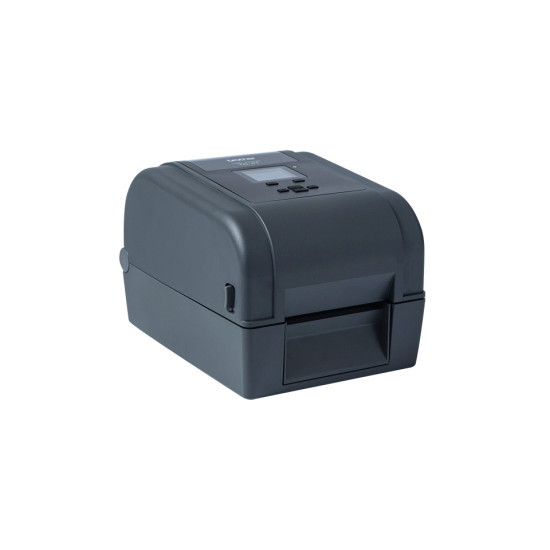

The TD-4750TNWB versatile thermal label printer uses high capacity thermal transfer ink ribbons for durable labelling and ultimate productivity. Seamlessly integrate into your existing systems with industry standard printer command languages.

Ultimate productivity

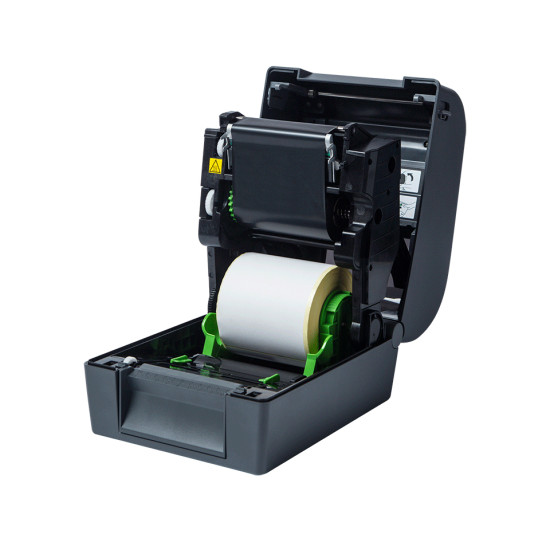

Experience high-performance, thermal desktop printing up to 4" in width for ultimate productivity. The TD-4750TNWB label, receipt and wristband printer offers fast print speeds of up to 6 inches per/second and minimises downtime with 300 metre ribbons, meaning less ribbon changes.

Easy to use

The colour LCD ensures ease-of-use and the supported printer command languages and Software Development Kits make integration equally as easy.

Connectivity to suit your requirements

With integrated USB, Ethernet and Serial ports as standard, the Brother TD-4750TNWB will have no problems connecting to your existing equipment and infrastructure.

Additional connectivity includes WiFi and Bluetooth.

High quality thermal transfer printing

This 4" desktop printer offers 300 dpi for crisp, easy-to-read text and barcodes, time after time, to meet the needs of your demanding workflow.

Customisation with optional accessories

The TD-4750TNWB offers optional accessories including a label cutter, automatic label peeler and external roll holder to further meet your requirements and increase your efficiency.
Operational conditions
Operating relative humidity (H-H) 5 - 40%
Storage temperature (T-T) 10 - 90 °C
Operating temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 25 - 85%
Ports & interfaces
Connectivity technology Wired & Wireless
Bluetooth Yes
Bluetooth version 4.2
RS-232 ports 1
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
USB port Yes
USB 2.0 ports quantity 1
Ethernet LAN Yes
Wi-Fi Yes
Printing
Colour No
Print technology Direct thermal / Thermal transfer
Maximum printing width 10.5 cm
Print speed 152 mm/sec
Maximum resolution 300 x 300 DPI
Maximum print length 11.43 m
System requirements
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported Yes
Server operating systems supported Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Technical details
Sustainability certificates ENERGY STAR
Pallet type 800 x 1200 mm
Weight & dimensions
Width 300 mm
Depth 440 mm
Height 275 mm
Weight 3.8 kg
Design
Product colour Black
Display LCD
Built-in display Yes
Display diagonal 5.84 cm (2.3")
Colour display Yes
Packaging content
Cables included AC, USB
AC adapter included Yes
Software development kit (SDK) Yes
Quick start guide Yes
Bundled software Bartender Ultra Lite Edition
Packaging data
Package weight 4.77 kg
Performance
Built-in barcodes AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Flash memory 128 MB
Internal memory 128 MB
Logistics data
Products per pallet 30 pc(s)
Harmonized System (HS) code 84433210
Pallet gross height 15.2 cm
Master (outer) cases per pallet 30 pc(s)
Layers per pallet 5 pc(s)
Master (outer) cases per pallet layer 6 pc(s)
Pallet gross weight 163.2 kg
Other features
Country of origin Taiwan
Spare part retention 5 year(s)
Languages support Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Slovenian
Paper handling
Maximum roll diameter 12.7 cm
Maximum label width 11.2 cm
