605.10€
Ex Tax: 500.08€
  • Stock: 4
  • Model: TS-433EU
  • UPC: 471110308594
  • JAN: 4711103085943
  • MPN: TS-433EU

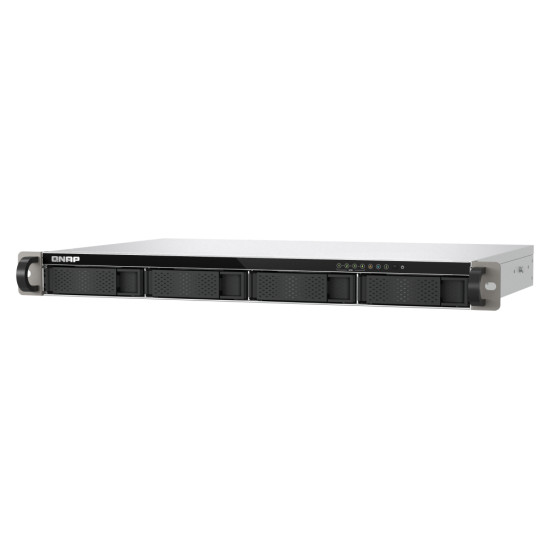

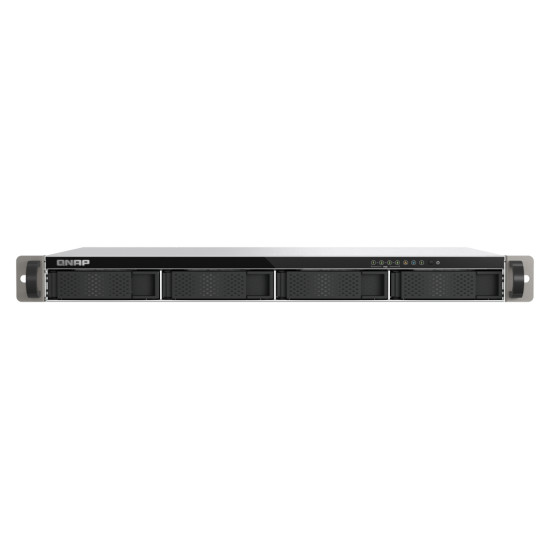

The closer your data storage is, the faster you can access your data or applications! The TS-433eU with its sleek 1U short-depth rackmount design fits perfectly in tight spaces, making it ideal for flexible deployment. Deploy the TS-433eU closer to your operations to effortlessly create edge storage, and enjoy intelligent file management, secure backups, and seamless Docker container applications.

Space-saving
Flexible deployment for installation in small media cabinets or wall-mounted network racks.

Powerful yet energy-efficient
The ARM Cortex-A55 quad-core processor with 4GB RAM uses up to 80% less power than similar x86-based NAS.

AI image recognition with NPU acceleration
The built-in NPU enhances AI-powered face recognition and accelerates subject identification in QNAP’s QuMagie smart album.

Dual 2.5GbE as standard
Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.

Easy storage expansion via USB
Connect a QNAP short-depth USB JBOD TR-004U to the TS-433eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).

Backup and snapshot protection for peace of mind
Centralize all data backups to TS-433eU and regularly create snapshots to safeguard your data against ransomware threats.
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB port Yes
Ethernet LAN (RJ-45) ports 2
Processor
Processor architecture ARM Cortex-A55
Processor manufacturer ARM
Processor family Cortex-A
Processor model Cortex-A55
Processor frequency 2 GHz
Processor cores 4
Weight & dimensions
Width 430 mm
Depth 292.3 mm
Height 292.3 mm
Weight 4.01 kg
Package weight 5.9 kg
Design
Cooling type Active
Fan diameter 4 cm
Number of fans 3 fan(s)
Product colour Black
LED indicators HDD, LAN, Status, USB
Cable lock slot Yes
Cable lock slot type Kensington
Chassis type Rack (1U)
Memory
Internal memory 4 GB
Network
Ethernet LAN Yes
Ethernet LAN data rates 1000,2500 Mbit/s
Wake-on-LAN ready Yes
Performance
Type NAS
On/off switch Yes
Browser supported Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome
Device class Small & Medium Business
Buzzer Yes
Reset button Yes
Built-in FTP server Yes
Hot spare Yes
Share folder CIFS/SMB
Power
Number of power supply units 1
Power supply location Built-in
Power consumption (typical) 23.74 W
AC input voltage 100-240 V
Power supply unit (PSU) capacity 60 W
Fan voltage 12 V
Power consumption (sleep) 9.32 W
Storage
Storage drive interface Serial ATA
Storage drives installed No
Installed storage drive type No
Storage drive size 2.5/3.5"
Total installed storage capacity 0 TB
Hot-swap drive bays Yes
Number of storage drives supported 4
Supported storage drive types HDD & SSD
RAID support No
Software
Windows operating systems supported Yes
Mac operating systems supported Yes
Linux operating systems supported Yes
Operating system version 4.1
Operating system installed QNAP Turbo System
