DisplayPort 1.2 to VGA Active Converter

DisplayPort 1.2 to VGA Active Converter
DisplayPort 1.2 to VGA Active Converter
DisplayPort 1.2 to VGA Active Converter
DisplayPort 1.2 to VGA Active Converter
DisplayPort 1.2 to VGA Active Converter
DisplayPort 1.2 to VGA Active Converter
DisplayPort 1.2 to VGA Active Converter
DisplayPort 1.2 to VGA Active Converter
DisplayPort 1.2 to VGA Active Converter
23.72€
Ex Tax: 19.60€
  • Stock: 1
  • Model: 41006
  • UPC: 400288841006
  • JAN: 4002888410069
  • MPN: 41006

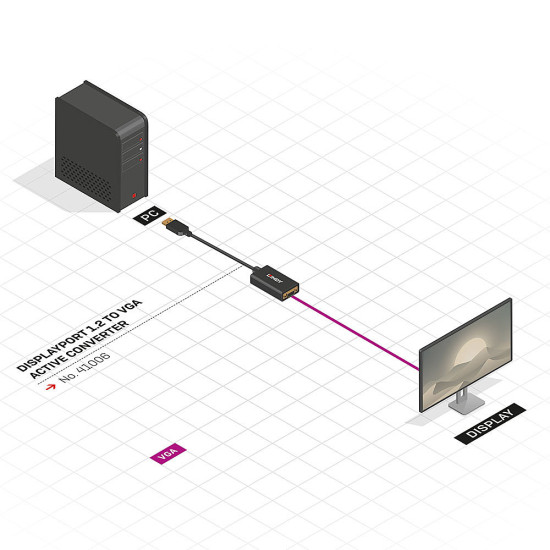

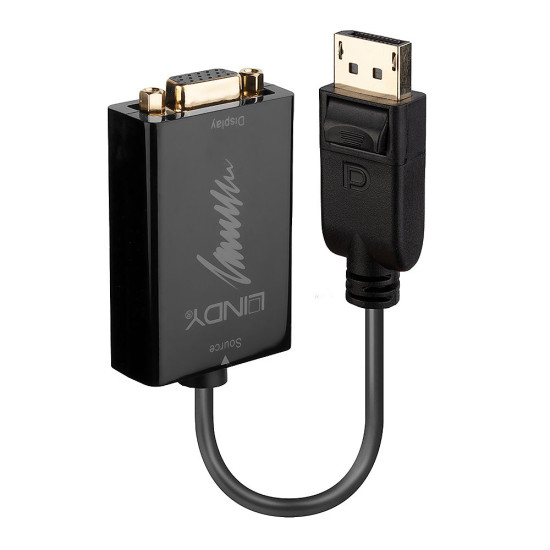

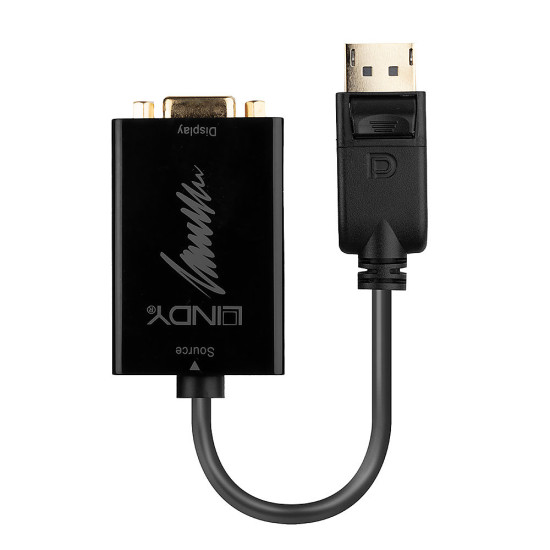

The Lindy DisplayPort 1.2 to VGA Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a VGA monitor. It supports high definition video resolutions up to 1920x1080@60Hz. Active conversion ensures compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage.

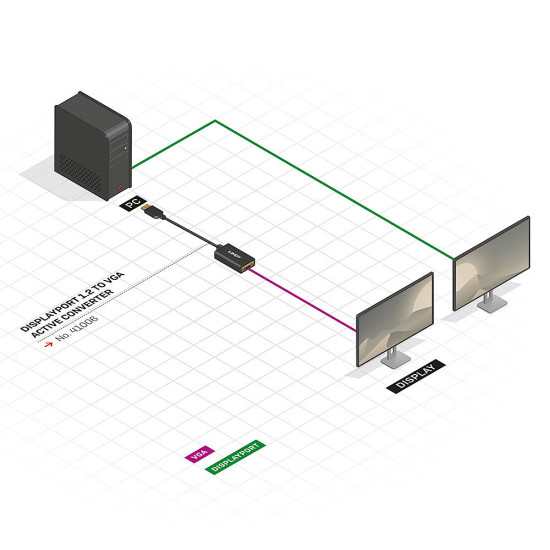

The converter can also be used to add another display to extend the available desktop workspace and increase productivity. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug and Play installation.
Certificates
Certification CE, UKCA, FCC, RoHS, REACH
Features
Connector 1 VGA (D-Sub)
Connector 1 form factor Straight
Connector contacts plating Gold
Connector 2 DisplayPort
Connector 2 form factor Straight
Connector 1 gender Male
Connector 2 gender Female
Data transfer rate 10.8 Gbit/s
Maximum resolution 1920 x 1080 pixels
Supported graphics resolutions 1920 x 1080 (HD 1080)
DisplayPort version 1.2
Cable length 0.15 m
Maximum refresh rate 60 Hz
Product colour Black
Jacket material Polyvinyl chloride (PVC)
Bend radius (min) 7 cm
Chipset ANX9833
Plug and Play Yes
Connector housing material Thermoplastic elastomer (TPE)
Operational conditions
Operating relative humidity (H-H) 20 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) -20 - 80 °C
Weight & dimensions
Cable diameter 6.5 mm
Weight 45 g
Connector 1 dimensions (WxDxH) 38 x 61 x 17 mm
Connector 2 dimensions (WxDxH) 20 x 36 x 11 mm
Packaging content
Quantity per pack 1 pc(s)
Packaging data
Package width 160 mm
Package depth 20 mm
Package height 160 mm
Package weight 49 g
Package type Polybag
Logistics data
Harmonized System (HS) code 84733080
