Power Supply|GIGABYTE|GP-P650SS|650 Watts|GP-P650SS

Name: Power Supply|GIGABYTE|GP-P650SS|650 Watts|GP-P650SS
Brand: GIGABYTE
SKU: 1421061
Price: 53.80 EUR
Availability: InStock

Power Supply|GIGABYTE|GP-P650SS|650 Watts|GP-P650SS

53.80€

Ex Tax: 44.46€

Stock: 6
Model: GP-P650SS
UPC: Unknown
ISBN: Unknown
MPN: GP-P650SS

GIGABYTE

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

GP-P650SS | ATX 3.0 | 650 Watts | Cooling System 12cm fan | Colour Black

Ports & interfaces
CPU power connector (4+4 pin)	Yes
Motherboard power cable length	60 cm
Peripheral (Molex) power cable length	120,500 mm
Motherboard power connector	20+4 pin ATX
SATA power cable length	120,500 mm
Number of SATA power connectors	5
CPU power cable length	60 cm
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power cable length	65 cm
PCI Express power connectors (6+2 pin)	4
CPU P4 connector (4-pin)	1
ATX power connector (20+4 pin)	Yes
Cabling type	Non-Modular
Floppy disk drive connector	Yes
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Design
Cooling type	Active
On/off switch	Yes
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Black
Fan location	Top
Packaging data
Package type	Box
Performance
Power supply unit (PSU) form factor	ATX
Bearing technology	HDB
80 PLUS certification	80 PLUS Bronze
ATX version	3.0
Mean time between failures (MTBF)	100000 h
Purpose	PC
Power

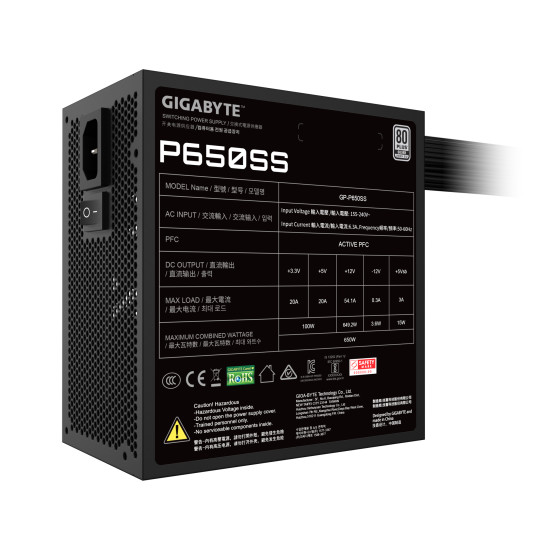

Total power	650 W
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	100 W
Combined power (+12V)	649.2 W
Max output current (+12V)	54.1 A
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Overcharge, Short circuit, Under voltage
AC input voltage	155-240 V
Input current	6.3 A
Logistics data
Harmonized System (HS) code	84733020
Other features
Noise level (silent mode, <30%)	20 dB
Noise level (quiet mode, 50%)	29 dB
Noise level (full-load mode, 100%)	39 dB
Power management	Yes
