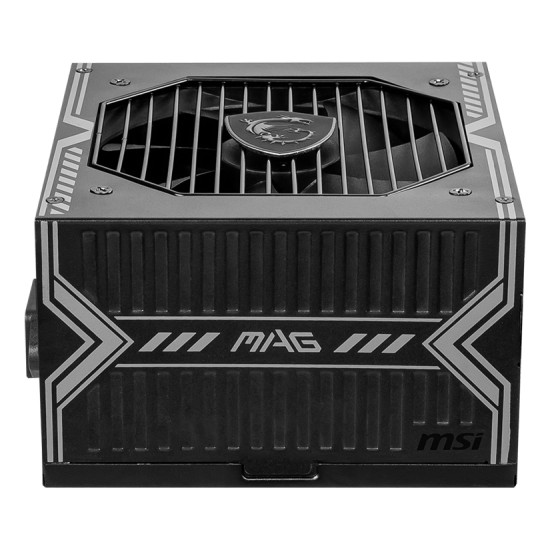

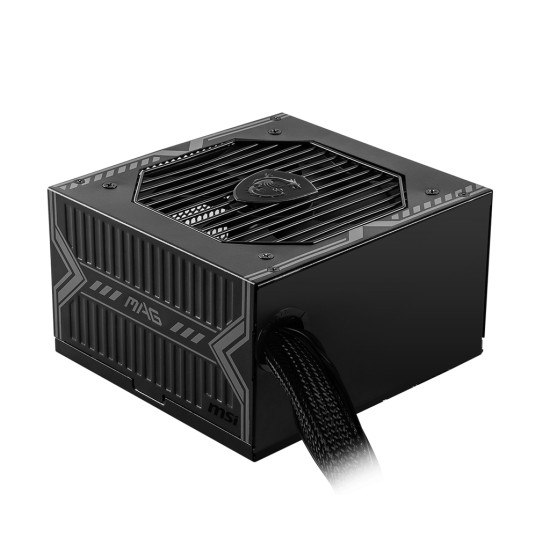

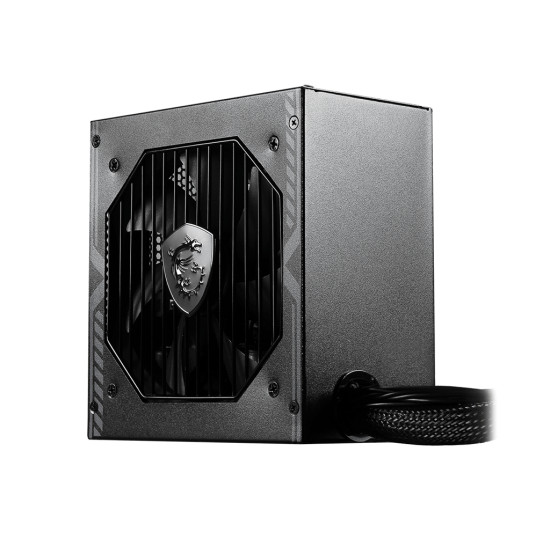

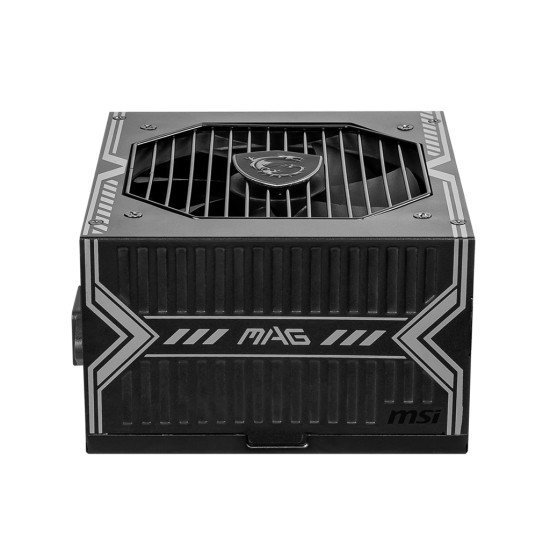

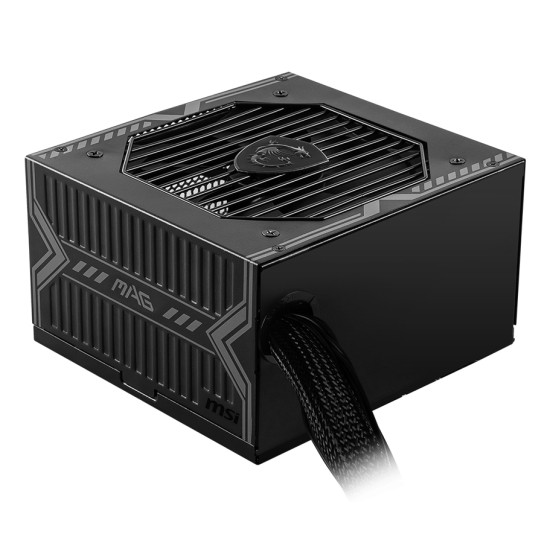

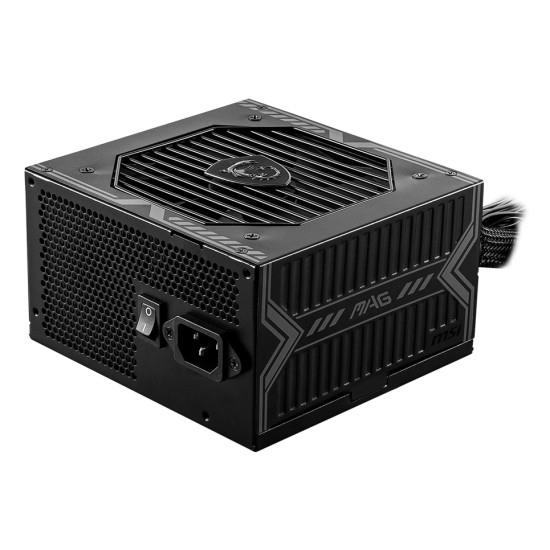

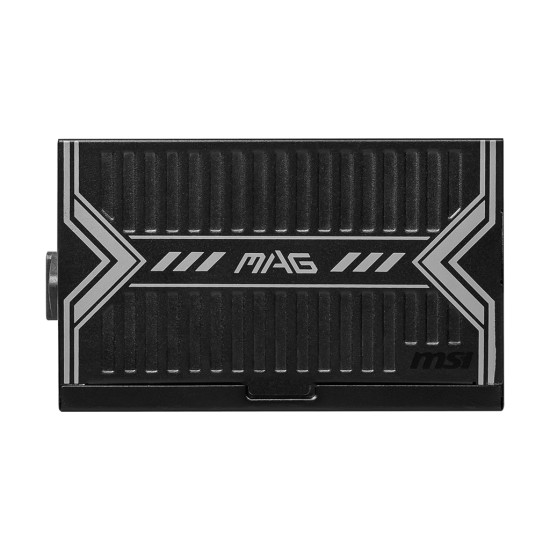

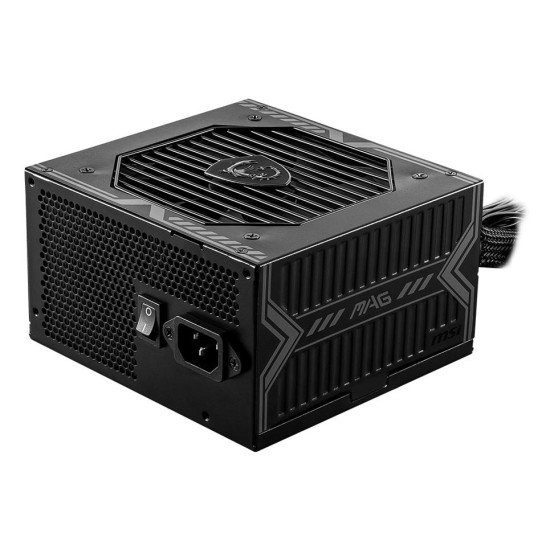

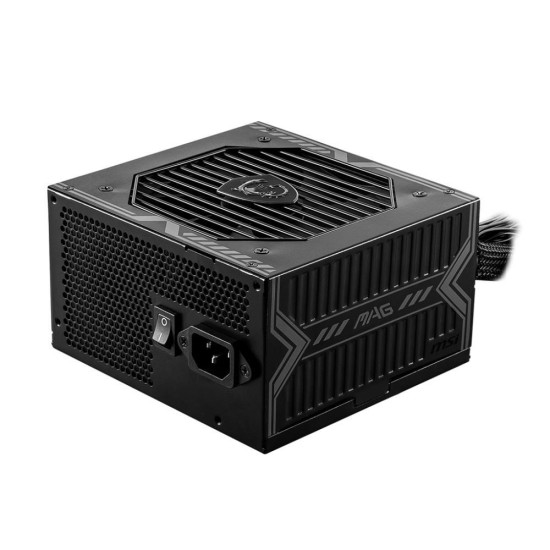

Power Supply|MSI|650 Watts|Efficiency 80 PLUS BRONZE|PFC Active|MAGA650BN

60.97€

Ex Tax: 50.39€

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Ports & interfaces
EPS power connector (4+4 pin)	Yes
CPU power connector (4+4 pin)	Yes
Motherboard power cable length	60 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	5
Peripheral (Molex) power connectors (4-pin)	2
EPS power connector (8-pin)	No
ATX Power connector (24-pin)	No
PCI Express power connectors (6+2 pin)	2
ATX power connector (20+4 pin)	Yes
Cabling type	Non-Modular
Floppy disk drive connector	No
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Design
Cooling type	Active
On/off switch	Yes
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Black
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Purpose	PC
Power
Total power	650 W
Maximum input current (@110V)	10 A
Maximum input current (@220V)	5 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	648 W
Max output current (+12V)	54 A
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	20 A
Efficiency	85%
Power protection features	Over current, Over power, Over voltage, Short circuit
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Logistics data
Harmonized System (HS) code	84733020
