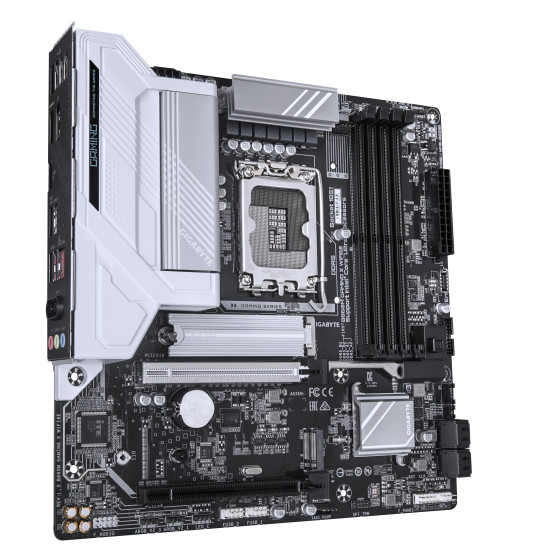

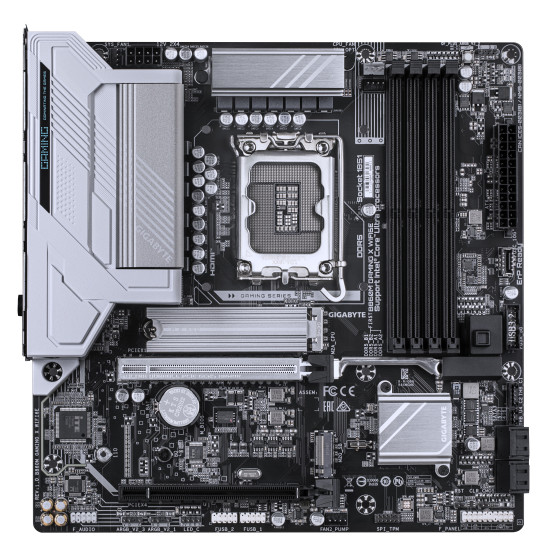

B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4

B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
188.05€
Ex Tax: 155.41€
  • Stock: 7
  • Model: B860M GAMING X WIFI6E 1.0
  • UPC: 471933186713
  • JAN: 4719331867133
  • MPN: B860M GAMING X WIFI6E
GIGABYTE
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Lithium weight per battery 0.07 g
Battery weight 3 g
Number of battery cells 1
Features
Component for PC
Windows operating systems supported Windows 11 x64
Product colour Dark brown
Audio output channels 7.1 channels
Cooling type Passive
Motherboard chipset Intel B860
Motherboard form factor micro ATX
Motherboard chipset family Intel
Audio chip Realtek ALC897
PC health monitoring Fan, Temperature, Voltage, Water cooling
Power source type ATX
Processor
Compatible processor series Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets LGA 1851
Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)
Storage controllers
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
RAID support Yes
Number of HDDs supported 4
RAID levels 0, 1, 5, 10
Number of storage drives supported 6
Technical details
Warranty period 3 year(s)
Weight & dimensions
Width 244 mm
Depth 244 mm
Height 35 mm
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
TPM connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
RGB LED pin header Yes
Number of water pump connectors 2
Number of chassis fan connectors 2
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Thunderbolt headers 2
Number of RGB LED pin headers 4
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 5600,6400,9200 MHz
Supported memory clock speed (max) 9200 MHz
Unbuffered memory Yes
Maximum internal memory per slot 64 GB
Memory channels Dual-channel
Memory slots type DIMM
Maximum internal memory 256 GB
Network
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Yes
Bluetooth Yes
LAN controller Realtek RTL8125
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
WLAN controller model Intel Wi-Fi 6E AX211
Bluetooth version 5.3
Packaging content
Screws included Yes
Antenna included Yes
Batteries included Yes
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Packaging data
Package width 270 mm
Package depth 268 mm
Package height 68 mm
Package weight 1.43 kg
Rear panel I/O ports
DisplayPort version 2.1
USB 2.0 ports quantity 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
USB4 Gen 2x2 ports quantity 1
DisplayPorts quantity 1
Headphone outputs 1
Microphone in Yes
Line-in Yes
WiFi-AP antenna jack 2
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 5.0
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Clear CMOS jumper Yes
Graphics
DirectX version 12.0
Parallel processing technology support Not supported
Maximum resolution 4096 x 2160 pixels
HDCP Yes
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Expansion slots
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 2
2nd M.2 largest key size 25110
2nd M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
PCI Express x16 (Gen 5.x) slots 1
1st M.2 highest PCI Express generation 5.0
Other features
Weight 1.23 kg
