263.51€
Ex Tax: 217.78€
  • Stock: 2
  • Model: 7350073733446
  • UPC: 735007373344
  • JAN: 7350073733446
  • MPN: 3446

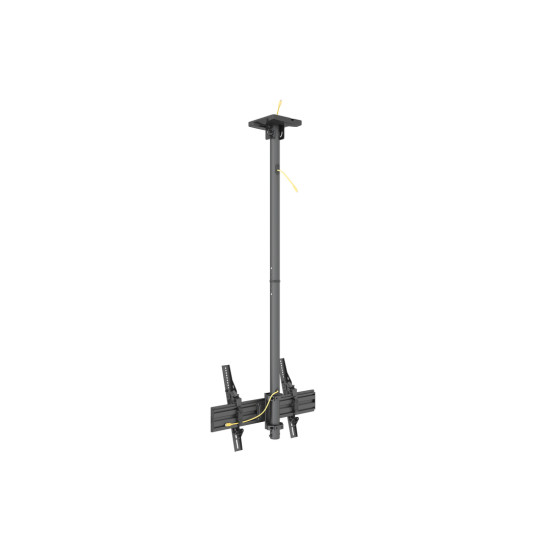

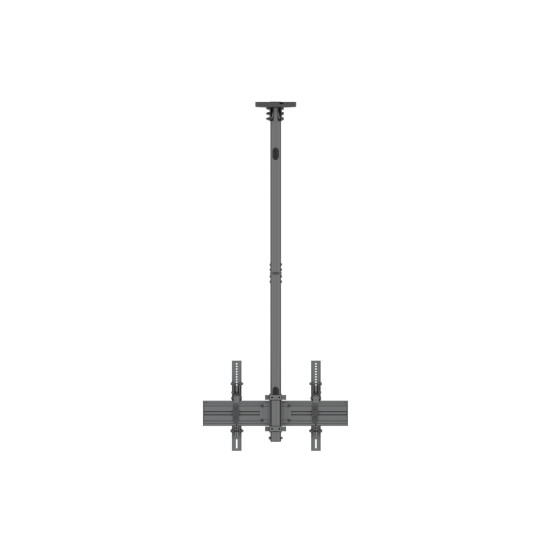

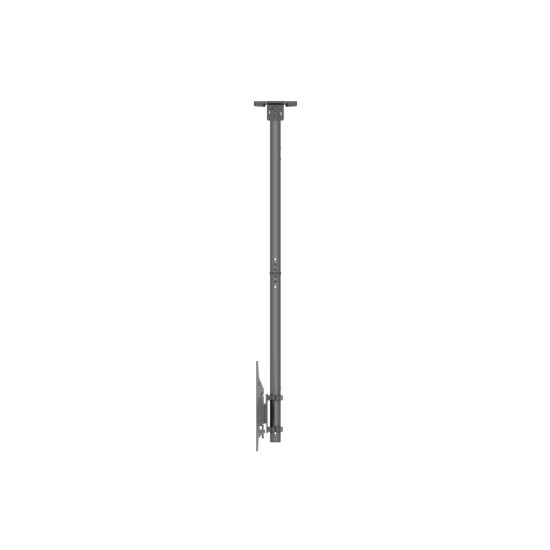

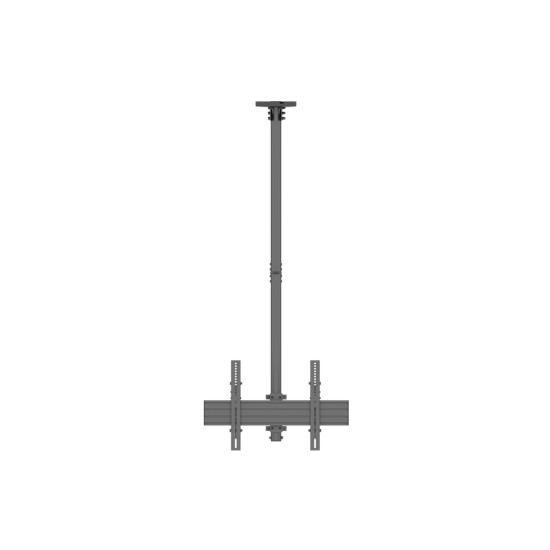

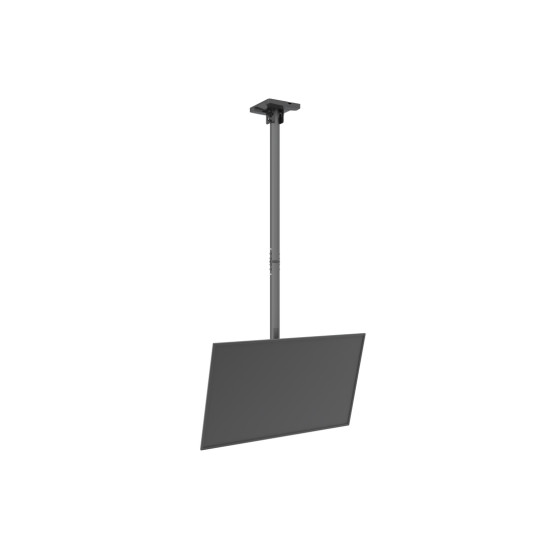

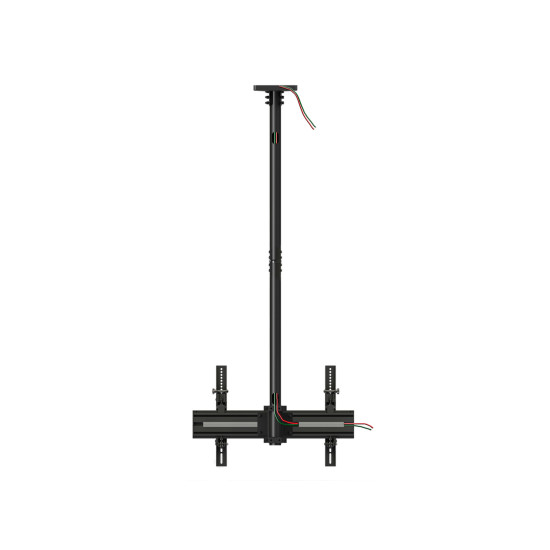

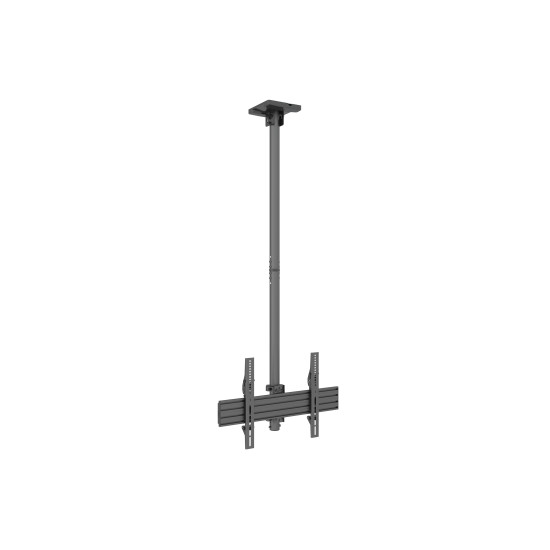

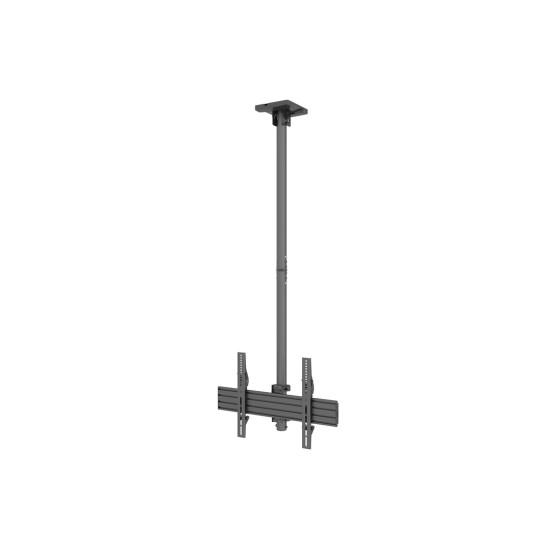

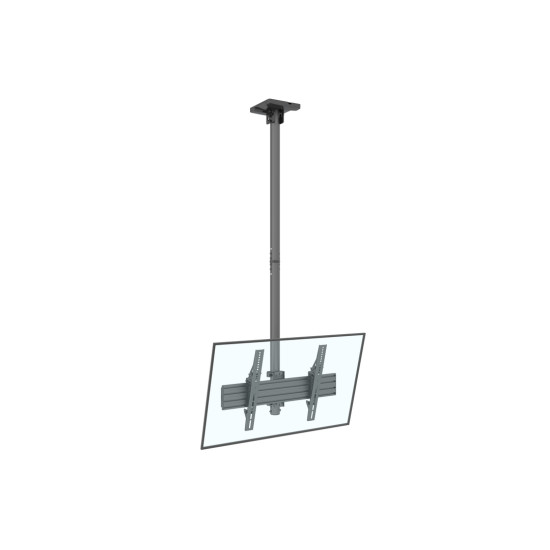

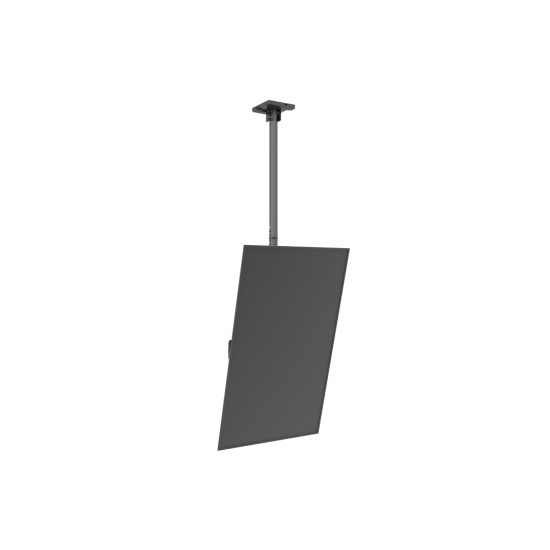

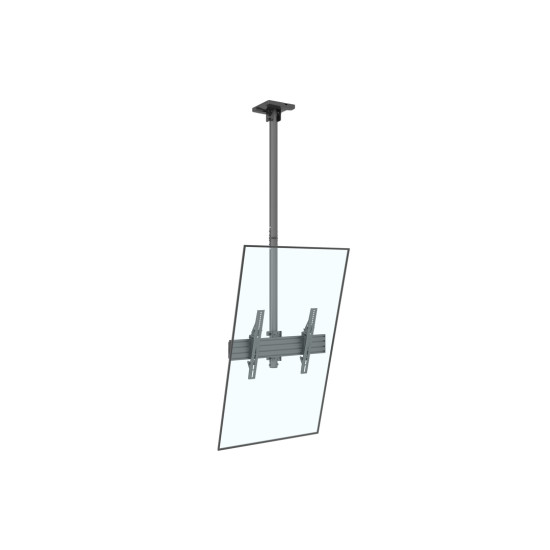

Multibrackets Pro Series M Ceiling Mount Pro MBC1U is our innovative - ready to be installed Single-Display Ceiling Mount.

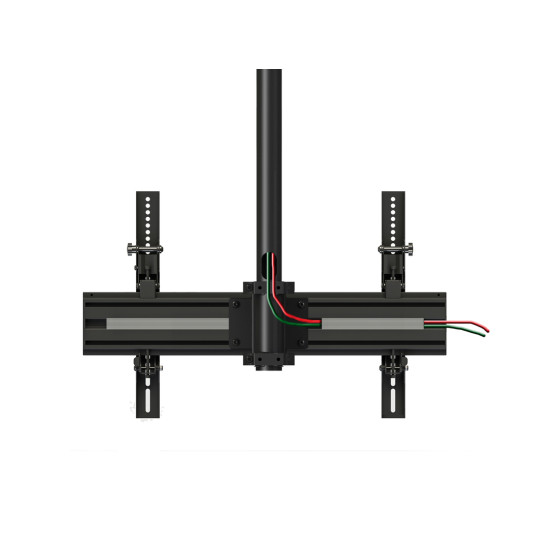

The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC1U is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.
With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.

Pro Series can be tailored to fit your exact needs.

Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

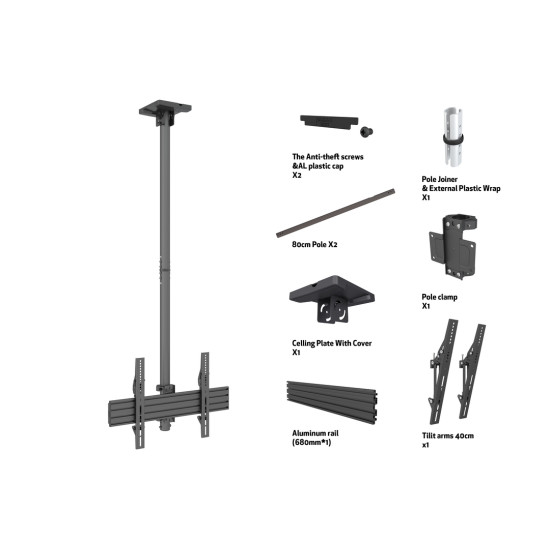

The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.

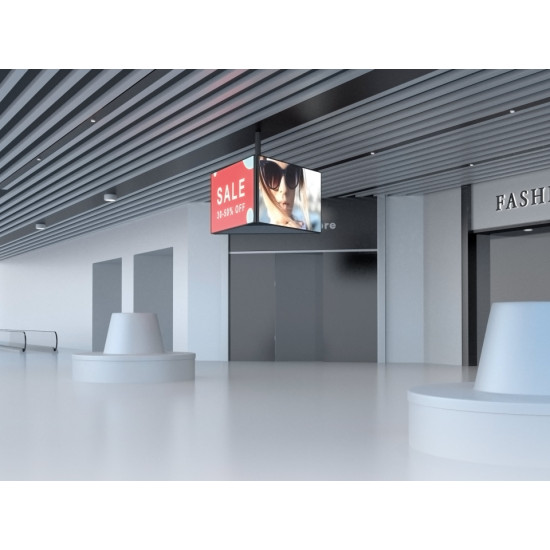

Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.
Mounting
Minimum screen size 101.6 cm (40")
Maximum weight capacity 50 kg
Maximum screen size 165.1 cm (65")

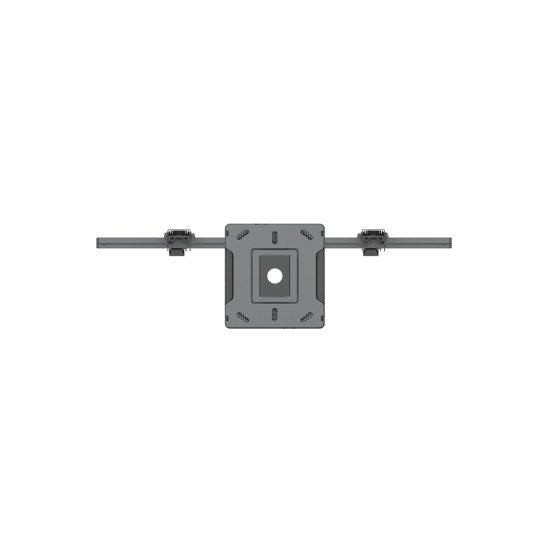

Minimum VESA mount 100 x 100 mm
Maximum VESA mount 800 x 600 mm
Panel mounting interface 100 x 100,600 x 400,800 x 600
Number of displays supported 1
Mounting type Ceiling

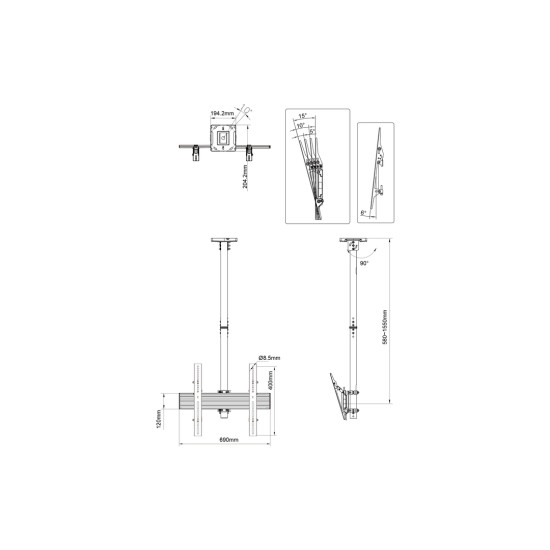

Weight & dimensions
Width 690 mm
Depth 200 mm
Height 1780 mm
Weight 8.5 kg
Design
Housing material Aluminium, Steel
Product colour Black
Certification CE
Ergonomics

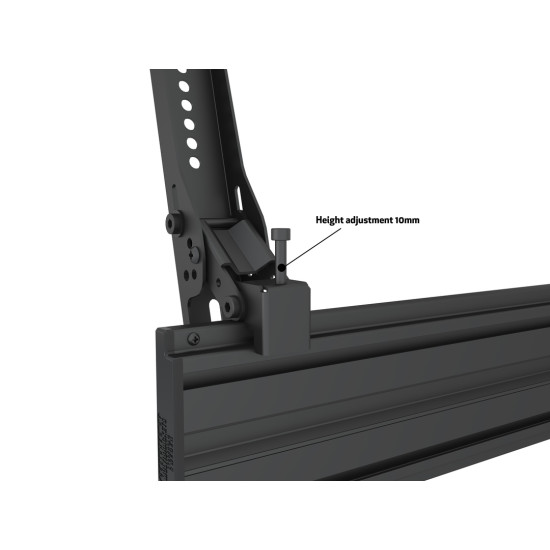

Height adjustment Yes
Height adjustment type Manual
Height adjustment range 580 - 1550 mm
Ceiling mounting tube length (min) 58 cm
Ceiling mounting tube length (max) 155 cm

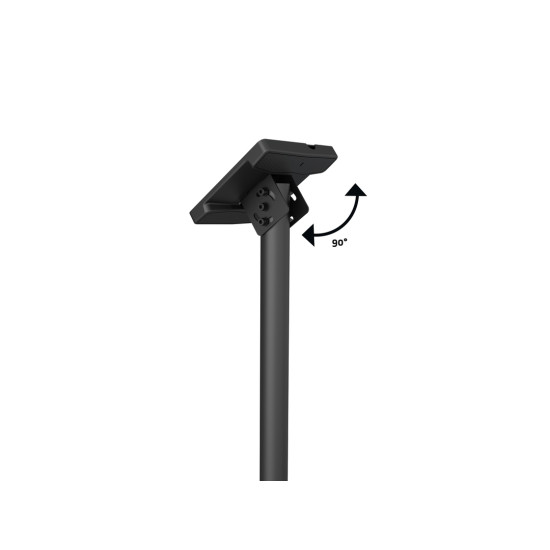

Tilt angle range 0 - 15°
Swivel angle 360°
Angle of rotation
Cable management Yes
Packaging data
Package width 200 mm
Package depth 820 mm
Package height 140 mm
Package weight 10.1 kg
Quantity per pack 1 pc(s)
Logistics data
Shipping (inner) case width 20 cm
Shipping (inner) case length 82 cm
Shipping (inner) case height 14 cm
Shipping (inner) case gross weight 10.1 kg
Products per shipping (inner) case 1 pc(s)
