APEX AIR GA-01B-M-OP ATX

Name: APEX AIR GA-01B-M-OP ATX
Brand: CHIEFTEC
SKU: 1412585
Price: 66.43 EUR
Availability: InStock

APEX AIR GA-01B-M-OP ATX

66.43€

Ex Tax: 54.90€

Stock: 50
Model: GA-01B-M-OP
UPC: 075326307853
JAN: 0753263078537
MPN: GA-01B-M-OP

CHIEFTEC

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

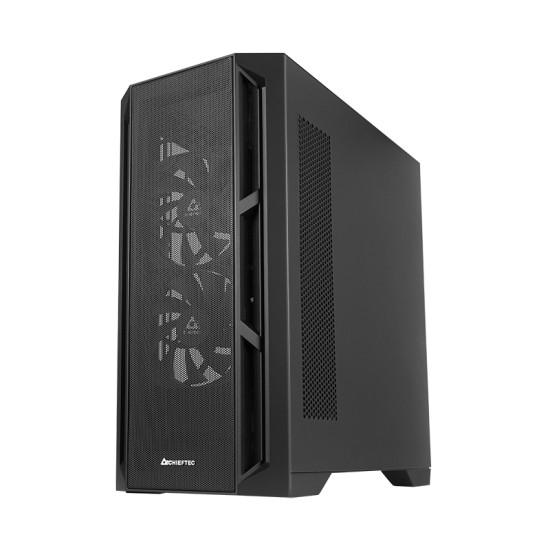

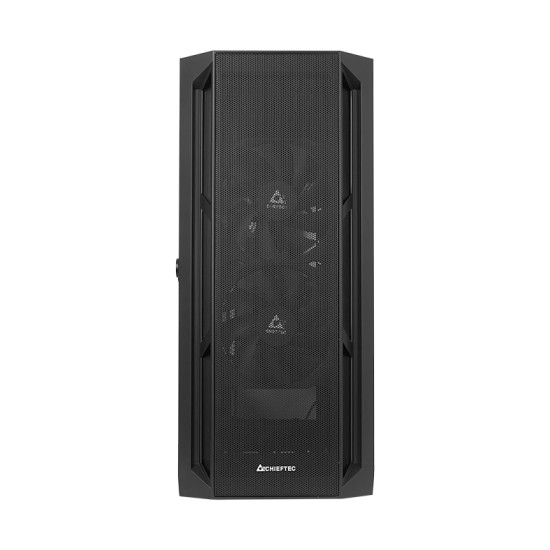

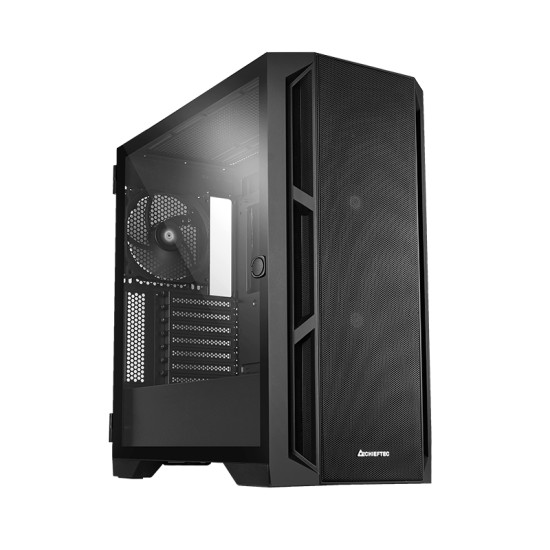

The CHIEFTEC APEX AIR presents an E-ATX chassis with a large mesh front panel and three pre-installed 140mm PWM fans that, in combination, are designed to enable high-airflow systems while maintaining low noise.

APEX AIR‘s 3x 140mm PWM fans are configured with 2 pre-installed in the front and 1 pre-installed in the rear, which creates a smooth airflow path from the front intake to rear exhaust.

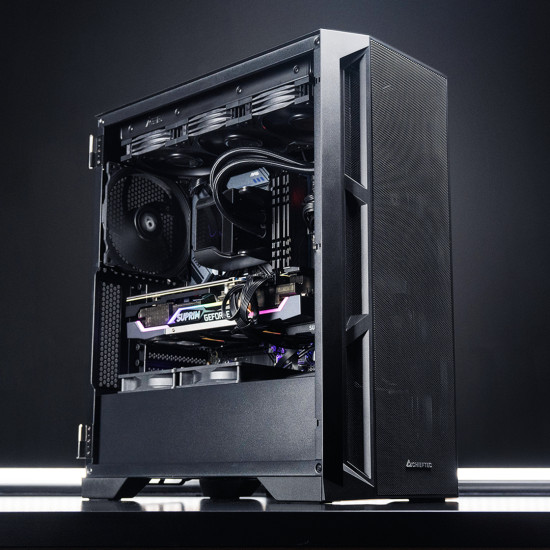

The case is generous with space, offering support for GPU‘s up to 400 mm in length, CPU coolers up to 175mm in height and radiator support up to 360mm on the top, as well as up to 420mm in the front.

CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.

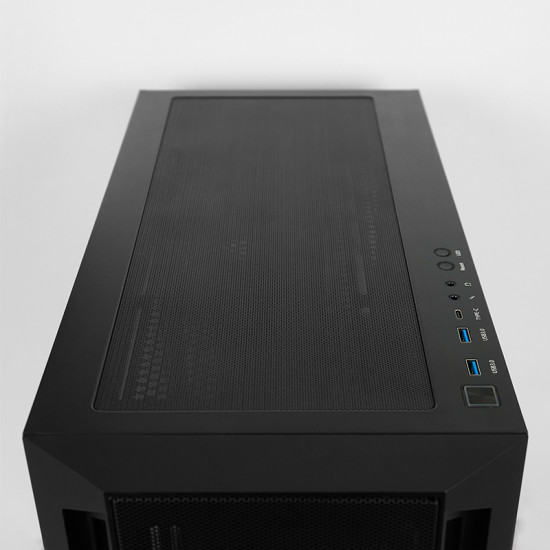

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Audio input	Yes
Audio output	Yes
Power supply
Power supply included	No
Power supply location	Bottom
Power supply shroud	Yes
Weight & dimensions
Width	230 mm
Depth	465 mm
Height	495 mm
Weight	7.3 kg
Material thickness	0.6 mm
Cooling
Side fans diameters supported	120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Front fans installed	2x 140 mm
Number of bottom fans supported (max)	2
Number of rear fans supported (max)	1
Bottom fans diameters supported	120 mm
Rear fans diameters supported	120,140 mm
Number of side fans supported (max)	2
Number of top fans supported (max)	3
Rear fans installed	1x 140 mm
Side radiator sizes supported	240 mm
Liquid cooling capability	Yes
Front radiator sizes supported	240,280,360,420 mm
Pulse-width modulation (PWM) support	Yes
Top fans installed	3x 120 mm, 2x 140 mm
Top radiator sizes supported	240,280,360 mm
Design
Suitable for	Gaming
Type	PC
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX

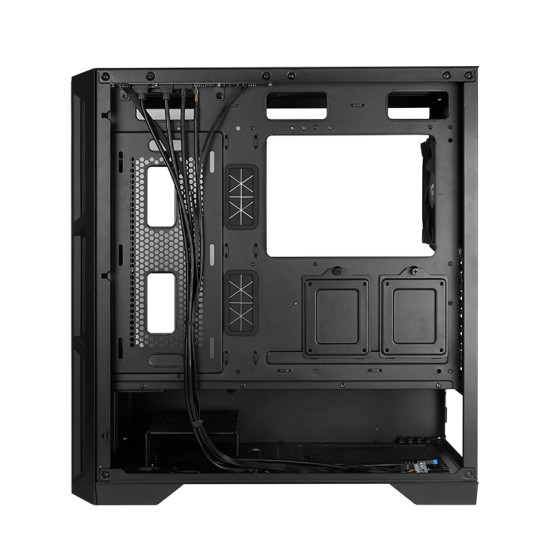

Cable management	Yes
Number of expansion slots	7
Number of internal 3.5" bays	2
Number of storage drives supported	5
Side window	Yes

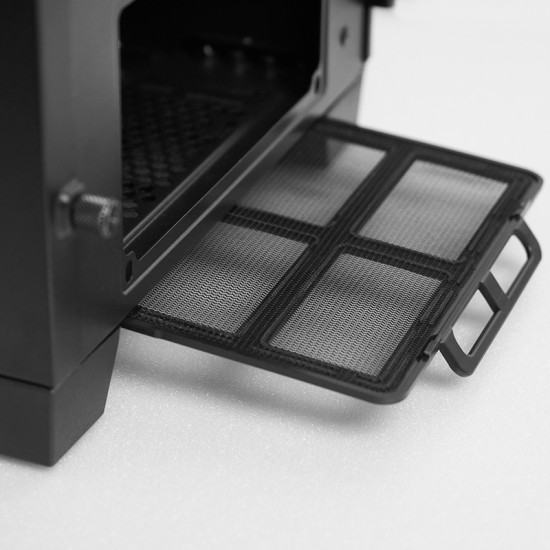

Anti-dust filter	Yes
Full-Height expansion slots	7
On/off button	Yes
Maximum CPU cooler height	17.5 cm
Reset button	Yes
Tempered glass panel(s)	Yes
Material	SPCC
Maximum graphics card length	40 cm
Maximum PSU length	22 cm
RGB control button	Yes
Illumination	No
Form factor	Midi Tower
Product colour	Black
Number of 3.5" bays	2
Number of 2.5" bays	2
Packaging data
Package weight	8.75 kg
Storage
Supported HDD sizes	2.5,3.5"

Tags: Computer Cases
