STC600

Name: STC600
Brand: COUGAR
Price: 59.27 EUR
Availability: InStock

STC600

59.27€

Ex Tax: 48.98€

Stock: 7
Model: STC600
MPN: STC600

COUGAR

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

COUGAR STC series is a decent PSU with 230V EU Standard efficiency certified with flawless power delivery. Built by reliability and low acoustic sound, it is the nicest choice for building up the PC system.

Active Power Factor Correction
High power conversion efficiency. PF value up to 99%, provides clean and reliable power

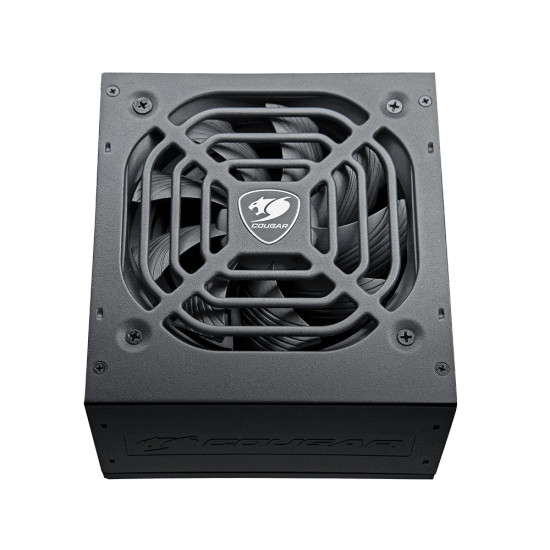

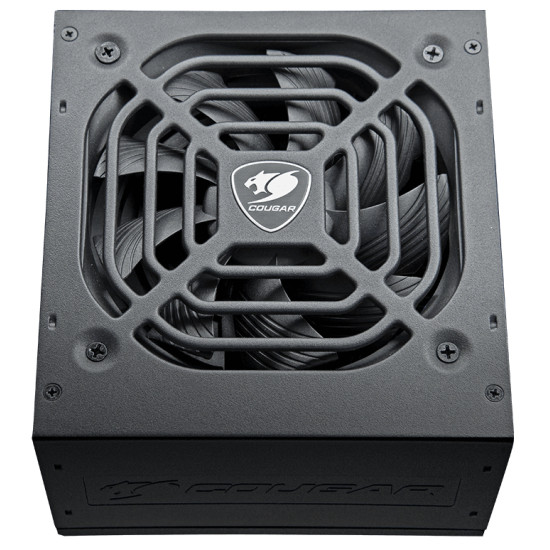

120mm Extreme Temperature Control
Using COUGAR’s exclusive 120mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads, helping you enjoy a quieter gaming experience.

Ports & interfaces
Motherboard power cable length	45 cm
Peripheral (Molex) power cable length	450 mm
Motherboard power connector	20+4 pin ATX
Number of PATA power connectors	2
SATA power cable length	450 mm
Number of SATA power connectors	6
CPU power cable length	65 cm
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	2
Cabling type	Non-Modular
Design
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Black
Performance
80 PLUS certification	80 PLUS
Purpose	PC
Power
Total power	600 W
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	588 W
Combined power (+5V)	130 W
Max output current (+3.3V)	18 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over voltage, Short circuit, Under voltage
AC input voltage	200 - 240 V
AC input frequency	50 Hz
Input current	5 A

Tags: Power Supply Units
