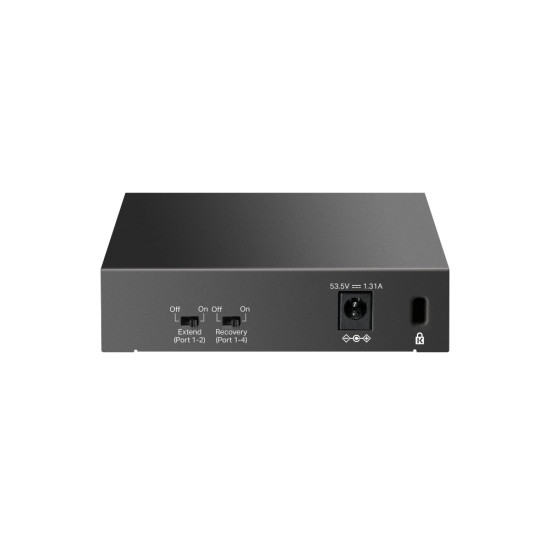

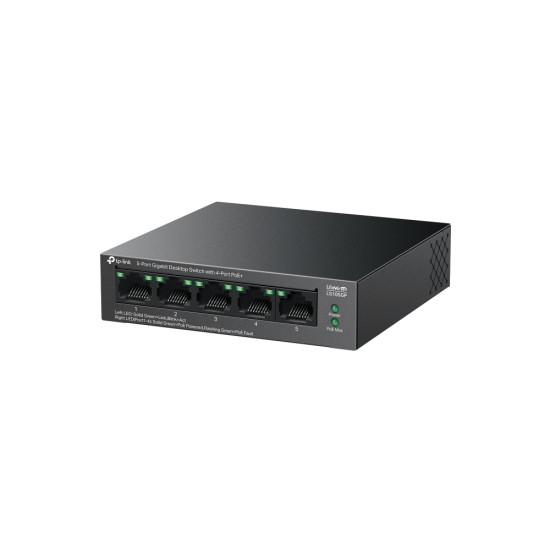

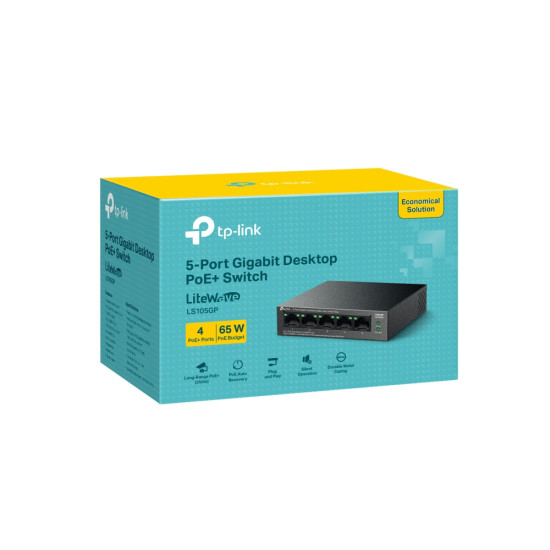

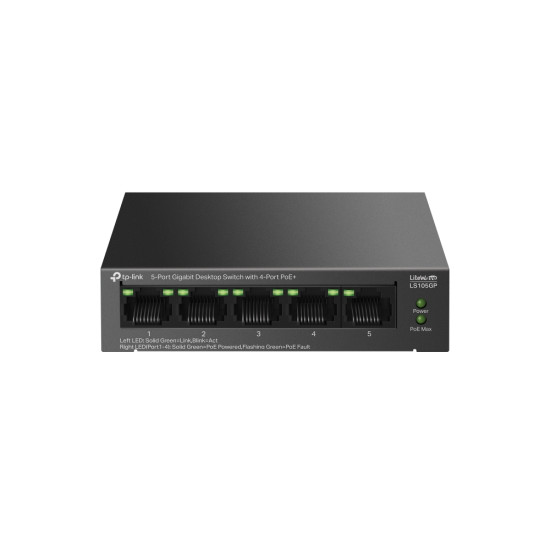

5-Port Gigabit Desktop Switch with 4-Port PoE+

5-Port Gigabit Desktop Switch with 4-Port PoE+
5-Port Gigabit Desktop Switch with 4-Port PoE+
5-Port Gigabit Desktop Switch with 4-Port PoE+
5-Port Gigabit Desktop Switch with 4-Port PoE+
5-Port Gigabit Desktop Switch with 4-Port PoE+
5-Port Gigabit Desktop Switch with 4-Port PoE+
5-Port Gigabit Desktop Switch with 4-Port PoE+
5-Port Gigabit Desktop Switch with 4-Port PoE+
5-Port Gigabit Desktop Switch with 4-Port PoE+
28.17€
Ex Tax: 23.28€
  • Stock: 7
  • Model: LS105GP
  • UPC: 489525250455
  • JAN: 4895252504552
  • MPN: LS105GP
TP-LINK
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Certificates
Certification CE, FCC, RoHS
Data transmission
Forwarding rate 7.44 Mpps
Switching capacity 10 Gbit/s
MAC address table 2000 entries
Store-and-forward Yes
Jumbo frames 16000
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 253.16 BTU/h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Weight & dimensions
Width 99.8 mm
Depth 98 mm
Height 25 mm
Design
Product colour Black
LED indicators Yes
Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Network
Networking standards IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support No
Auto MDI/MDI-X Yes
Cable types supported Cat3, Cat5e, Cat4, Cat5
Flow control support Yes
Auto-negotiation Yes
MAC address auto-learning supported Yes
MAC address auto-aging supported Yes
Security
IGMP snooping Yes
Packaging content
User guide Yes
Packaging data
Package type Box
Power
Power source DC/PoE
Power supply included Yes
DC input voltage 53.5 V
AC input voltage 220 V
AC input frequency 50 Hz
Power consumption (max) 74.46 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Total Power over Ethernet (PoE) budget 65 W
Power over Ethernet (PoE) power per port 30 W
Tags: Network Switches
