Champ Tower 3K

488.62€

Ex Tax: 403.82€

Stock: 3
Model: PPF24A1807
UPC: 471114048761
JAN: 4711140487618
MPN: PPF24A1807

FSP

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

FSP Champ is the high density version of double-conversion online UPS with an output power factor that reaches 0.9 and featured with ECO mode for energy saving.

FSP Champ is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller.

Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.

Battery
Battery capacity	9 Ah
Typical backup time at full load	3.5 min
Battery recharge time (90%)	4 h
Typical backup time at half load	9.8 min
Battery voltage	12 V
Number of battery cells	6
Features
UPS topology	Double-conversion (Online)
Output power capacity	3 kVA
Output power	2700 W
Waveform	Sine
Input operation voltage (min)	120 V
Input operation voltage (max)	300 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output frequency	47/63 Hz
Power factor	0.99
Output voltage regulation	1%
Crest factor	3:1
Response time	0 ms
Noise level	50 dB
Total Harmonic Distortion (THD) (linear load)	3%
Total Harmonic Distortion (THD) (non-linear load)	6%
Audible alarm(s)	Yes
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Operational conditions
Operating relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	0 - 40 °C

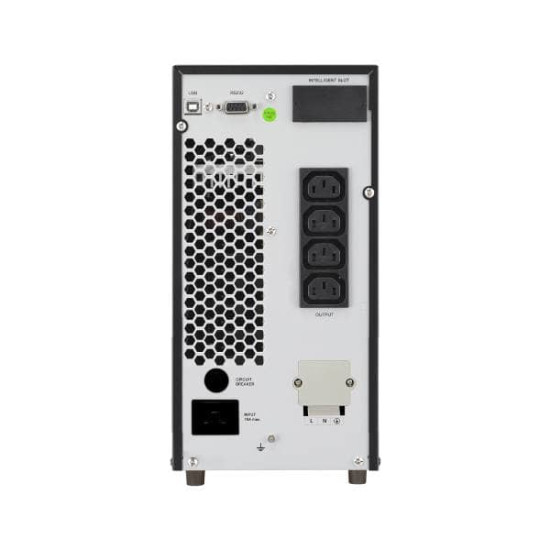

Ports & interfaces
Number of output IEC jumpers	4
RS-232 ports	1
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
USB port type	USB Type-B
Weight & dimensions
Width	190 mm
Depth	421 mm
Height	318 mm
Weight	27.6 kg
Design
Form factor	Tower
Product colour	Black
Display type	LCD
LED indicators	Yes
Control type	Buttons
Packaging content
Manual	Yes
Cables included	Input power cable, USB cable
Batteries included	Yes
Packaging data
Software CD	Yes
Logistics data
Harmonized System (HS) code	85078000
Other features
Packaging content	UPS, Power cable, USB cable, Software on CD, User manual
