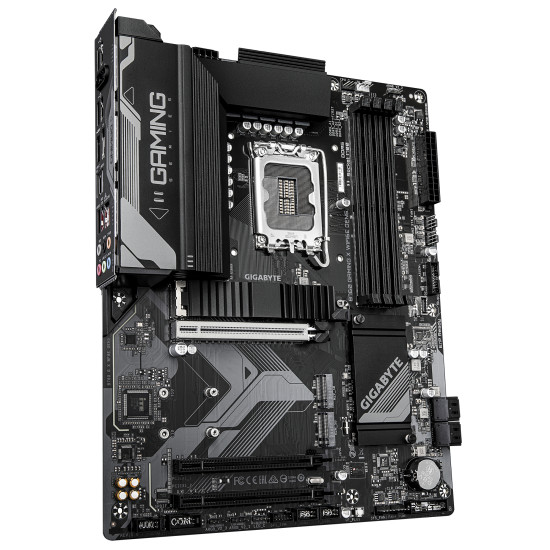

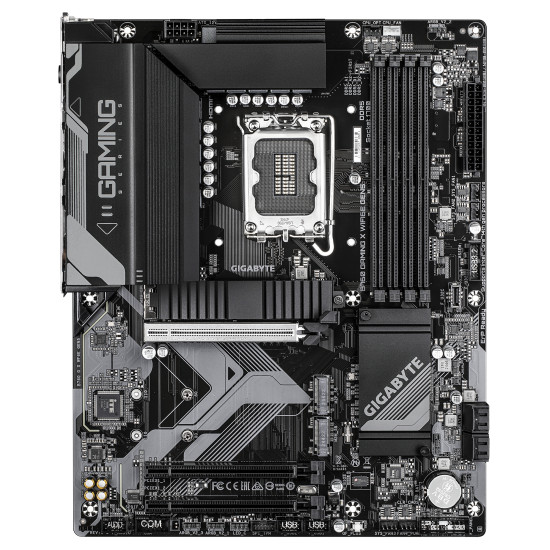

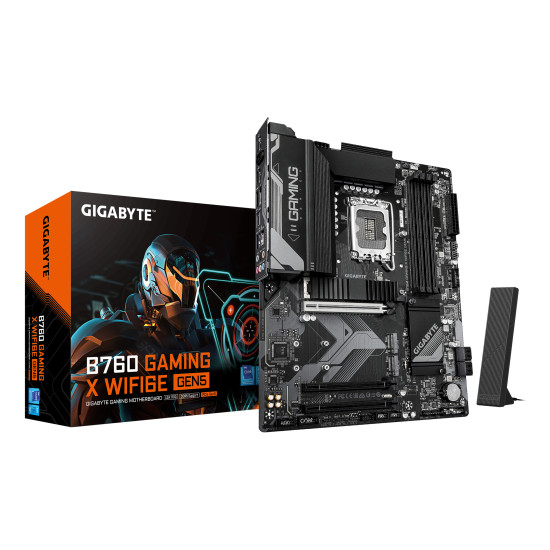

B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2

B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2
B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2
B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2
B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2
B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2
B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2
B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2
B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2
B760 GAMING X WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2
156.86€
Ex Tax: 129.64€
  • Stock: 22
  • Model: B760 G X WF6E GEN5
  • UPC: 471933187167
  • JAN: 4719331871673
  • MPN: B760 G X WF6E GEN5
GIGABYTE
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Lithium weight per battery 0.07 g
Battery weight 3 g
Number of battery cells 1
Features
Component for PC
Windows operating systems supported Windows 10 x64, Windows 11 x64
Product colour Dark brown
Audio output channels 7.1 channels
Cooling type Passive
Motherboard chipset Intel B760
Motherboard form factor ATX
Motherboard chipset family Intel
Audio chip Realtek ALC897
PC health monitoring Fan, Temperature, Voltage, Water cooling
Power source type ATX
Processor
Compatible processor series Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
Supported processor sockets LGA 1700
Processor manufacturer Intel
Processor socket LGA 1700
Storage controllers
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
Supported storage drive types HDD & SSD
RAID support Yes
Number of HDDs supported 4
RAID levels 0, 1, 5, 10
Number of storage drives supported 7
Technical details
Warranty period 3 year(s)
Weight & dimensions
Width 305 mm
Depth 244 mm
Height 35 mm
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
TPM connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Serial port headers 1
RGB LED pin header Yes
S/PDIF out connector Yes
Number of water pump connectors 2
Number of chassis fan connectors 4
Number of CPU fan connectors 2
12V power connector Yes
Number of EPS power connectors (8-pin) 1
Number of RGB LED pin headers 4
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 4
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 4400,4800,5200,5600 MHz
Supported memory clock speed (max) 5600 MHz
Unbuffered memory Yes
Maximum internal memory per slot 64 GB
Memory channels Dual-channel
Memory slots type DIMM
Maximum internal memory 256 GB
Network
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Yes
Bluetooth Yes
LAN controller Realtek RTL8125
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
WLAN controller model Intel Wi-Fi 6E AX210
Bluetooth version 5.3
Packaging content
Screws included Yes
Antenna included Yes
Batteries included Yes
Bundled software Norton® Internet Security (OEM version)
Packaging data
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Package weight 1.8 kg

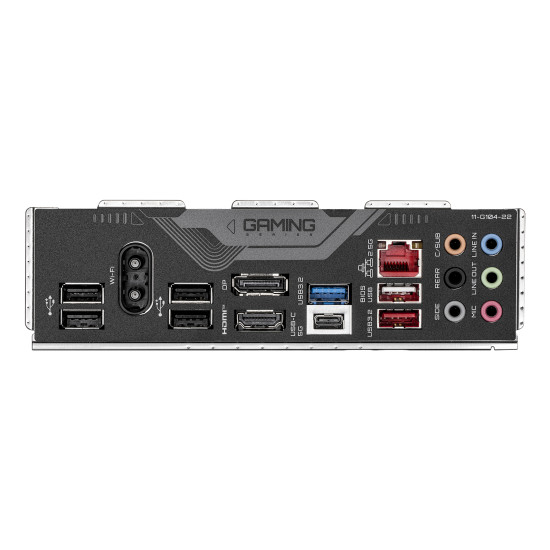

Rear panel I/O ports
DisplayPort version 1.2
USB 2.0 ports quantity 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Headphone outputs 1
Microphone in Yes
Line-in Yes
WiFi-AP antenna jack 2
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 5.0
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Clear CMOS jumper Yes
Graphics
DirectX version 12.0
Parallel processing technology support Not supported
Maximum resolution 4096 x 2304 pixels
HDCP Yes
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Expansion slots
PCI Express x16 (Gen 3.x) slots 2
Number of M.2 (M) slots 3
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 22110
3rd M.2 highest PCI Express generation 4.0
1st M.2 largest key size 22110
PCI Express x16 (Gen 5.x) slots 1
1st M.2 highest PCI Express generation 4.0
Other features
Weight 1.61 kg
