B650M D3HP AX Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 1

Name: B650M D3HP AX Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 1
Brand: GIGABYTE
SKU: 1446751
Price: 124.42 EUR
Availability: InStock

B650M D3HP AX Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 1

124.42€

Ex Tax: 102.83€

Stock: 50
Model: B650M D3HP AX 1.3
UPC: 471933185951
JAN: 4719331859510
MPN: B650M D3HP AX

GIGABYTE

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Lithium weight per battery	0.07 g
Battery weight	3 g
Number of battery cells	1
Features
Component for	PC
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Product colour	Brown
Audio output channels	7.1 channels
Cooling type	Passive
Motherboard chipset	AMD B650
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Audio chip	Realtek ALC897
PC health monitoring	Fan, Temperature, Voltage
Power source type	ATX
Processor
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Processor manufacturer	AMD
Processor socket	Socket AM5
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
RAID support	Yes
Number of HDDs supported	4
RAID levels	0, 1, 10
Number of storage drives supported	6
Technical details
Warranty period	3 year(s)
Weight & dimensions
Width	244 mm
Depth	244 mm
Height	35 mm
Internal I/O
USB 2.0 connectors	2
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
TPM connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
RGB LED pin header	Yes
Number of chassis fan connectors	2
Number of CPU fan connectors	1
12V power connector	Yes
Number of EPS power connectors (8-pin)	1
Number of RGB LED pin headers	3
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
ECC сompatibility	Non-ECC
Supported memory clock speeds	8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Supported memory clock speed (max)	8000 MHz
Unbuffered memory	Yes
Maximum internal memory per slot	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	256 GB
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Yes
Bluetooth	Yes
LAN controller	Realtek RTL8125
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Realtek RTL8852CE
Bluetooth version	5.3
Packaging content
Screws included	Yes
Antenna included	Yes
Batteries included	Yes
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Packaging data
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.2 kg

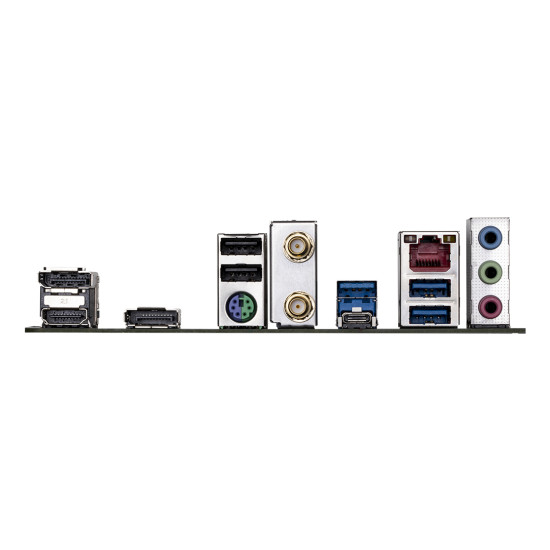

Rear panel I/O ports
DisplayPort version	1.4
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Headphone outputs	1
Microphone in	Yes
Line-in	Yes
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Clear CMOS jumper	Yes
Graphics
Discrete graphics support	Yes
DirectX version	12.0
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Logistics data
Country of origin	China
Products per shipping (inner) case	1 pc(s)
Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	2
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
1st M.2 largest key size	2580
1st M.2 highest PCI Express generation	4.0
