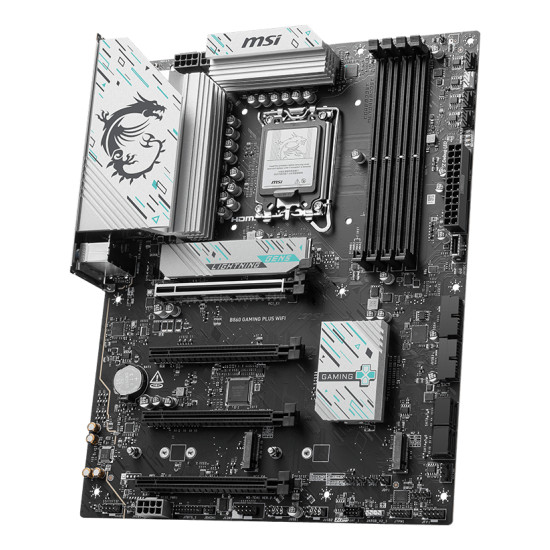

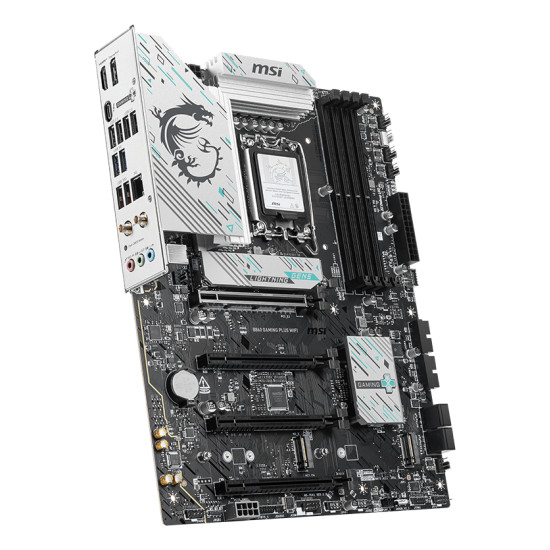

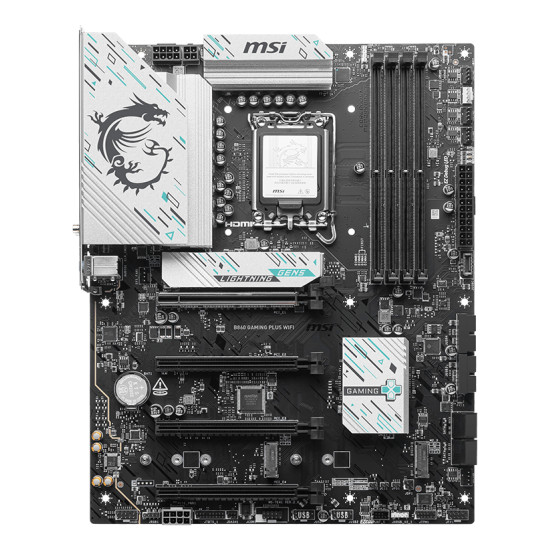

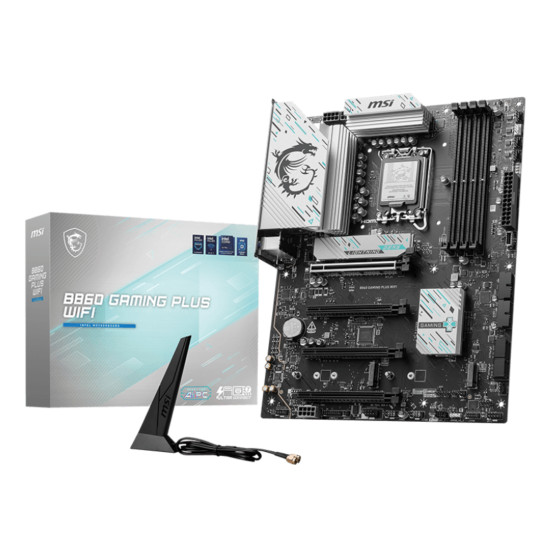

B860 GAMING PLUS WIFI

196.98€

Ex Tax: 162.79€

Stock: 10
Model: B860 GAMING PLUS WIFI
UPC: 471137728976
JAN: 4711377289764
MPN: B860 GAMING PLUS WIFI

MSI

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

The B860 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Thunderbolt 4 port, full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors.

Features
Component for	PC
Windows operating systems supported	Windows 11 x64
Product colour	Black
Audio output channels	7.1 channels
Motherboard chipset	Intel B860
Motherboard form factor	ATX
Motherboard chipset family	AMD
Audio chip	Realtek ALC897
Processor
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Processor manufacturer	Intel
Maximum internal memory supported by processor	256 GB
Processor socket	LGA 1851 (Socket V1)
Storage controllers
Supported storage drive interfaces	M.2, Micro SATA III
Supported storage drive types	HDD & SSD
RAID support	Yes
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
Weight & dimensions
Width	243.8 mm
Depth	304.8 mm
Internal I/O
USB 2.0 connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
CPU fan connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
RGB LED pin header	Yes
Total number of SATA connectors	4
Number of water pump connectors	1
Number of CPU fan connectors	1
Number of RGB LED pin headers	3
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
ECC сompatibility	Non-ECC
Supported memory clock speeds	4800,6400,8800 MHz
Supported memory clock speed (max)	8800 MHz
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	256 GB
Network
Ethernet LAN	Yes
Ethernet interface type	5 Gigabit Ethernet
Wi-Fi	Yes
Bluetooth	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Killer Wi-Fi 7 1750x
Bluetooth version	5.4

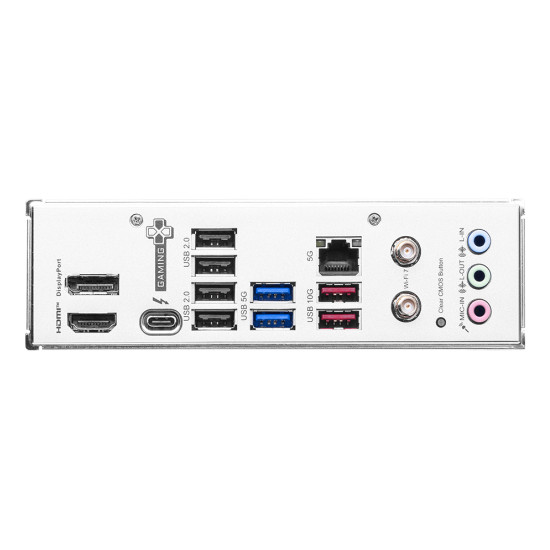

Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.5
System Management BIOS (SMBIOS) version	3.7
Expansion slots
PCI Express x16 (Gen 4.x) slots	3
Number of M.2 (M) slots	3
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
1st M.2 largest key size	2280
PCI Express x16 (Gen 5.x) slots	1
1st M.2 highest PCI Express generation	5.0

Tags: Motherboards
