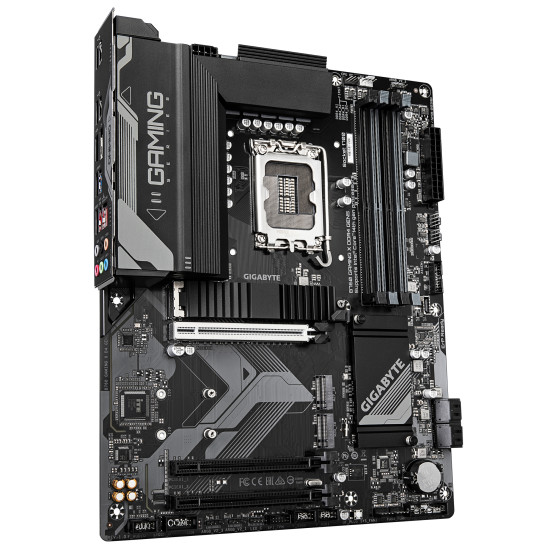

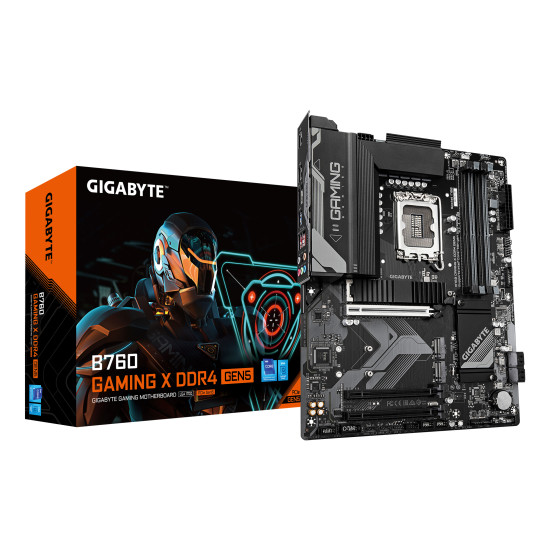

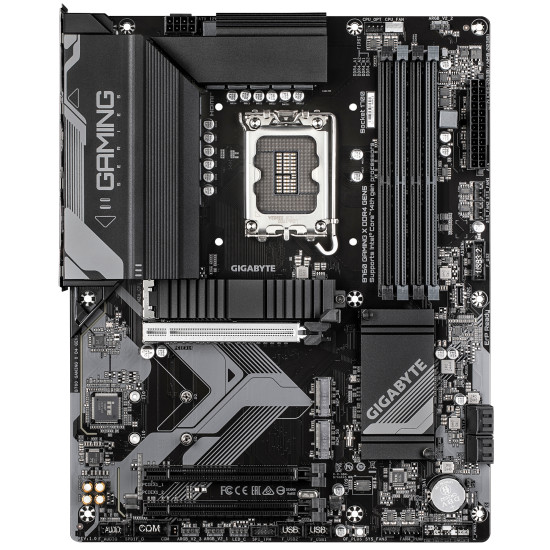

B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

Name: B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
Brand: GIGABYTE
SKU: 1454836
Price: 126.24 EUR
Availability: InStock

B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

126.24€

Ex Tax: 104.33€

Stock: 50
Model: B760 GAMING X D4 GEN5
UPC: 471933187344
JAN: 4719331873448
MPN: B760 GAMING X D4 GEN5

GIGABYTE

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Lithium weight per battery	0.07 g
Battery weight	3 g
Number of battery cells	1
Features
Component for	PC
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Product colour	Dark brown
Audio output channels	7.1 channels
Cooling type	Passive
Motherboard chipset	Intel B760
Motherboard form factor	ATX
Motherboard chipset family	Intel
Audio chip	Realtek ALC897
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Power source type	ATX
Processor
Compatible processor series	Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
Supported processor sockets	LGA 1700
Processor manufacturer	Intel
Maximum internal memory supported by processor	128 GB
Processor socket	LGA 1700
Storage controllers
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Supported storage drive types	HDD & SSD
RAID support	Yes
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
Technical details
Warranty period	3 year(s)
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	35 mm
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
TPM connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Serial port headers	1
RGB LED pin header	Yes
S/PDIF out connector	Yes
Number of water pump connectors	2
Number of chassis fan connectors	4
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of RGB LED pin headers	4
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	4
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Supported memory clock speed (max)	5333 MHz
Unbuffered memory	Yes
Maximum internal memory per slot	32 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum internal memory	128 GB
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	No
LAN controller	Realtek RTL8125
Packaging content
Screws included	Yes
Batteries included	Yes
Bundled software	Norton® Internet Security (OEM version)
Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.8 kg

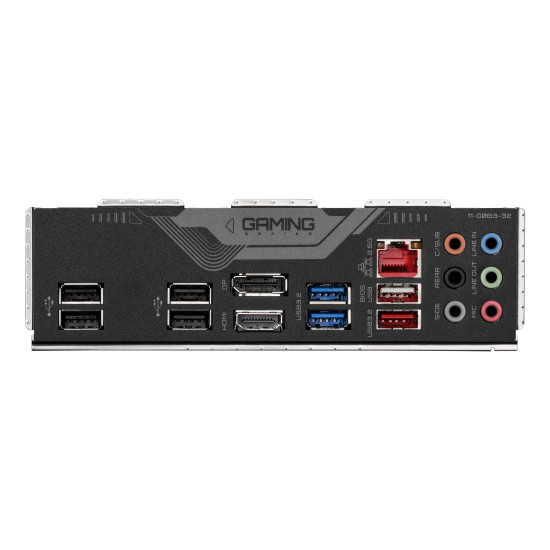

Rear panel I/O ports
DisplayPort version	1.2
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Headphone outputs	1
Line-in	Yes
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Clear CMOS jumper	Yes
Graphics
DirectX version	12.0
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
Logistics data
Country of origin	China
Products per shipping (inner) case	1 pc(s)
Expansion slots
PCI Express x16 (Gen 3.x) slots	2
Number of M.2 (M) slots	3
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
1st M.2 largest key size	22110
PCI Express x16 (Gen 5.x) slots	1
1st M.2 highest PCI Express generation	4.0
Other features
Weight	1.59 kg
