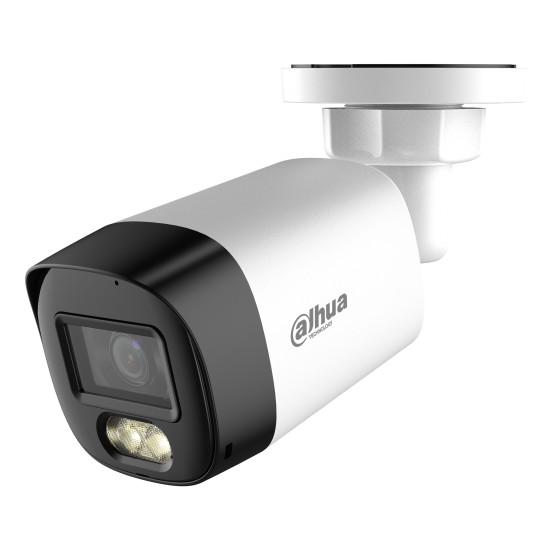

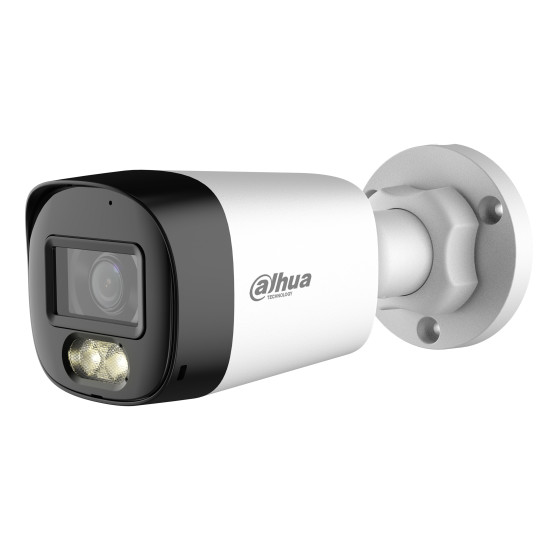

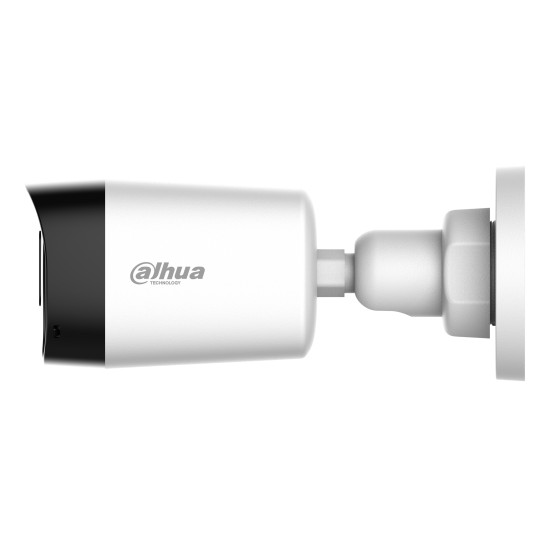

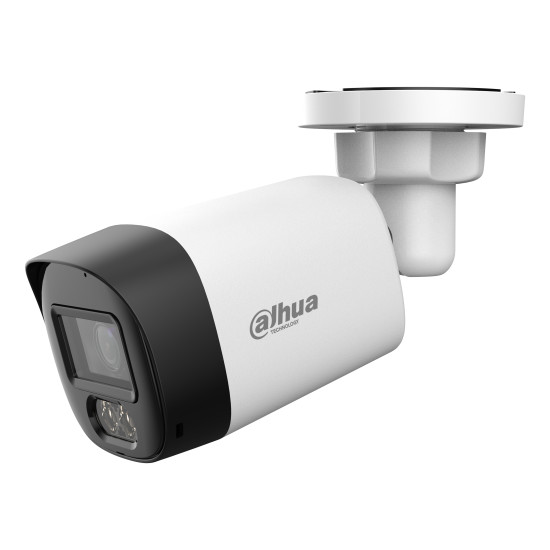

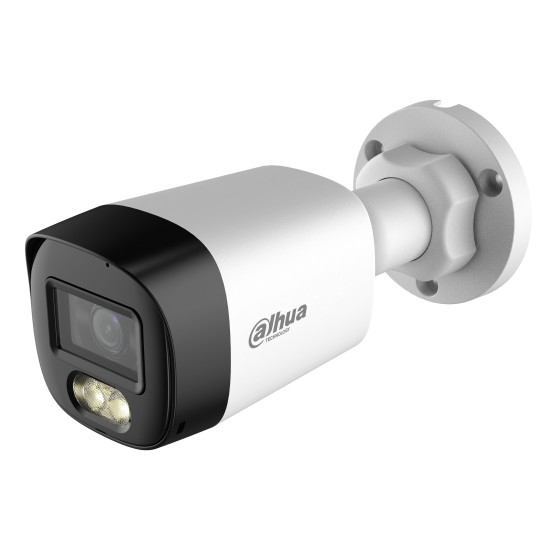

4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
67.76€
Ex Tax: 56.00€
- Stock: 5
- Model: HFW1801RL-IL-A-0280B-S3DIP
- MPN: HFW1801RL-IL-A-0280B-S3DIP
The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as fullcolor and starlight, providing various solutions for different scenarios.
Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.
Smart Light+
Equipped with advanced LEDs and beam processing technology, the camera effectively reduces interference of stray light, ensuring concentrated illumination within the lens's field of view. This allows the camera to easily produce clear images that reveal the fine details of targets even in low light conditions.
Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.
Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes. Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. HDCVI technology also supports PoC, which makes the camera easy and quick to install.
Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.
Smart Light+
Equipped with advanced LEDs and beam processing technology, the camera effectively reduces interference of stray light, ensuring concentrated illumination within the lens's field of view. This allows the camera to easily produce clear images that reveal the fine details of targets even in low light conditions.
Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.
Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes. Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. HDCVI technology also supports PoC, which makes the camera easy and quick to install.
| Audio | |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
| Camera | |
| White balance | Auto |
| Minimum illumination | 0 lx |
| Camera pan control | Yes |
| Angle of rotation | 360° |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 105.5° |
| Lens viewing angle, diagonal | 125.3° |
| Lens viewing angle, vertical | 56.5° |
| Tilt angle range | 0 - 90° |
| Camera shutter type | Electronic |
| Pan range | 0 - 360° |
| Camera shutter speed | 1/25 - 1/100000 s |
| Image sensor | |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Night vision | |
| Number of illumination LEDs | 2 |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR/White |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Ports & interfaces | |
| Interface | BNC |
| BNC output ports | 1 |
| Sustainability | |
| Compliance certificates | Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC), CE |
| Technical details | |
| Iris | Yes |
| Lens mount interface | M12 |
| Video | |
| Analog signal format system | NTSC, PAL |
| Supported graphics resolutions | 3840 x 2160, 960 x 576, 960 x 480 |
| Supported video modes | 2160p, 576p, 480p |
| Maximum resolution | 3840 x 2160 pixels |
| Gain control type | Auto |
| Frame rate | 15 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
| Weight & dimensions | |
| Width | 70 mm |
| Height | 69.7 mm |
| Weight | 170 g |
| Length | 161.6 mm |
| Design | |
| Housing material | Plastic |
| Mounting type | Ceiling/Wall/Pole |
| Protection features | Corrosion resistant, Waterproof |
| International Protection (IP) code | IP67 |
| Form factor | Box |
| Product colour | White, Black |
| Network | |
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
| Security | |
| Mirror | Yes |
| Lens system | |
| Fixed focal length | 2.8 mm |
| Closest focusing distance | 1.3 m |
| Maximum aperture number | 2 |
| Detect distance | 88 m |
| Observe distance | 35.2 m |
| Recognize distance | 17.6 m |
| Fixed focus | Yes |
| Identify distance | 8.8 m |
| Packaging content | |
| Number of cameras | 1 |
| Packaging data | |
| Package weight | 240 g |
| Performance | |
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Power | |
| DC output voltage | 12 |
| Power source type | DC |
| Power consumption (max) | 4.1 W |
| Storage | |
| Built-in HDD | No |
