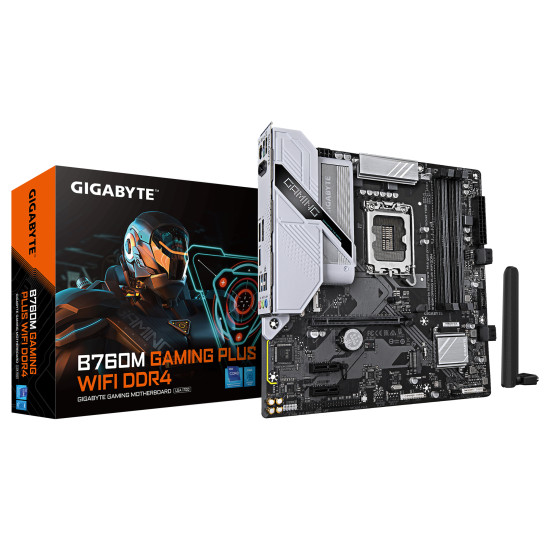

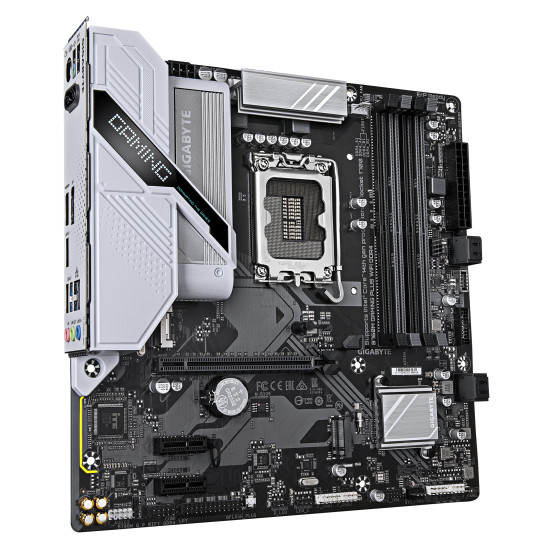

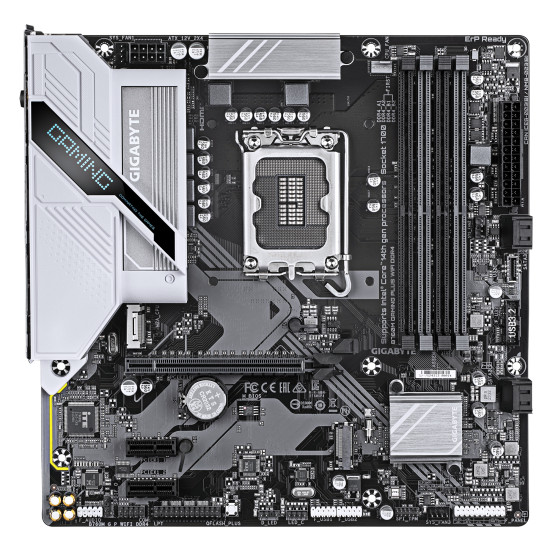

B760M GAMING PLUS WIFI DDR4
B760M GAMING PLUS WIFI DDR4
114.62€
Ex Tax: 94.73€
- Stock: 27
- Model: B760M GAMING PLUS WIFI DDR4 (REV. 1.1)
- MPN: B760M GAMING PLUS WIFI DDR4 (REV. 1.1)
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Battery | |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Features | |
| Component for | PC |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Product colour | Grey |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC897 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Processor | |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® |
| Supported processor sockets | LGA 1700 |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 128 GB |
| Processor socket | LGA 1700 |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Serial port headers | 1 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Parallel connector | Yes |
| Number of RGB LED pin headers | 2 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 32 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Maximum internal memory | 128 GB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
| Bluetooth version | 5.3 |
| Packaging content | |
| Screws included | Yes |
| Antenna included | Yes |
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.2 kg |

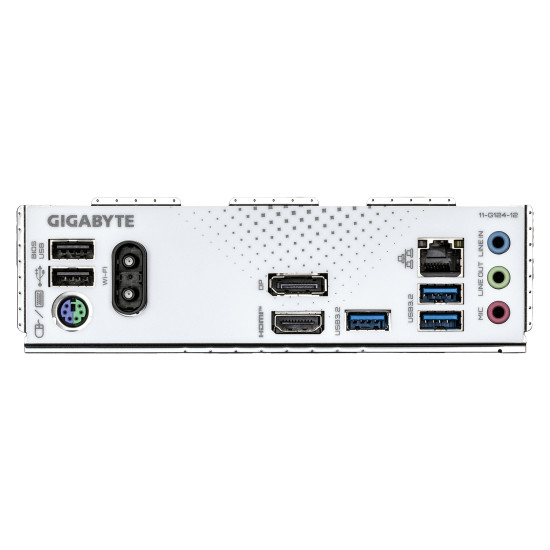

| Rear panel I/O ports | |
| DisplayPort version | 1.2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| WiFi-AP antenna jack | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | Yes |
| Graphics | |
| DirectX version | 12.0 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| Other features | |
| Weight | 1.1 kg |
