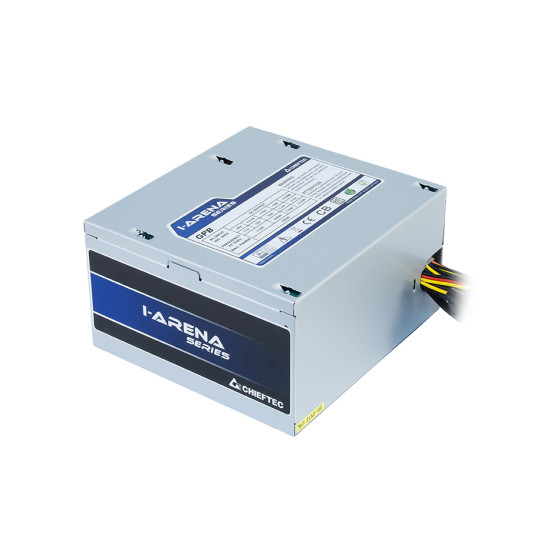

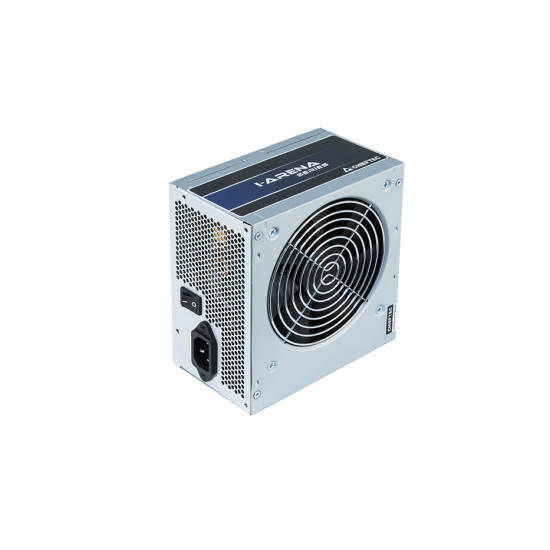

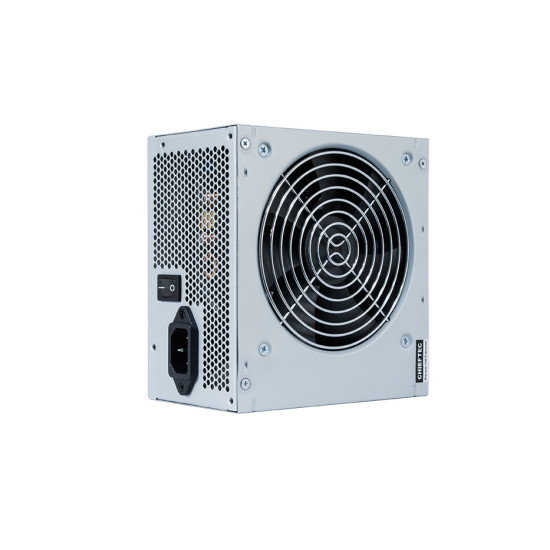

CASE PSU ATX 500W/GPB-500S CHIEFTEC

Name: CASE PSU ATX 500W/GPB-500S CHIEFTEC
Brand: CHIEFTEC
SKU: 1207580
Price: 37.18 EUR
Availability: InStock

37.18€

Ex Tax: 30.73€

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

ATX 2.3 | 500 Watts | Cooling System 12cm fan | PFC Active

Certificates
Compliance certificates	RoHS
Ports & interfaces
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	5
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	1
Cabling type	Non-Modular
Weight & dimensions
Width	140 mm
Depth	150 mm
Height	87 mm
Design
Cooling type	Active
On/off switch	Yes
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Silver
Fan location	Top
Packaging data
Manual	Yes
Package type	Box
Performance
Power supply unit (PSU) form factor	PS/2
ATX version	2.3
Purpose	PC
Power
Total power	500 W
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	456 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	18 A
Max output current (+12V1)	38 A
Max output current (+5V)	17 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Efficiency	85%
Power protection features	Over voltage, Overload, Short circuit, Under voltage
AC input voltage	200 - 240 V
AC input frequency	47 - 63 Hz
Input current	4 A
Logistics data
Harmonized System (HS) code	84733020
Other features
Warranty card	Yes
