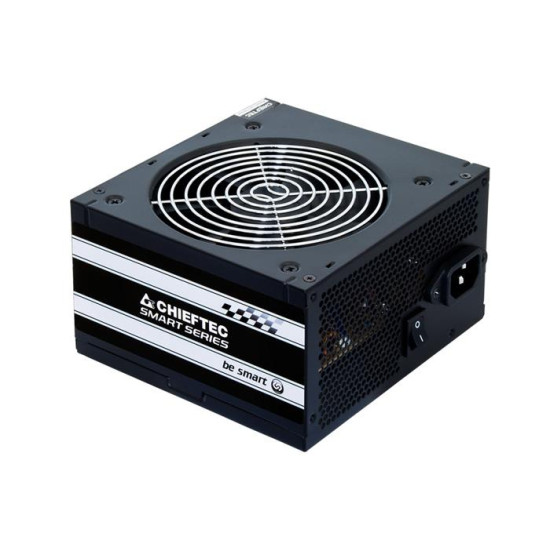

CASE PSU ATX 400W/GPS-400A8 CHIEFTEC

Name: CASE PSU ATX 400W/GPS-400A8 CHIEFTEC
Brand: CHIEFTEC
SKU: 1207532
Price: 36.31 EUR
Availability: InStock

36.31€

Ex Tax: 30.01€

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Certificates
Compliance certificates	RoHS
Ports & interfaces
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	3
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	1
CPU P4 connector (4-pin)	1
Cabling type	Non-Modular
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	87 mm
Design
Fan diameter	12 cm
Product colour	Black
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	No
ATX version	2.3
Purpose	PC
Power
Total power	400 W
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	22 A
Max output current (+12V1)	18 A
Max output current (+12V2)	17 A
Max output current (+5V)	18 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over voltage, Overload, Short circuit, Under voltage
AC input voltage	230 V
AC input frequency	47 - 63 Hz
Input current	4 A

Tags: Power Supply Units
